Harley-Davidson Fat Boy 2025 – Iconic Cruiser Motorcycle
Specifications
|
Specification |
Details |
|
Engine Type |
Milwaukee-Eight 117 Custom, V-Twin, air/oil-cooled, pushrod, 4 valves/cylinder |
|
Displacement |
1917 cc (117 cu-in) |
|
Max Power |
103 hp (77 kW) @ 5020 rpm |
|
Max Torque |
171 Nm (126 lb-ft) @ 3500 rpm |
|
Bore x Stroke |
103.5 mm x 114.3 mm |
|
Compression Ratio |
10.2:1 |
|
Fuel System |
Electronic sequential port fuel injection, high-flow 2-into-2 exhaust |
|
Transmission |
6-speed gearbox |
|
Final Drive |
Belt |
|
Wet Weight |
315 kg (694 lbs) |
|
Fuel Capacity |
18.9 liters (5.0 gallons) |
|
Top Speed |
193 km/h (120 mph, estimated) |
|
Mileage |
5.5 liters/100 km (43 mpg, claimed) |
|
Warranty |
2 years unlimited mileage |
|
Price (US, 2025) |
$22,599 (Billiard Gray) (Year-2025) |
|
Price (EU, estimated) |
€21,469(Year-2025) |
|
Price (UK, estimated) |
£19,209(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Steel tubular double-cradle, Softail chassis |
|
Rake |
30° |
|
Trail |
171 mm (6.7 in) |
|
Transmission |
6-speed gearbox, wet multi-plate clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
49 mm telescopic fork, dual bending valve, 130 mm (5.1 in) travel |
|
Rear Suspension |
Hidden monoshock, hydraulic preload adjustable, 56 mm (2.2 in) travel |
|
Front Brakes |
Single 300 mm disc, 4-piston caliper, C-ABS |
|
Rear Brakes |
Single 292 mm disc, 2-piston caliper, C-ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Machined aluminum Lakester, 18-inch front and rear |
|
Front Tyre |
Michelin Scorcher 11 160/70R18 |
|
Rear Tyre |
Michelin Scorcher 11 240/40R18 |
Components & Features
|
Specification |
Details |
|
Lighting |
7-inch LED headlamp, LED tail/stop, turn signals, signature headlamp nacelle |
|
Instrument Cluster |
5-inch analog speedometer with LCD digital display |
|
Seat |
Dual seat with pillion, 676 mm (26.6 in) height laden |
|
Features |
3 ride modes (Road, Rain, Sport), C-ABS, C-TCS, C-DSCS, TPMS, cruise control, USB-C port, heated gear connectors, floorboards, Euro V+ compliant |
Available Colors
|
Specification |
Details |
|
Colors (2025) |

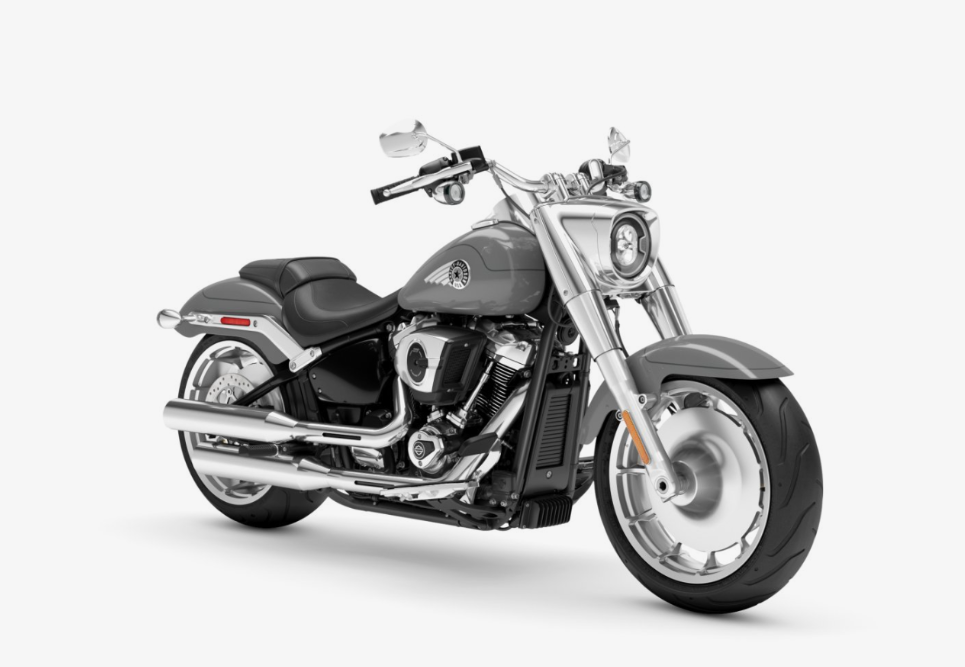

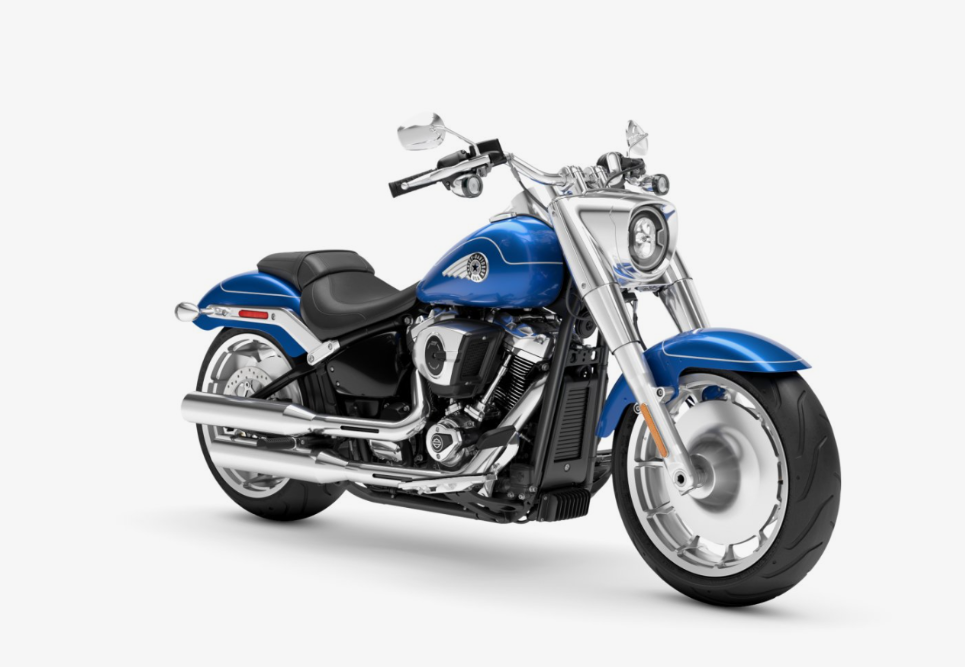

Billiard Gray, Vivid Black, Blue Burst, Whiskey Fire/Vivid Black |
