Harley-Davidson Tri-Glide Ultra-Try 2025 – Ultimate Touring Trike
Specifications
|
Specification |
Details |
|
Engine Type |
Twin-Cooled Milwaukee-Eight 114 V-Twin, air/oil-cooled, ESPFI |
|
Displacement |
1868 cc (114 cu. in.) |
|
Power |
90 hp @ 4750 rpm |
|
Torque |
161 Nm (119 ft-lb) @ 2750 rpm |
|
Transmission |
6-speed Cruise Drive, belt drive |
|
Brakes |
Front: Dual 300 mm disc, 4-piston caliper, ABS; Rear: 270 mm disc, 1-piston caliper, ABS, parking brake |
|
Suspension |
Front: 49 mm Showa forks, dual bending valve, 117 mm travel; Rear: Emulsion shocks, single-knob preload, 76 mm travel |
|
Wheel Size |
Front: 16-inch; Rear: 15-inch |
|
Tyres |
Front: 130/90B16 72H; Rear: 205/65R15 92T (Dunlop Harley-Davidson) |
|
Weight |
547 kg (1206 lbs, as shipped) |
|
Dimensions (LxWxH) |
2670 x 1390 x 1430 mm |
|
Wheelbase |
1670 mm (65.7 in.) |
|
Ground Clearance |
125 mm (4.9 in.) |
|
Seat Height |
688 mm (27.1 in., laden) |
|
Fuel Capacity |
22.7 liters (6 gallons) |
|
Top Speed |
165 km/h (102 mph, est.) |
|
Acceleration (0-100 km/h) |
6.0 seconds (est.) |
|
Price |
$37,999 USD (MSRP, base, 2025 USA) (Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Mild steel, tubular frame, square-section backbone |
|
Engine Type |
Twin-Cooled Milwaukee-Eight 114 V-Twin, air/oil-cooled |
|
Drivetrain |
Belt drive, chain-type primary |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
49 mm Showa forks, dual bending valve, 117 mm travel |
|
Rear Suspension |
Emulsion shocks, single-knob preload, 76 mm travel |
|
Front Brake |
Dual 300 mm disc, 4-piston caliper, ABS |
|
Rear Brake |
270 mm disc, 1-piston caliper, ABS, parking brake |
|
Steering |
Conventional |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Black, 7-spoke cast aluminum |
|
Tyres |
Front: 130/90B16 72H; Rear: 205/65R15 92T (Dunlop Harley-Davidson) |
|
Wheel Size |
Front: 16-inch; Rear: 15-inch |
Components & Features
|
Specification |
Details |
|
Seat |
Two-up touring seat, 688 mm height, heated/cooled, adjustable |
|
Handlebar |
Standard touring, adjustable height/reach |
|
Instrument Cluster |
6.5-inch TFT touchscreen, BOOM! Box GTS, navigation, Bluetooth, voice commands |
|
Features |
Batwing fairing, tour-pak (4.5 cu. ft.), trunk (2 cu ft.), electric reverse, heated grips, cruise control, LED lighting, premium audio (4 speakers, 2-up luggage rack |
Available Colors
|
Specification |
Details |
|
Colors |

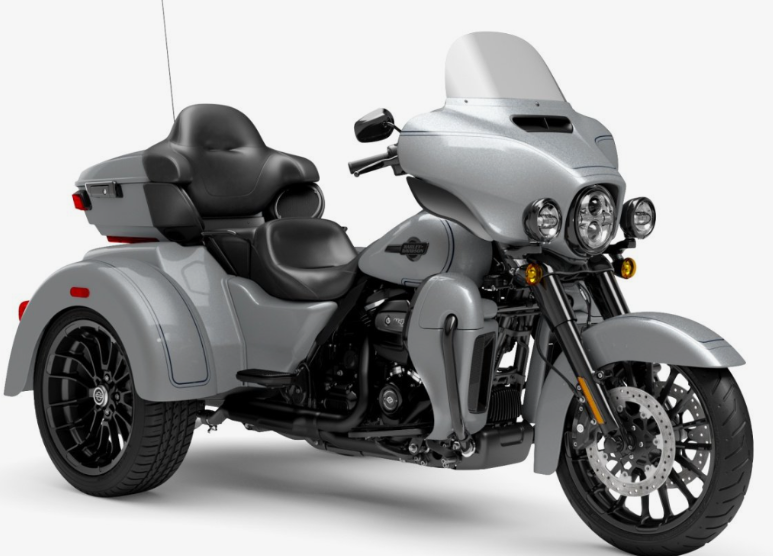

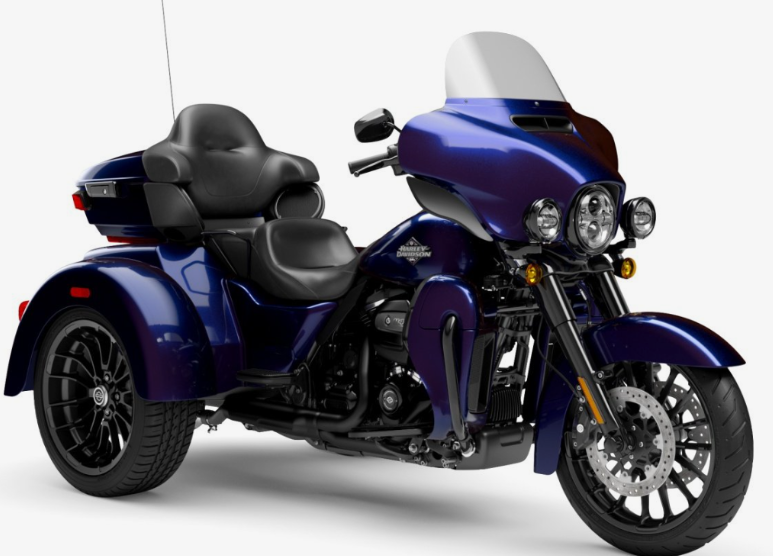

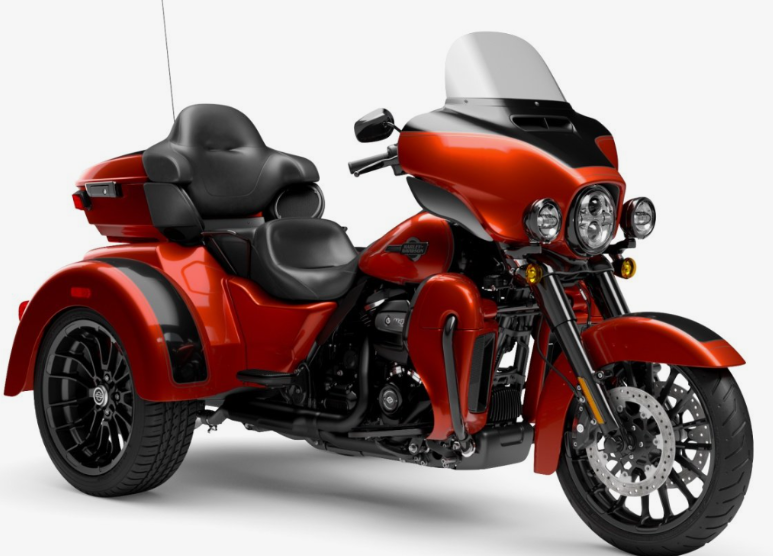

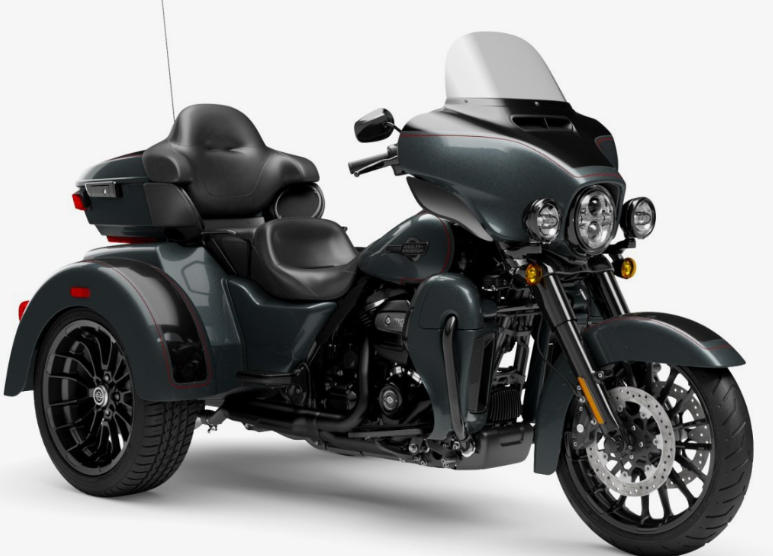

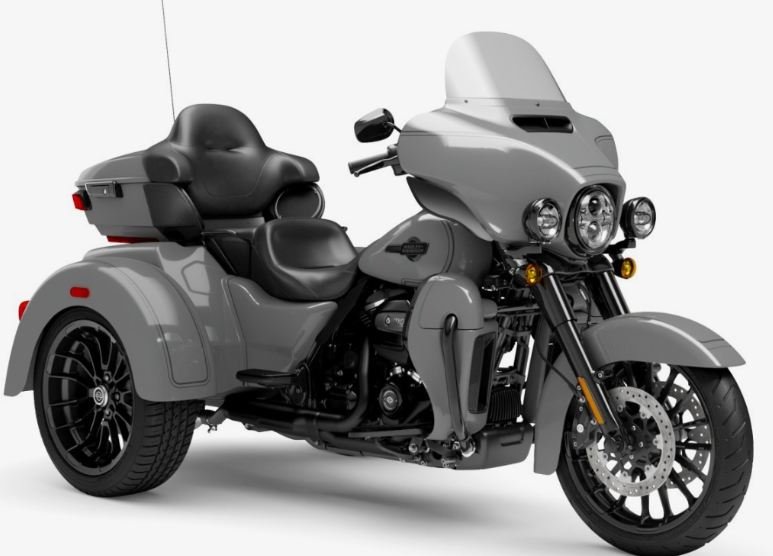

Billiard Gray, Vivid Black, Whiskey Fire, Atlas Blue, Iron Horse Metallic, Mystic Red |
