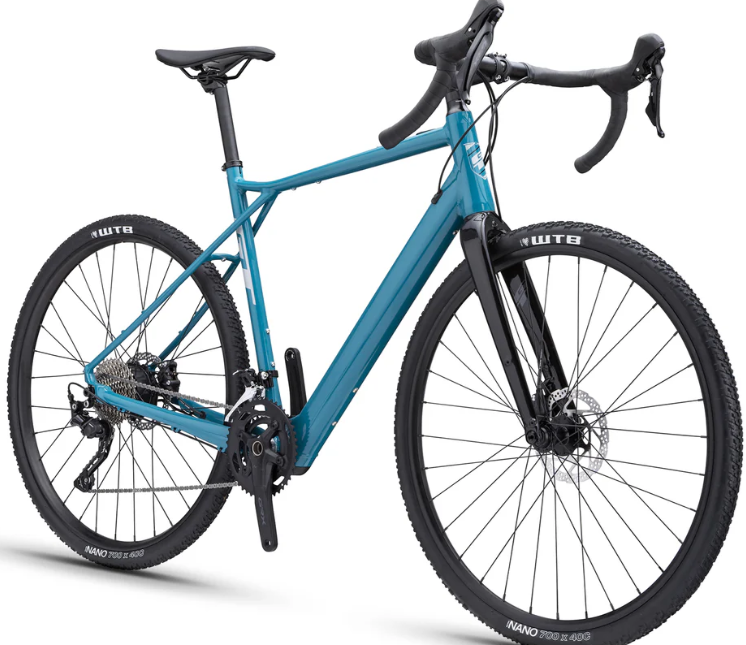

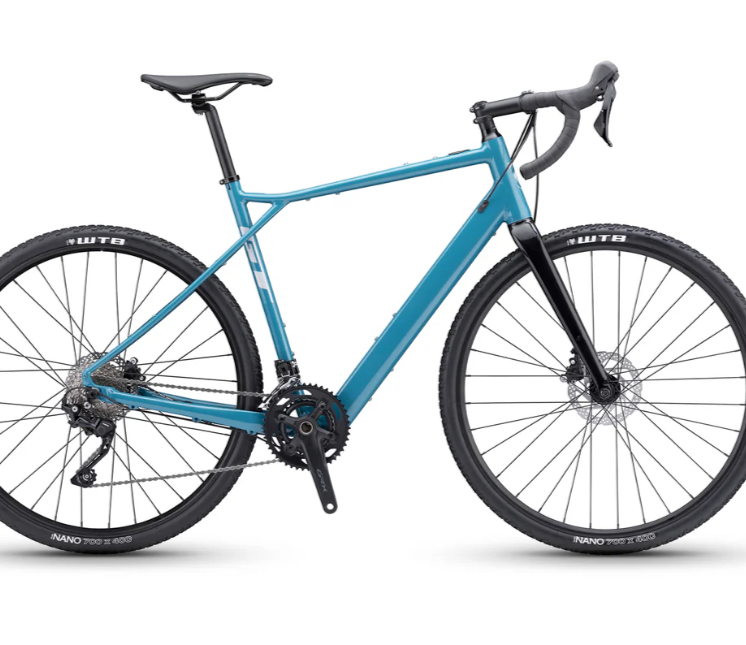

2025 GT eGrade Bolt – Electric Gravel Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	eGrade Bolt
Vehicle Category	Electric Gravel Bike
Application	Gravel riding
Starting Price (2025)	$3,499.95
Color Options	Deep Teal
Sizes	SM, MD, LG, XL

Frame & Drivetrain

Specification	Details
Frame	Grade Alloy Triple Triangle, Ebikemotion specific design, internal battery, tapered head tube
Fork	GT Grade E-Carbon, 1.5" tapered carbon steerer, 12x100mm thru-axle
Crank	Shimano GRX, 46/30T
Chain	KMC X10, 10-speed
Bottom Bracket	Shimano BSA RS500
Shifters	Shimano GRX400, 10-speed
Rear Derailleur	Shimano GRX

Components & Features

Specification	Details
Seating	Fabric Scoop Shallow/Sport, steel rails
Fuel Type	Electric
Wheels/Tyres	Shining, 32h, WTB Nano Comp 700 x 40c
Wheel Size	700c
Brakes	Shimano GRX 400 Hydro Disc, 160mm rotors
Brake Levers	Shimano GRX
Handlebar	GT Butted 6061 Alloy, 16° flare drop
Stem	GT All Terra 3D Forged Alloy, 31.8mm
Headset	1.5" lower to 1-1/8" upper with reducer, 25mm alloy top cap

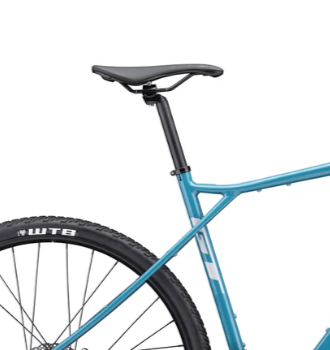

Saddle	Fabric Scoop Shallow/Sport, steel rails
Seatpost	GT All Terra Two Bolt Alloy
Grips	GT Grip Bar Tape w/Gel, 3.5mm

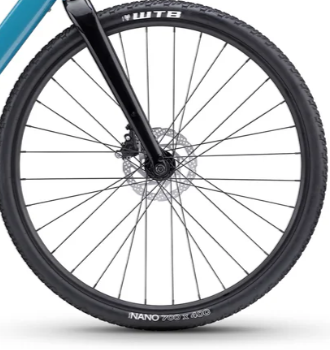

Front Hub	Formula, 12x100mm, 32H

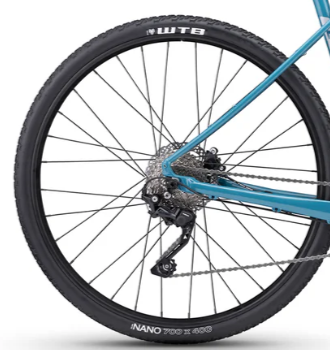

Rear Hub	eBikemotion X35+, 32H
Rims	Shining, 32h
Exterior Features	Internal battery, chain guide

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
