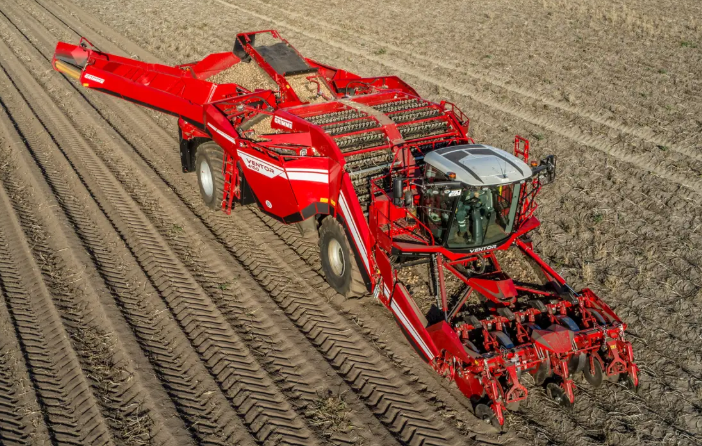

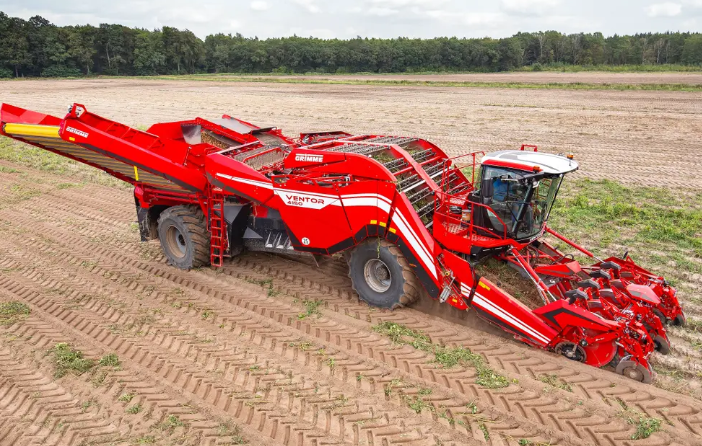

GRIMME VENTOR 4150 – 530 HP 4-Row Potato Harvester with 15 t Bunker
Specifications
|
Specification |
Details |
|
Model |
GRIMME VENTOR 4150 |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 471 LA, 6 cylinders, Stage V, SCR (AdBlue) |
|
Gross Horsepower |
530 HP (390 kW) max |
|
Transmission Type |
Hydrostatic single wheel drive, transport speed 20/25 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Automatic levelling |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
900/70 R32, four-wheel steering with crab steering, 13.1 m outer turning circle |
|
Rear Wheels |
900/60 R38, four-wheel steering with crab steering, 13.1 m outer turning circle |
Components & Features
|
Specification |
Details |
|
Intake System |
TerraFloat with hydraulically operated retaining paddles, depth control via diablo rollers, 75 cm row width, 4 rows, 3 m working width |
|
Separation System |
1st main web: 2x 1500 mm, pitch-dependent PU underdrive, cleaning unit, rocker agitator; 2nd main web: 2x 1350 mm; Deviner web: 2x 1500 mm; 1st separator: 2x 1250 mm, hedgehog web with cleaning device, slip control; 2nd separator: 2x 1300 mm, finger web, height-adjustable scraper roller; 3 hydraulically driven haulm scraper shafts |
|
Picking Table |
1100 mm wide, suitable for 2 persons |
|
Bunker |
15 t (15000 kg), unloading height 2630–4640 mm, automatic bunker filling |
|
Cab |
Premium comfort cab, leather seat with active ventilation and heating, Climatronic, 6 LED work lights, heated/electrically adjustable/pneumatically foldable mirrors, audio system with Bluetooth, windshield wipers, sun visor, CCI 1200 touch-screen terminal, multi-functional lever, ErgoDrive |
|
Technology |
Auto pilot, MemoryControl, SmartView video system (12-inch monitor, zoom, slow motion, WiFi transmission, Visual Protect Pro), ProCam, GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
750 L diesel, 40 L AdBlue |
|
Width |
3500 mm (transport position) |
|
Length |
15000 mm |
|
Max Height |
4000 mm |
|
Weight |
30000 kg (empty weight with basic configuration) |
