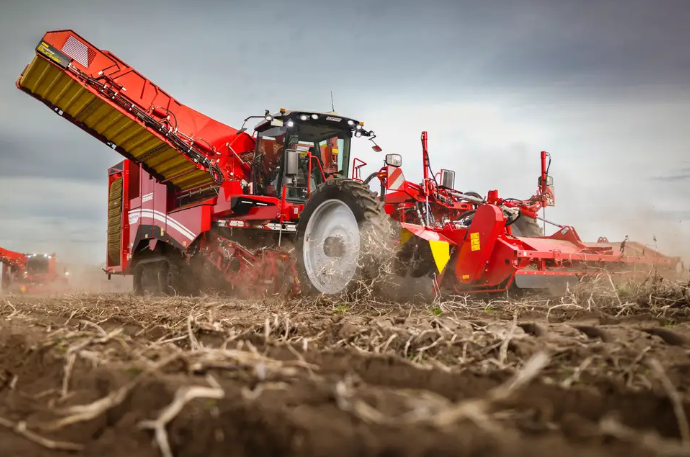

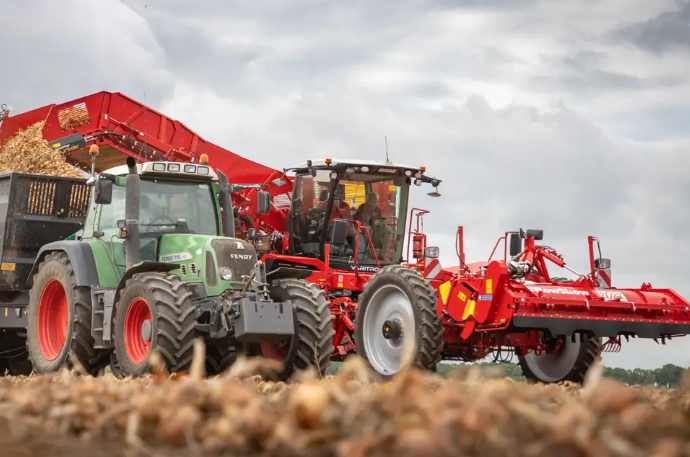

GRIMME VARITRON 470 TERRA TRAC – 460 HP 4-Row Potato Harvester with NonstopBunker
Specifications
|
Specification |
Details |
|
Model |
GRIMME VARITRON 470 TERRA TRAC |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 470 LA, 6 cylinders, Stage V, SCR (AdBlue) |
|
Gross Horsepower |
460 HP (340 kW) max (Stage V), 435 HP (320 kW) (Stage IIIA) |
|
Transmission Type |
Hydrostatic single wheel drive with on-demand traction control (ASR), automotive drive with speed adjustment, transport speed 20/25 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Hydraulic levelling, 5° at slopes |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
2x 270/95 R54 (75 cm row width) or 2x 300/95 R52 (90 cm row width), hydraulic side shift +/- 100 mm, 63° steering angle |
|
Tracks |
Rear: 2x rubber tracks, 800 mm x 2960 mm, 2000 mm contact length, 15° steering angle |
Components & Features
|
Specification |
Details |
|
Intake System |
Pulled diablo roller intake unit, TerraControl (automatic ridge pressure and depth control), 75 or 90 cm row width, 2970 mm (75 cm) or 3600 mm (90 cm) intake web width, 35/40/45/50 mm pitch, hydraulically driven, reversible |
|
Separation System |
1st main web: 28/32/35/40/45/50 mm pitch, hydraulically driven, reversible, rocker agitator, extracting unit with automatic reversing; 2nd main web: 28/32/35/40/45 mm pitch, hydraulically driven, reversible; Separators: Roller Separator or MultiSep, levelling device |
|
Sieving Area |
Intake web: 4.1 m² (75 cm) or 4.7 m² (90 cm); 1st main web: 5.9 m² (75 cm) or 6.5 m² (90 cm); 2nd main web: 6.9 m² |
|
Bunker |
7 t (7000 kg) NonstopBunker, reversing bunker floor, bunker web with canvas, chain greasing system |
|
Elevator |
1200 mm wide ring elevator with canvas, 4350 mm unloading height, Speedtronic-Elevator (automatic speed control), reversible fine haulm elevator |
|
Cab |
Premium comfort cab, leather seat with active ventilation and heating, Climatronic, 6 LED work lights, heated/electrically adjustable/pneumatically foldable mirrors, audio system with Bluetooth, windshield wipers, sun visor, CCI 1200 touch-screen terminal, multi-functional lever, ErgoDrive |
|
Technology |
MemoryControl, SmartView BASIC (8 cameras, 12-inch monitor, zoom, slow motion, WLAN transmission, Visual Protect Pro), SideView, GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
600 L diesel, 40 L AdBlue |
|
Width |
3490 mm (75 cm row width), 3855 mm (90 cm row width) |
|
Track Width |
2970 mm (front, 75 cm row width), 3600 mm (front, 90 cm row width), 800 mm (rear tracks) |
|
Length |
12740–15615 mm |
|
Max Height |
4000 mm |
|
Weight |
30500 kg (permitted total weight), 7000 kg (front axle), 24000 kg (rear axle) |
