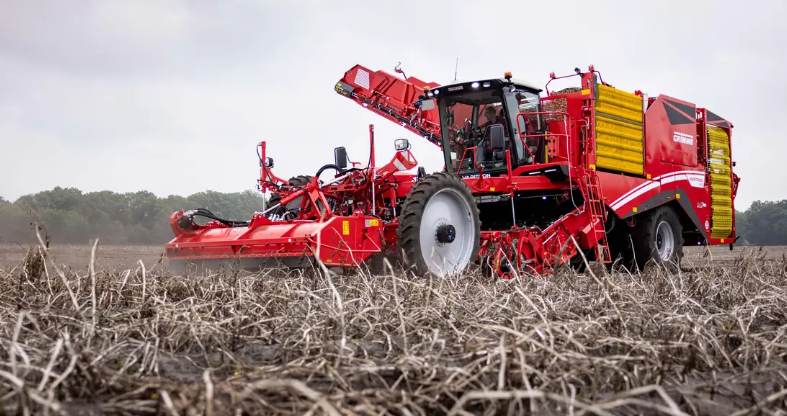

GRIMME VARITRON 470 – 460 HP 4-Row Potato Harvester with NonstopBunker
Specifications
|
Specification |
Details |
|
Model |
GRIMME VARITRON 470 |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 470 LA, 6 cylinders, Stage V, SCR (AdBlue), 10.7 L |
|
Gross Horsepower |
460 HP (340 kW) max (Stage V), 435 HP (320 kW) (Stage IIIA) |
|
Transmission Type |
Hydrostatic single wheel drive with on-demand traction control (ASR), transport speed 20/25/30 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Hydraulic levelling, 4.2° at slopes |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
2x 270/95 R54 (75 cm row width) or 2x 300/95 R52 (90 cm row width), hydraulic side travel +/- 100 mm, 63° steering angle |
|
Rear Wheels |
Right: 1050/50 R32; Left: 900/60 R32, 20° steering angle |
Components & Features
|
Specification |
Details |
|
Intake System |
Pulled diablo roller intake unit, TerraControl, 75 or 90 cm row width, 2970 mm (75 cm) or 3600 mm (90 cm) intake web width, 35/40/45/50 mm pitch, hydraulically driven, reversible |
|
Separation System |
1st main web: 28/32/35/40/45/50 mm pitch, hydraulically driven, reversible, rocker agitator, extracting roller; 2nd main web: 28/32/35/40/45 mm pitch, hydraulically driven, reversible; Separators: Roller Separator or MultiSep, levelling device, GentleFlow concept |
|
Sieving Area |
Intake web: 4.1 m² (75 cm) or 4.7 m² (90 cm); 1st main web: 5.9 m² (75 cm) or 6.5 m² (90 cm); 2nd main web: 6.9 m² |
|
Bunker |
7 t (7000 kg) NonstopBunker, reversing bunker floor, bunker web with canvas, chain greasing system |
|
Elevator |
1200 mm wide ring elevator with canvas, 4350 mm unloading height, Speedtronic-Elevator (automatic speed control), OptiBag polyurethane elevator, reversible fine haulm elevator |
|
Cab |
Premium comfort cab, leather seat with active ventilation and heating, Climatronic, 6 LED work lights, heated/electrically adjustable/pneumatically foldable mirrors, audio system with Bluetooth, windshield wipers, sun visor, CCI 1200 touch-screen terminal, multi-functional lever, ErgoDrive |
|
Technology |
MemoryControl, SmartView BASIC (8 cameras, 12-inch monitor, zoom, slow motion, WLAN transmission, Visual Protect Pro), SideView, GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
600 L diesel, 40 L AdBlue |
|
Width |
3490 mm (75 cm row width), 3870 mm (90 cm row width) |
|
Track Width |
2970 mm (front, 75 cm row width), 3600 mm (front, 90 cm row width), 2700 mm (rear left), 3150 mm (rear right) |
|
Length |
12810–15600 mm |
|
Max Height |
4000 mm |
|
Weight |
26000 kg (permitted total weight), 7000 kg (front axle), 19000 kg (rear axle) |
