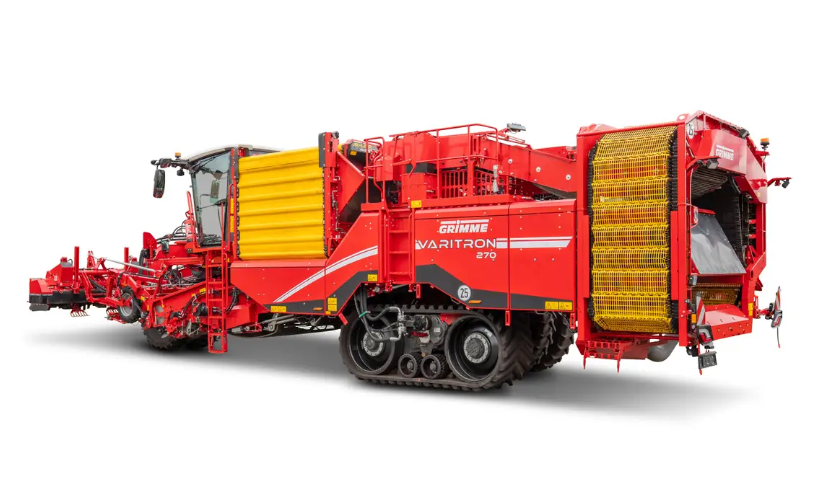

GRIMME VARITRON 270 TERRA TRAC – 354 HP 2-Row Potato Harvester with NonstopBunker
Specifications
|
Specification |
Details |
|
Model |
GRIMME VARITRON 270 TERRA TRAC |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 936 LA, 6 cylinders, Stage V, SCR (AdBlue) |
|
Gross Horsepower |
354 HP (260 kW) max |
|
Transmission Type |
Hydrostatic single wheel drive with on-demand traction control (ASR), transport speed 20/25 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Hydraulic levelling |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
900/60 R32, offset turning table, 65° (left) / 70° (right) steering angle |
|
Rear Wheels |
Right: 800/65 R32, telescopic extension 550 mm, 7° steering angle |
|
Tracks |
Left rear: Rubber track, 800 mm x 2960 mm, 2000 mm contact length, 7° steering angle |
Components & Features
|
Specification |
Details |
|
Intake System |
Offset pulled intake section, 4 spring-loaded disc coulters, 540/580/620 mm intake width, TerraControl, 75–90 cm row width, 2-piece or 3-piece share, 2 diablo rollers (Ø 390 mm), flat shoulder, 2 outer haulm feed rollers, centre retaining rubber, 1500 mm intake web, 35/40/45/50 mm pitch, PU drive |
|
Separation System |
1st main web: 1700 mm, 28/32/35/40/45/50 mm pitch, friction drive, hydraulically driven reversible extracting unit, rocker agitator; 2nd main web: 1700 mm, 28/32/35/40/45 mm pitch, friction drive; Separators: Roller Separator or MultiSep, levelling device, Clean Control |
|
Sieving Area |
Intake web: 2.9 m²; 1st main web: 3.4 m²; 2nd main web: 4.9 m² |
|
Bunker |
7 t (7000 kg) NonstopBunker, reversing bunker floor, three times lowerable unloading elevator, bunker web with canvas, chain greasing system |
|
Elevator |
900 mm wide ring elevator with canvas, 4050 mm unloading height; Cart elevator transfer web with steel bars |
|
Picking Table |
1100 mm wide, one-sided platform (right side), space for up to 2 persons, 6 distributor rollers |
|
Cab |
ErgoDrive cab, air-suspended comfort seat with active ventilation and heating, 6 LED work lights, heated/electrically adjustable/pneumatically foldable mirrors, air conditioning, CCI 1200 touch-screen terminal, multi-functional lever, Clean Control, Visual Protect, GRIMME SmartConnect |
|
Technology |
Clean Control, Visual Protect (CAN-Bus monitoring), GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
600 L diesel, 40 L AdBlue |
|
Width |
3300–4023 mm |
|
Track Width |
3300 mm (front), 2355 mm (rear right wheel), 800 mm (rear track) |
|
Length |
11700–13120 mm |
|
Max Height |
3880 mm |
|
Weight |
24500 kg (permitted total weight) |
