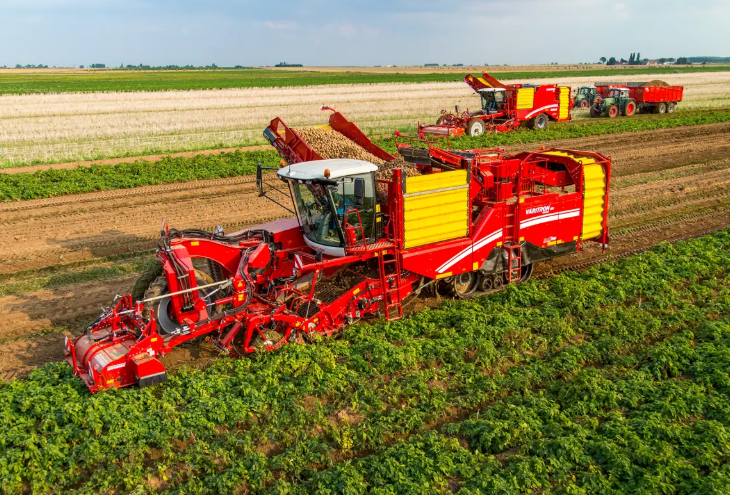

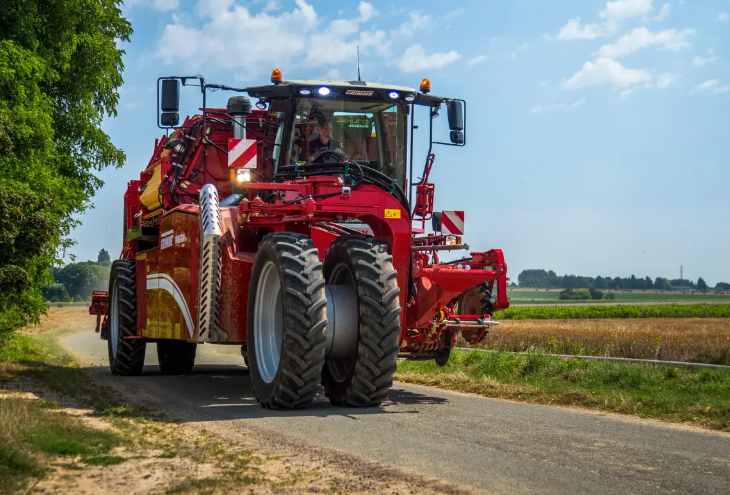

GRIMME VARITRON 270 Platinum TERRA TRAC – 354 HP 2-Row Potato Harvester with NonstopBunker
Specifications
Specification
Details
Model
GRIMME VARITRON 270 Platinum
TERRA TRAC
Vehicle Category
Self-Propelled Potato Harvester
Fuel Type
Diesel
Application
Potatoes, carrots, onions
Frame & Drivetrain
Specification
Details
Engine
Mercedes-Benz OM 936 LA, 6
cylinders, Stage V, SCR (AdBlue)
Gross Horsepower
354 HP (260 kW) max
Transmission Type
Hydrostatic single wheel drive
with on-demand traction control (ASR), transport speed 20/25 km/h
Suspension & Brakes
Specification
Details
Suspension
Hydraulic levelling
Wheels & Tyres
Specification
Details
Front Wheels
900/60 R32, offset turning table,
65° (left) / 70° (right) steering angle
Rear Wheels
Right: 800/65 R32, telescopic extension
550 mm, 7° steering angle
Tracks
Left rear: CLAAS TERRA TRAC
rubber track, 800 mm x 2960 mm, 1.6 m² contact area, 7° steering angle
Components & Features
Specification
Details
Intake System
Offset pulled intake section, 4
spring-loaded disc coulters, 540/580/620 mm intake width, TerraControl, 75–90
cm row width, 2-piece or 3-piece share, 2 diablo rollers (Ø 390 mm), flat
shoulder, 2 outer haulm feed rollers, centre retaining rubber, 1500 mm intake
web, 35/40/45/50 mm pitch, PU drive
Separation System
1st main web: 1700 mm,
28/32/35/40/45/50 mm pitch, friction drive, hydraulically driven reversible
extracting unit, rocker agitator; 2nd main web: 1700 mm, 28/32/35/40/45 mm
pitch, friction drive; Separators: Roller Separator or MultiSep, levelling
device, Clean Control
Sieving Area
Intake web: 2.9 m²; 1st main web:
3.4 m²; 2nd main web: 4.9 m²
Bunker
7 t (7000 kg) NonstopBunker,
reversing bunker floor, three times lowerable unloading elevator, bunker web
with canvas, chain greasing system
Elevator
900 mm wide ring elevator with
canvas, 4050 mm unloading height; Cart elevator transfer web with steel bars
Picking Table
1100 mm wide, one-sided platform
(right side), space for up to 2 persons, 6 distributor rollers
Cab
ErgoDrive cab, air-suspended
comfort seat with active ventilation and heating, 6 LED work lights,
heated/electrically adjustable/pneumatically foldable mirrors, air
conditioning, CCI 100 and CCI 50 touch-screen terminals, multi-functional
lever, Clean Control, Visual Protect, GRIMME SmartConnect
Technology
Auto pilot, Clean Control, Visual
Protect (CAN-Bus monitoring), GRIMME SmartConnect telemetry, myGRIMME
integration
Fuel Tank Capacity
600 L diesel, 40 L AdBlue
Width
3300–4023 mm
Track Width
3300 mm (front), 2355 mm (rear
right wheel), 800 mm (rear track)
|
Specification |
Details |
|
Model |
GRIMME VARITRON 270 Platinum TERRA TRAC |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 936 LA, 6 cylinders, Stage V, SCR (AdBlue) |
|
Gross Horsepower |
354 HP (260 kW) max |
|
Transmission Type |
Hydrostatic single wheel drive with on-demand traction control (ASR), transport speed 20/25 km/h |
|
Specification |
Details |
|
Suspension |
Hydraulic levelling |
|
Specification |
Details |
|
Front Wheels |
900/60 R32, offset turning table, 65° (left) / 70° (right) steering angle |
|
Rear Wheels |
Right: 800/65 R32, telescopic extension 550 mm, 7° steering angle |
|
Tracks |
Left rear: CLAAS TERRA TRAC rubber track, 800 mm x 2960 mm, 1.6 m² contact area, 7° steering angle |
|
Specification |
Details |
|
Intake System |
Offset pulled intake section, 4 spring-loaded disc coulters, 540/580/620 mm intake width, TerraControl, 75–90 cm row width, 2-piece or 3-piece share, 2 diablo rollers (Ø 390 mm), flat shoulder, 2 outer haulm feed rollers, centre retaining rubber, 1500 mm intake web, 35/40/45/50 mm pitch, PU drive |
|
Separation System |
1st main web: 1700 mm, 28/32/35/40/45/50 mm pitch, friction drive, hydraulically driven reversible extracting unit, rocker agitator; 2nd main web: 1700 mm, 28/32/35/40/45 mm pitch, friction drive; Separators: Roller Separator or MultiSep, levelling device, Clean Control |
|
Sieving Area |
Intake web: 2.9 m²; 1st main web: 3.4 m²; 2nd main web: 4.9 m² |
|
Bunker |
7 t (7000 kg) NonstopBunker, reversing bunker floor, three times lowerable unloading elevator, bunker web with canvas, chain greasing system |
|
Elevator |
900 mm wide ring elevator with canvas, 4050 mm unloading height; Cart elevator transfer web with steel bars |
|
Picking Table |
1100 mm wide, one-sided platform (right side), space for up to 2 persons, 6 distributor rollers |
|
Cab |
ErgoDrive cab, air-suspended comfort seat with active ventilation and heating, 6 LED work lights, heated/electrically adjustable/pneumatically foldable mirrors, air conditioning, CCI 100 and CCI 50 touch-screen terminals, multi-functional lever, Clean Control, Visual Protect, GRIMME SmartConnect |
|
Technology |
Auto pilot, Clean Control, Visual Protect (CAN-Bus monitoring), GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
600 L diesel, 40 L AdBlue |
|
Width |
3300–4023 mm |
|
Track Width |
3300 mm (front), 2355 mm (rear right wheel), 800 mm (rear track) |
