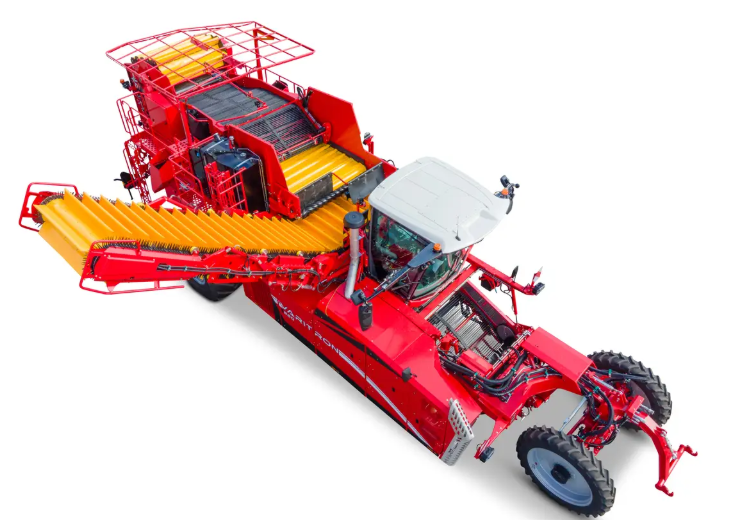

GRIMME VARITRON 220 TERRA TRAC – 354 HP 2-Row Potato Harvester
Specifications
|
Specification |
Details |
|
Model |
GRIMME VARITRON 220 TERRA TRAC |
|
Vehicle Category |
Self-Propelled Potato Harvester |
|
Fuel Type |
Diesel |
|
Application |
Potatoes, carrots, onions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Mercedes-Benz OM 936 LA, 6 cylinders, Stage V, SCR (AdBlue) |
|
Gross Horsepower |
354 HP (260 kW) max |
|
Transmission Type |
Hydrostatic single wheel drive with on-demand traction control (ASR), transport speed 20/25 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
2x 300/95 R42, hydraulic side travel +/- 150 mm, 60° steering angle |
|
Rear Wheels |
Right: 800/65 R32, telescopic extension 550 mm, 7° steering angle |
|
Tracks |
Left rear: Rubber track, 800 mm x 2960 mm, 2000 mm contact length |
Components & Features
|
Specification |
Details |
|
Intake System |
Pulled intake section, 4 spring-loaded disc coulters, 580/620 mm intake width, TerraControl, 75–90 cm row width, 2-piece or 3-piece share, 2 diablo rollers (Ø 390 mm), flat shoulder, 2 outer haulm feed rollers, centre retaining rubber, 1500 mm intake web, 35/40/45/50 mm pitch, PU drive |
|
Separation System |
1st main web: 1700 mm, 28/32/35/40/45/50 mm pitch, friction drive, hydraulically driven reversible extracting unit, rocker agitator; 2nd main web: 1700 mm, 28/32/35/40/45 mm pitch, friction drive; Separators: Roller Separator (9 roller pairs) or MultiSep (4 roller pairs), levelling device, 2nd MultiSep, Clean Control |
|
Sieving Area |
Intake web: 2.9 m²; 1st main web: 3.4 m²; 2nd main web: 4.9 m² |
|
Bunker |
2 t (2000 kg) buffer bunker, 1200 mm wide cart elevator |
|
Elevator |
Up and over elevator, 1800 mm wide, PVC-canvas; Overloading elevator: 1200 mm wide, 4200 mm transfer height |
|
Picking Table |
1630 mm wide, suitable for up to 4 persons |
|
Cab |
ErgoDrive cab, air-suspended comfort seat with active ventilation and heating, 6 LED work lights, heated/electric mirrors, windshield wipers, CCI 1200 touch-screen terminal, multi-functional lever, Visual Protect, GRIMME SmartConnect |
|
Technology |
Clean Control, Visual Protect (CAN-Bus monitoring), GRIMME SmartConnect telemetry, myGRIMME integration |
|
Fuel Tank Capacity |
600 L diesel, 40 L AdBlue |
|
Width |
3300–4023 mm |
|
Track Width |
2670 mm (front), 2355 mm (rear wheel), 800 mm (rear track) |
|
Length |
11700–13395 mm |
|
Max Height |
3880 mm |
|
Weight |
24500 kg (permitted total weight) |
