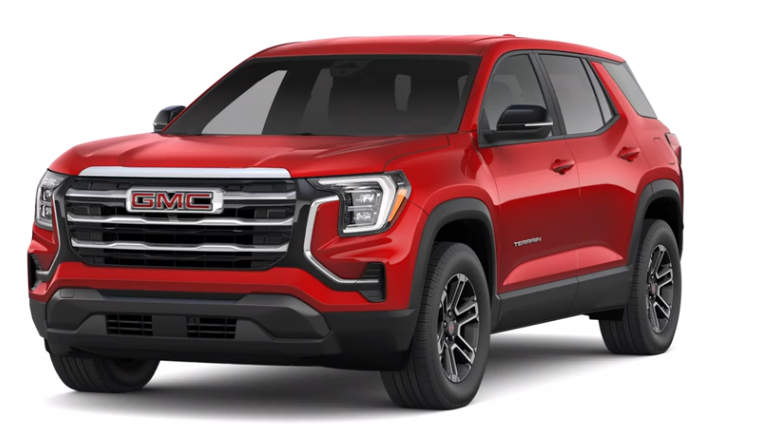

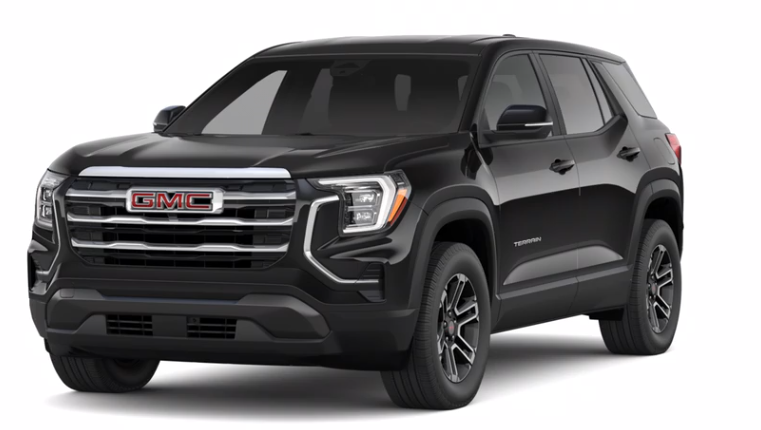

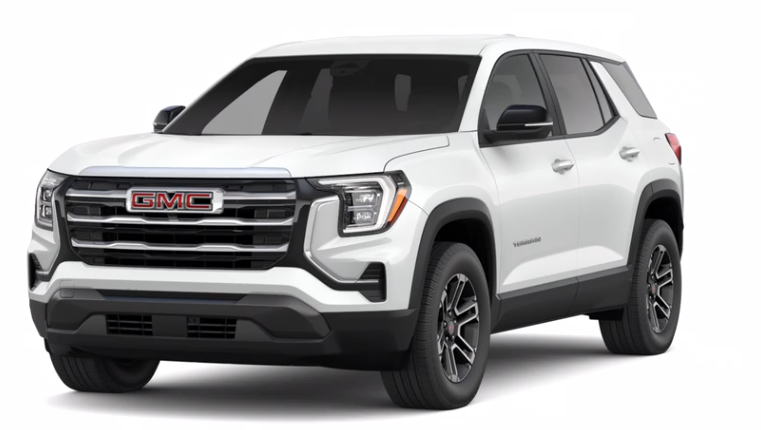

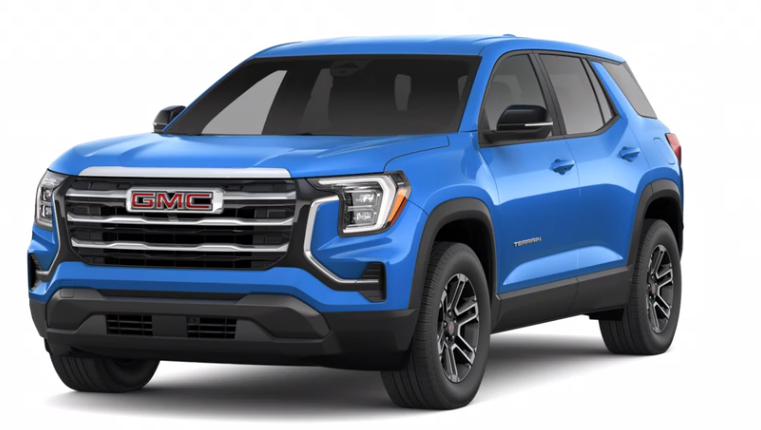

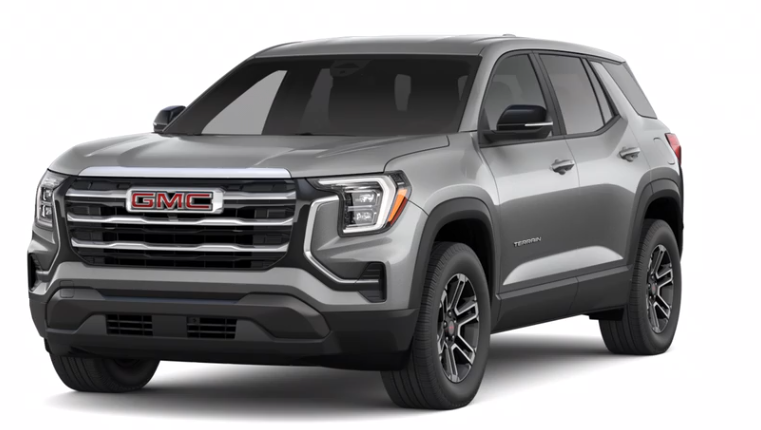

2026 GMC Terrain Elevation – 175 HP Compact SUV
Specifications
|
Specification |
Details |
|
Model |
Terrain Elevation |
|
Vehicle Category |
Compact SUV |
|
Fuel Type |
Gasoline |
|
Application |
Passenger transport, urban and highway driving |
|
Starting Price(2025) |
$30,100 (FWD), $32,100 (AWD), including $1,395 destination charge; as shown: $35,885; fully optioned: ~$41,534 |
|
Color Options |
Exterior: Summit White (no cost), Ebony Twilight Metallic ($495), Rapids Metallic ($495), Riverstone Metallic ($495), Sterling Metallic ($495), Volcanic Red Tintcoat ($645); Two-tone Roof: Ebony Twilight Metallic ($495), Sterling Metallic ($495, with Ebony Twilight Metallic body); Interior: Gideon Gray/After Dark (cloth or leatherette), Jet Black (cloth or leatherette), After Dark (cloth or leatherette) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
1.5L Turbocharged Inline 4-cylinder (LSD), gasoline, direct injection, DOHC, variable valve timing |
|
Gross Horsepower |
175 HP @ 5800 RPM |
|
Torque |
184 lb-ft @ 2000–4800 RPM (FWD), 203 lb-ft @ 2000–4000 RPM (AWD) |
|
Transmission Type |
Continuously variable transmission (CVT) for FWD; 8-speed automatic for AWD |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front: MacPherson strut, Rear: 4-link, four-wheel independent suspension with stabilizer bar |
|
Brakes |
4-wheel disc brakes, 16 in. rotors (300 mm front, 288 mm rear), 4-wheel ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels & Tyres |
17 x 7.0 in. Grazen Metallic machined aluminum wheels, 235/65R17 all-season blackwall tires; Black Edition: 19 x 7.5 in. gloss-black aluminum wheels, 235/55R19 all-season tires; temporary spare tire (T125/70R17) |
Components & Features
|
Specification |
Details |
|
Chassis |
Unibody construction, GM D2 platform |
|
Seating |
5 passengers, premium cloth bucket seats (standard), CoreTec leatherette (optional with Elevation Premium package), 6-way manual driver seat, 4-way manual passenger seat, heated front seats |
|
Infotainment |
15 in. diagonal Premium GMC Infotainment System with Google built-in, AM/FM stereo, 6 speakers, wireless Apple CarPlay/Android Auto, SiriusXM 3-month trial, 11 in. diagonal Driver Information Center |
|
Safety Features |
Over 16 standard safety features: Enhanced Automatic Emergency Braking, Front Pedestrian and Bicyclist Braking, Intersection Automatic Emergency Braking, Rear Cross Traffic Braking, Reverse Automatic Braking, Side Bicyclist Alert, Blind Zone Steering Assist, Safety Alert Seat, airbags (dual front, side, head-curtain), stability/traction control; optional: Rear Pedestrian Alert, Traffic Sign Recognition, HD Surround Vision, up to 8 camera views |
|
Convenience Features |
Keyless ignition, adaptive cruise control, remote start, heated steering wheel, AutoSense hands-free power liftgate (optional), RainSense wipers (optional), dual-zone climate control (optional), wireless charging (optional), panoramic sunroof (optional) |
|
Cargo Capacity |
29.6 cu.ft. (behind rear seat), 63.5 cu.ft. (rear seat folded) |
|
Fuel Tank |
14.9 gal (FWD), 15.6 gal (AWD) |
|
Weight |
3446 lbs (FWD), 3598 lbs (AWD) |
|
Width |
74.5 in. (1892 mm) |
|
Length |
181.0 in. (4597 mm) |
|
Max Height |
65.8 in. (1672 mm without sunroof), 66.1 in. (1680 mm with sunroof) |
|
Ground Clearance |
5.8 in. (147 mm, FWD), 6.9 in. (175 mm, AWD) |
