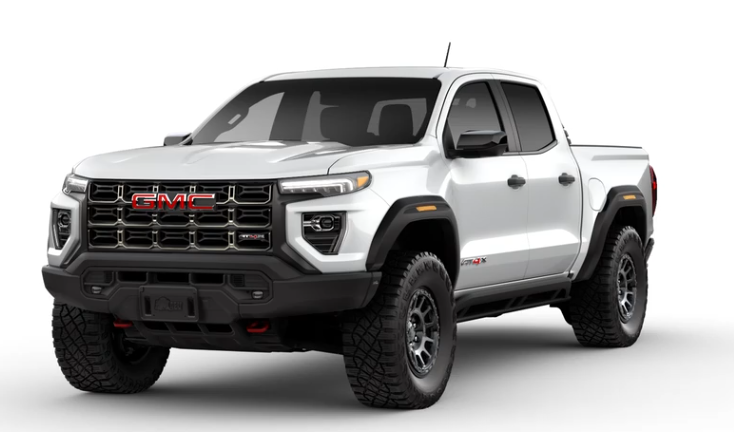

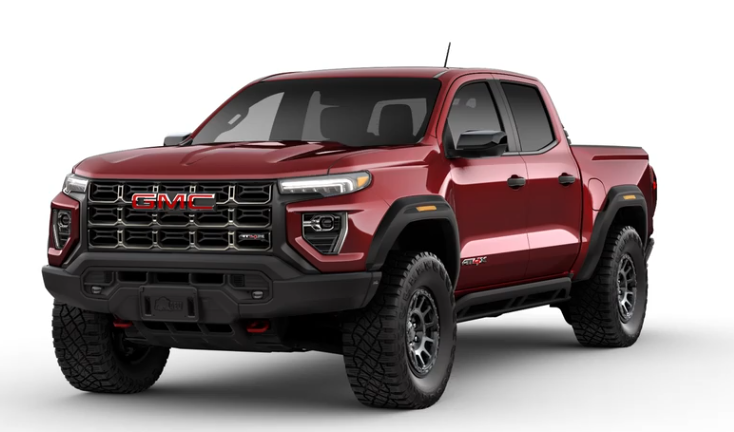

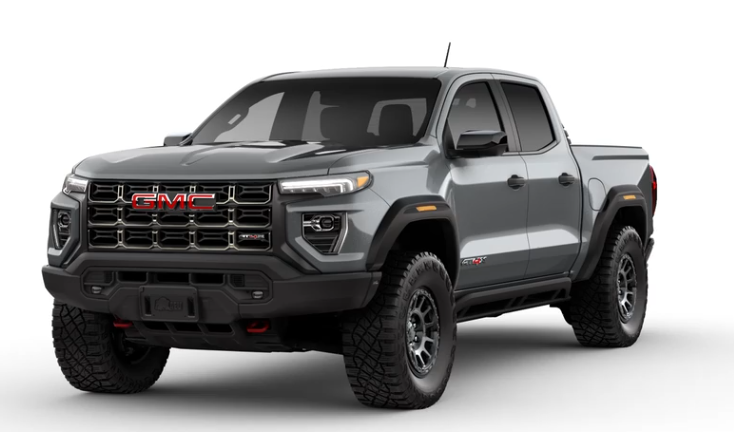

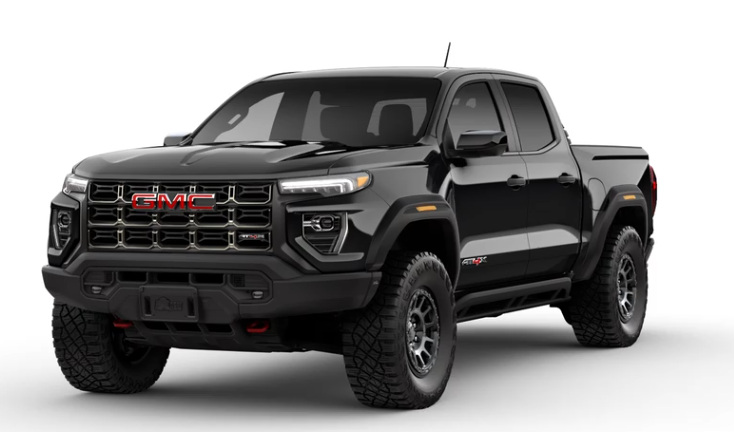

2025 GMC Canyon AT4X AEV Edition – 310 HP Mid-Size Off-Road Pickup Truck
Specifications
|
Specification |
Details |
|
Model |
Canyon AT4X AEV Edition |
|
Vehicle Category |
Mid-Size Pickup Truck |
|
Fuel Type |
Gasoline |
|
Application |
Extreme off-road driving, work, towing |
|
Starting Price(2025) |
$55,800 (4WD, Crew Cab, AT4 base + $10,100 package), including $2,400 destination charge; as shown: $68,550-$71,395 |
|
Color Options |
Exterior: Deep Bronze Metallic ($495), Desert Sun ($495, AT4-exclusive), Onyx Black ($495), Rapids Metallic ($495), Sterling Metallic ($495), Summit White (no cost), Volcanic Red Tintcoat ($645); Interior: Obsidian Rush (leather) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
2.7L TurboMax Inline 4-cylinder, gasoline, direct injection, DOHC, variable valve timing |
|
Gross Horsepower |
310 HP @ 5600 RPM |
|
Torque |
430 lb-ft @ 3000 RPM |
|
Transmission Type |
8-speed automatic |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front: Independent coil-over-shock, Rear: Solid axle with semi-elliptic leaf springs, Multimatic DSSV dampers, 4.5 in. factory lift |
|
Brakes |
4-wheel disc brakes, 12.2 in. front rotors, 12.1 in. rear rotors, 4-wheel ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels & Tyres |
17 x 8.5 in. AEV beadlock-capable Salta wheels, 35 in. Goodyear Wrangler Territory MT tires (LT315/70R17) |
Components & Features
|
Specification |
Details |
|
Chassis |
Body-on-frame, GM midsize truck platform |
|
Seating |
5 passengers (Crew Cab), perforated leather-appointed bucket seats, 8-way power heated/ventilated front seats, heated steering wheel |
|
Infotainment |
11.3 in. diagonal touchscreen with Google built-in, wireless Apple CarPlay/Android Auto, Bose 7-speaker audio, SiriusXM 3-month trial, 11 in. digital Driver Information Center, 6.3 in. head-up display |
|
Safety Features |
Canyon Pro Safety: Forward Collision Alert, Automatic Emergency Braking, Front Pedestrian/Bicyclist Braking, Lane Keep Assist with Lane Departure Warning, Following Distance Indicator, IntelliBeam; standard: adaptive cruise control, High Definition Surround Vision, up to 10 camera views (including underbody), blind-spot warning with trailer coverage, rear cross-traffic braking, rear park assist, Safety Alert Seat |
|
Convenience Features |
4.5 in. factory lift, AEV hot-stamped boron steel skid plates, AEV stamped steel front/rear bumpers, rock sliders, two-speed AutoTrac transfer case, front/rear electronic locking differentials, spray-in bedliner, keyless open, remote start, ProGrade Trailering System, trailer brake controller, MultiStow tailgate, wireless charging, Baja drive mode, optional: snorkel, power sunroof |
|
Cargo Capacity |
41.9 cu.ft. (short bed, Crew Cab), max payload: 1250 lbs, max towing: 5500 lbs |
|
Fuel Tank |
21.4 gal |
|
Weight |
5200-5278 lbs (4WD Crew Cab) |
|
Width |
72.4 in. (1839 mm, without mirrors) |
|
Length |
213.2 in. (5415 mm, Crew Cab short bed) |
|
Max Height |
81.6 in. (2073 mm) |
|
Ground Clearance |
12.2 in. (310 mm) |
