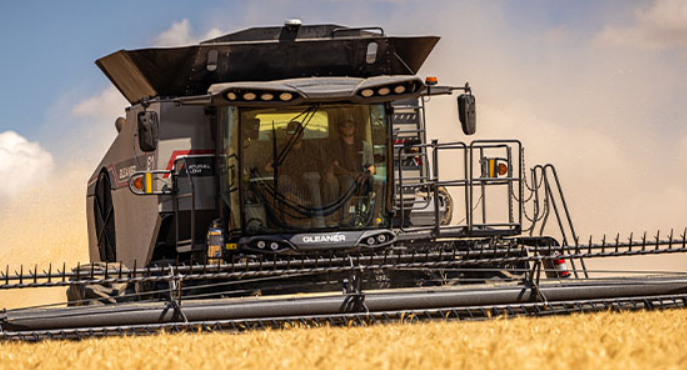

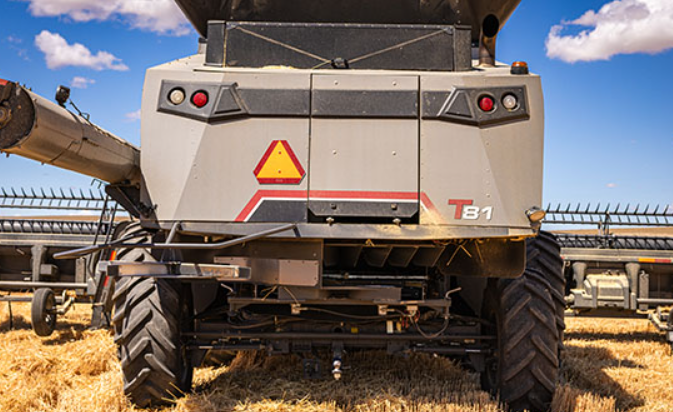

Gleaner T81 – 430 HP Transverse Rotary Combine Harvester
Specifications
|
Specification |
Details |
|
Model |
Gleaner T81 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Small grains, sorghum, corn, soybeans |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power 9.8L, 6 cylinders, 9.8 L, Tier IV Final, two-stage turbo with waste gate control, water-to-air and air-to-air charge air cooler, SCR and cooled EGR emissions technology |
|
Gross Horsepower |
430 HP (321 kW) rated, 471 HP (351 kW) peak at 1950 rpm |
|
Transmission Type |
Dura Drive, hydraulic shift, two-range transmission, max speed 15 kph (9 mph) low range, 24 kph (14 mph) field mode high range, 40 kph (25 mph) road mode high range |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Internal ball and ramp wet disc brake |
Wheels & Tyres
|
Specification |
Details |
|
Axles |
Heavy-duty steering axle (standard), optional rear wheel assist steering axle |
Components & Features
|
Specification |
Details |
|
Threshing System |
Natural Flow transverse rotary processor, 30 in (762 mm) rotor diameter, 88 in (2235 mm) rotor length, 179-480 rpm low range, 336-903 rpm high range, optional hydraulic rotor reverser, 4-bar and wire concave (87° wrap, 0.62 m² threshing area) |
|
Separation System |
1 fixed separator grate, chromed separator cage, 0.73 m² separation area, 2.56 m² perforated cage/discharge grate area, 3.90 m² total threshing and separation area, grate covers (1 over rear in dry wheat/soybeans, removed in corn; 1 below chopper floor in small grain/some soybeans, removed in corn) |
|
Cleaning System |
Cascade pan/front chaffer (0.63 m²), chaffer (2.51 m²), sieve (2.19 m²), total cleaning area 5.62 m², standard all-crop chaffer/sieve (small grain, sorghum, low-yield corn/soybeans), optional square/round lip deep tooth corn chaffer (high-capacity corn/soybeans), 13 in (330 mm) diameter scroll fan (1250 rpm), electric adjustable choke, paddle elevator tailings return to rotor |
|
Grain Tank |
390 bu (13743 L) capacity, 4.0 bu/sec (140.95 L/sec) unloading rate, powered grain tank extensions |
|
Residue Handling |
Standard impeller, optional 2-speed FineCut II chopper, standard hydraulic rotor discharge straw spreader, standard passive shoe tailboard, standard hydraulic chaff spreader |
|
Feeder System |
4-strand chain, 39.5 in (1003 mm) width, 2-speed 2HB belt drive, standard fixed speed header drive (optional variable speed), standard hydraulic reverser |
|
Fuel Tank Capacity |
230 gal (870.6 L diesel), 24.5 gal (92.7 L DEF) |
|
Width |
9.91–11.91 ft (3.00–3.63 m) heavy-duty axle, 10.5–12 ft (3.20–3.65 m) rear wheel assist axle |
|
Track Width |
9.91–11.91 ft (3.00–3.63 m) heavy-duty axle, 10.5–12 ft (3.20–3.65 m) rear wheel assist axle |
|
Length |
340.5 in (8.65 m) without header |
|
Max Height |
178.3 in (4.52 m) with extensions open, 149.8 in (3.80 m) transport |
|
Wheelbase |
134.0 in (3.40 m) |
|
Weight |
35450 lbs (16080 kg) |
|
Features |
Standard operator cab with Tyton 10.4 in (26.4 cm) terminal or optional Ag Leader terminal, air-suspended cloth seat (standard cab) or heated/cooled leather seat (Deluxe cab), integrated backup and unloading auger cameras (Deluxe cab), optional refrigerator (Deluxe cab), Fieldstar Live or Ag Leader yield monitor with live yield mapping, Trimble AG-482 or NovAtel SMART7 guidance receiver, AutoTurn (Deluxe cab), AGCO Connect telemetry (5-year free subscription), USB/wireless wayline and settings transfer, Maximum Access shielding, SmartCooling variable pitch/reversing fan, standard differential lock, optional rear wheel assist |
