Specification

Details

Model

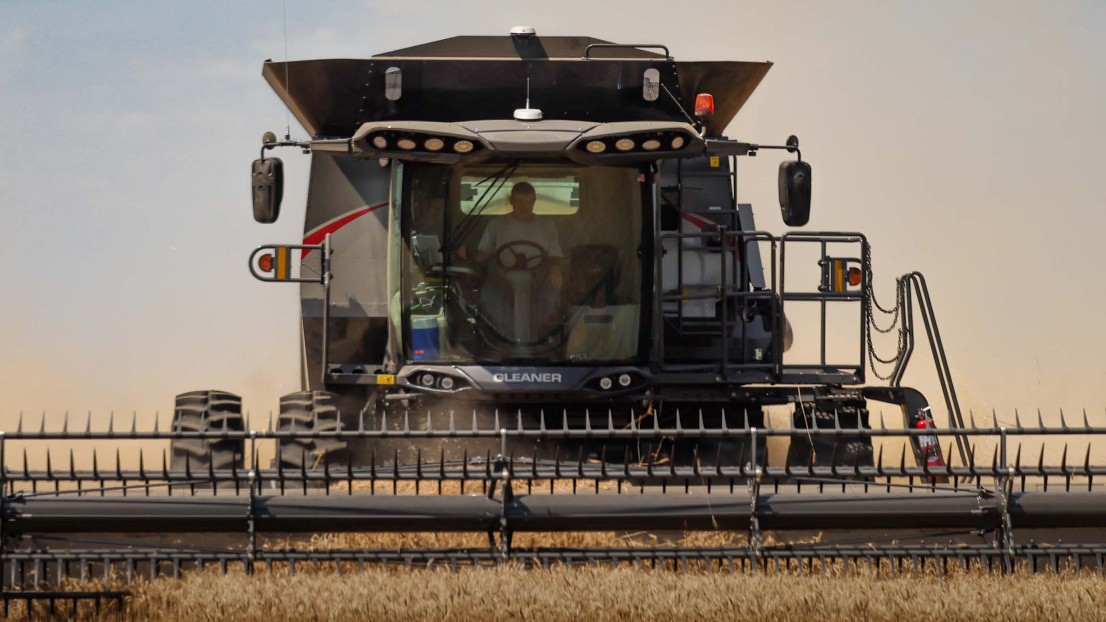

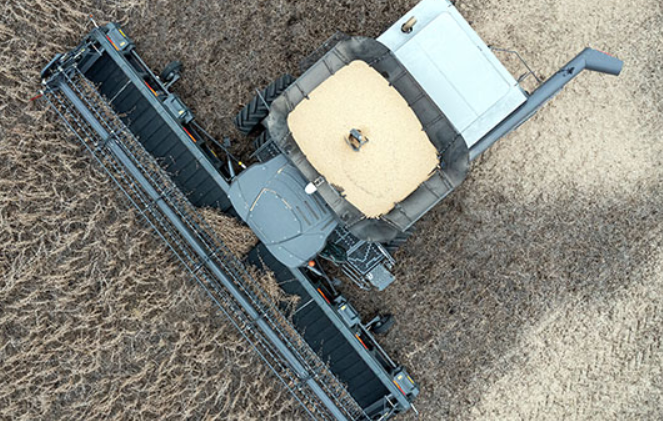

Gleaner S97

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

grains, sorghum, corn, soybeans

Specification

Details

Engine

AGCO Power 9.8L, 7 cylinders, 9.8 L, Tier IV Final, two-stage turbo with waste gate control, water-to-air and air-to-air charge air cooler, SCR and cooled EGR emissions technology

Gross Horsepower

375 HP (280 kW) rated, 451 HP (336 kW) peak at 1950 rpm

Transmission Type

Electric shift, four-speed transmission, variable displacement hydrostatic propulsion system

Specification

Details

Brakes

Inboard hydraulic shoe

Specification

Details

Axles

Heavy-duty steering axle (standard), optional rear wheel assist steering axle

Specification

Details

Threshing System

Natural Flow transverse rotary processor, 30 in (762 mm) rotor diameter, 88 in (2235 mm) rotor length, 179-480 rpm low range, 336-903 rpm high range, 4-bar and wire concave (87° wrap, 0.62 m² threshing area)

Separation System

1 fixed separator grate, chromed separator cage, 0.73 m² separation area, 2.56 m² perforated cage/discharge grate area, 3.90 m² total threshing and separation area, grate covers (1 over rear in dry wheat/soybeans, removed in corn; 1 below chopper floor in small grain/some soybeans, removed in corn)

Cleaning System

Cascade pan/front chaffer (0.63 m²), chaffer (2.51 m²), sieve (2.19 m²), total cleaning area 5.62 m², standard all-crop chaffer/sieve (small grain, sorghum, low-yield corn/soybeans), optional square/round lip deep tooth corn chaffer (high-capacity corn/soybeans), shaker shoe motion, 13 in (330 mm) diameter scroll fan (1250 rpm), electric adjustable choke, paddle elevator tailings return to rotor, reactive air control system

Grain Tank

390 bu (13743 L) capacity, 4.0 bu/sec (140.95 L/sec) unloading rate, PowerFold grain tank extensions (12.41 ft/3.78 m transport height)

Residue Handling

Standard impeller, optional 2-speed FineCut II chopper (24 blades, 7.5 in drum, up to 3250 rpm, stationary knives for small grains/soybeans), standard hydraulic rotor discharge straw spreader, standard passive shoe tailboard, standard hydraulic chaff spreader (up to 40 ft header width)

Feeder System

4-strand chain, 39.5 in (1003 mm) width, 2-speed 2HB belt drive, standard fixed speed header drive (optional variable speed), standard hydraulic reverser, two distribution augers, two accelerator rolls

Header Options

3300 Command Series corn headers (8 or 12 rows, 30 in/762 mm spacing, 20 in/508 mm auger, optional chopping), 9300 DynaFlex draper headers (25 ft/7.6 m, 30 ft/9.1 m, 35 ft/10.7 m, 40 ft/12.1 m, high capacity or SCH cutter bar, 8 in/203.2 mm float, dual mechanical side draper 384–602 ft/min, fixed speed side draper 557 ft/min), Reichhardt row guidance sensor for 3300 corn headers

Fuel Tank Capacity

230 gal (870.6 L diesel), 24.5 gal (92.7 L DEF)

Width

9.91–11.91 ft (3.00–3.63 m) heavy-duty axle, 10.5–12 ft (3.20–3.65 m) rear wheel assist axle

Track Width

9.91–11.91 ft (3.00–3.63 m) heavy-duty axle, 10.5–12 ft (3.20–3.65 m) rear wheel assist axle

Length

340.5 in (8.65 m) without header

Max Height

178.3 in (4.52 m) with extensions open, 149.8 in (3.80 m) transport

Wheelbase

134.0 in (3.40 m)

Weight

35450 lbs (16080 kg)

Features

Vision cab (130 cu ft, 66 sq ft glass, UV-blocking laminate, automatic HVAC, PowerFold or optional PowerSwivel ladder, 12 halogen lamps or optional NightSight LED), Tyton 10.4 in (26.4 cm) terminal or optional Ag Leader terminal, air-suspended cloth seat or optional cloth/leather bolstered heated/cooled seat, optional Deluxe radio (AM/FM, Bluetooth, Sirius XM, hands-free phone, 4 Kicker speakers, subwoofer), optional cooler, Fieldstar Live or Ag Leader yield monitor with live yield mapping, Garmin (task recording only), NovAtel SMART7, or Trimble AG-482 guidance receiver, up to 6 AgCam cameras (2 on Tyton, 4 on optional AgCam Quad Display), multifunction lever (header/reel movement, auto header control, unloading auger swing/engagement, guidance nudge, speed variants), multifunction armrest, SmartCooling variable pitch/reversing fan, Connect telemetry subscription, USB/wireless wayline/settings transfer, up to 23% slope capability
