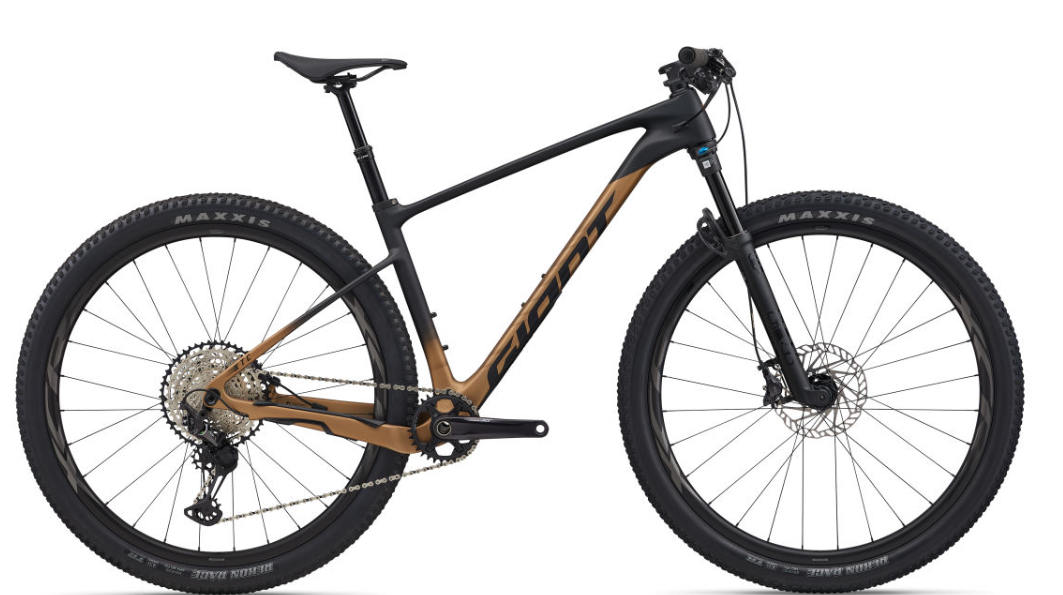

2026 Giant XTC Advanced 29 1 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
XTC Advanced 29 1 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Cross country riding |
|
Starting Price (2025) |
$4,000 USD |
|
Color Options |
Abyss Black/Steampunk |
|
Sizes |
S (5'4" - 5'8"), M (5'7" - 5'11"), L (5'10" - 6'2"), XL (6'2" - 6'6") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite, 12x148mm thru-axle |
|

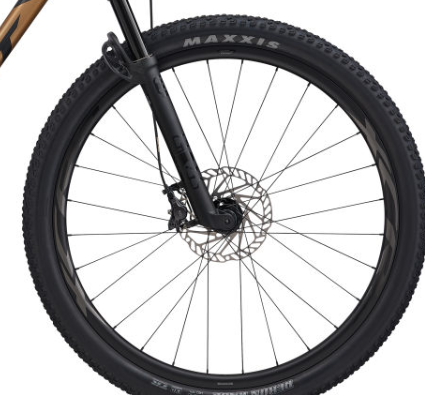

Fork |
Fox 32 Float Step Cast Performance, 100mm, GRIP damper, 44mm offset, two-position remote lockout, Boost 15x110 Kabolt |
|

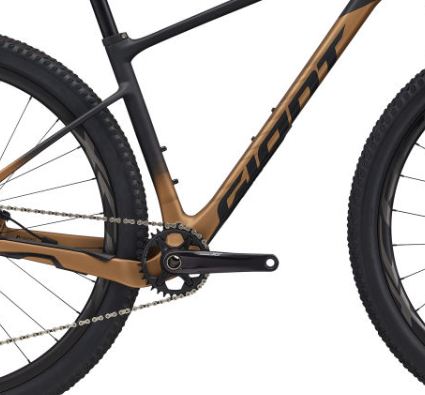

Crank |
Shimano Deore XT M8120, 32t (S:170mm, M:175mm, L:175mm, XL:175mm) |
|
Chain |
KMC X-12 |
|
Bottom Bracket |
Shimano, press fit |
|
Shifters |
Shimano Deore XT M8100, 1x12 |
|

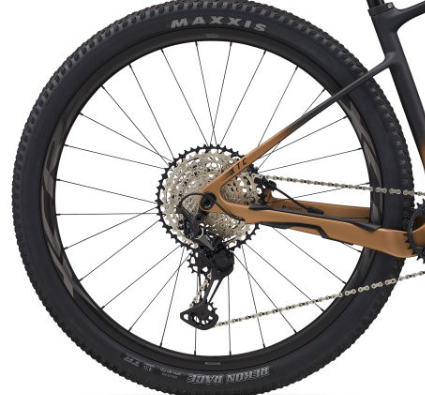

Rear Derailleur |
Shimano Deore XT M8100 |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Grit SL |
|
Wheels/Tyres |
Maxxis Rekon Race, 29x2.4 [F], Maxxis Rekon Race, 29x2.25, foldable, TLR, EXO [R] |
|
Wheel Size |
29" |
|
Brakes |
Shimano Deore XT BR-M8100, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm |
|
Brake Levers |
Shimano Deore XT BL-M8100 |
|
Handlebar |
Giant Contact XC 35, 760x35mm |
|
Stem |
Giant Contact SL XC 35 (S:60mm, M:70mm, L:80mm, XL:90mm) |
|
Headset |
Giant integrated |
|

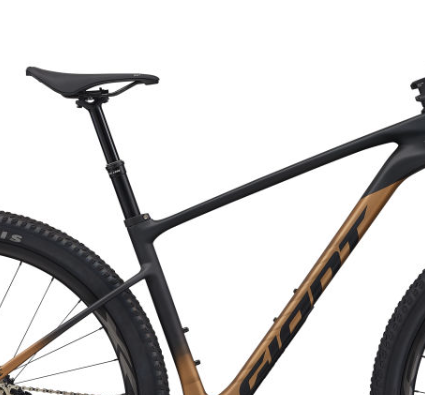

Saddle |
Giant Grit SL |
|
Seatpost |
Giant Contact Switch Core dropper, remote (S:100mm travel / 30.9x350mm, M:100mm travel / 30.9x350mm, L:120mm travel / 30.9x400mm, XL:120mm travel / 30.9x400mm) |
|
Grips |
Giant XC Pro (S:32mm, M:32mm, L:34mm, XL:34mm) |
|
Front Hub |
Giant MTB alloy, 6-bolt |
|
Rear Hub |
Giant MTB alloy, 3-pawl driver, 6-bolt |
|
Rims |
Giant XCR 2 Carbon 29 WheelSystem |
|
Spokes |
Sapim |
|
Exterior Features |
Tubeless prepared, 2.25" max tire size, 38t max chainring size |
