2024 Giant Trance X SX – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trance X SX |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$3,300 USD |
|
Color Options |
Golden Haze |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

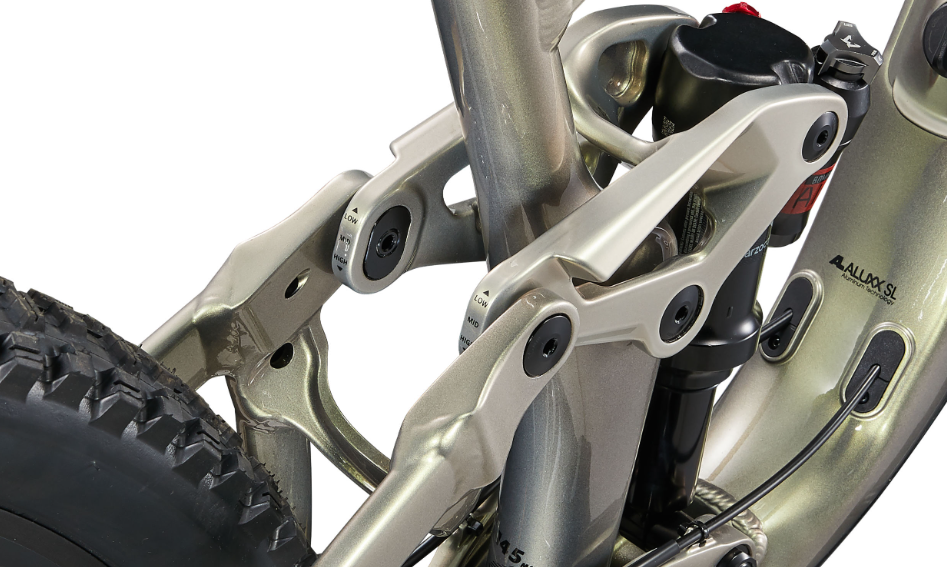

ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset |
|
Fork |
Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset |
|
Rear Shock |

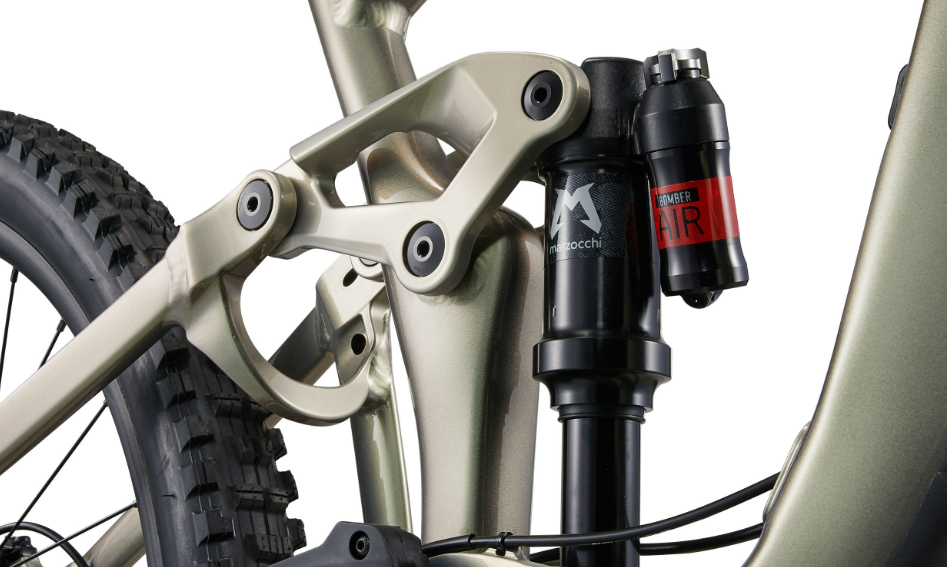

Marzocchi Bomber Air, two-position compression sweep, 185/55 |
|
Crankset |
Praxis Cadet HD M24, 30t, 55mm chainline, S:165mm, M:170mm, L:170mm, XL:170mm |
|
Chain |
KMC X-12 |
|
Bottom Bracket |
Praxis, press fit |
|
Shifters |
Shimano Deore, 1x12 |
|
Rear Derailleur |
Shimano Deore, Shadow + |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Romero SL |
|
Wheels/Tyres |
Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [F], Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano Deore BL-MT401 |
|
Handlebar |
Giant Contact TR35, alloy, 780x35mm, 20mm rise |
|
Stem |
Giant Contact SL 35, S:40mm, M:40mm, L:50mm, XL:50mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Giant Romero SL |
|
Seatpost |
Contact Switch AT dropper, remote, S:110-140mm travel, M:140-170mm travel, L:170-200mm travel, XL:170-200mm travel |
|
Grips |
Giant Tactal Pro Single Lock-On, 132x35mm |
|
Front Hub |
Giant MTB alloy, six-bolt |
|
Rear Hub |
Giant MTB alloy, 72t POE, six-bolt, MicroSpline driver body |
|
Rims |
Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height |
|
Spokes |
Sapim, 28, J-bend |
|
Exterior Features |

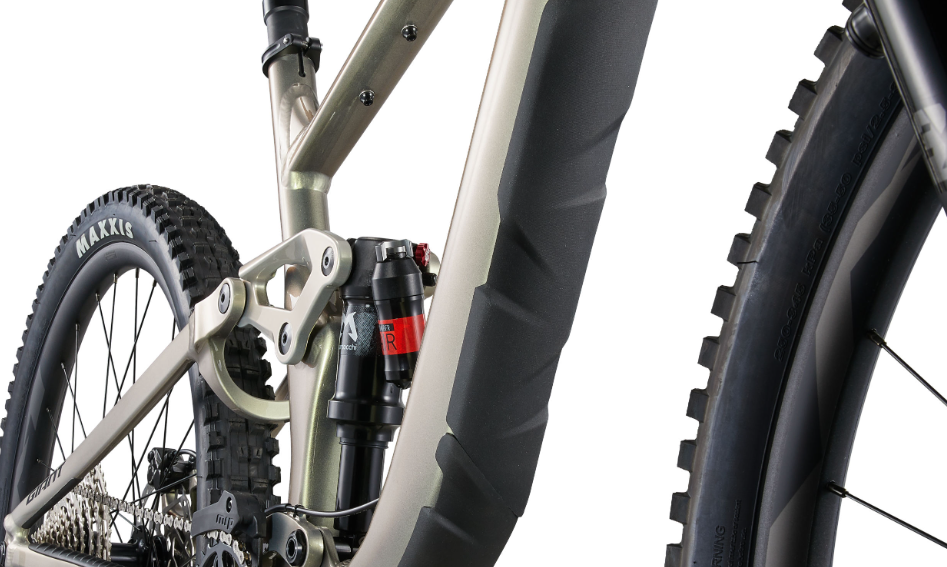

Tubeless prepared, 3M tailgate protector, down tube and chainstay protection |
