Specification

Details

Model

Trance X Advanced SX

Vehicle Category

Mountain Bike

Application

Trail riding

Starting Price (2025)

$4,399 USD

Color Options

Kelp Forest/Chrome

Sizes

S, M, L, XL

Specification

Details

Frame

Advanced-Grade Composite front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset

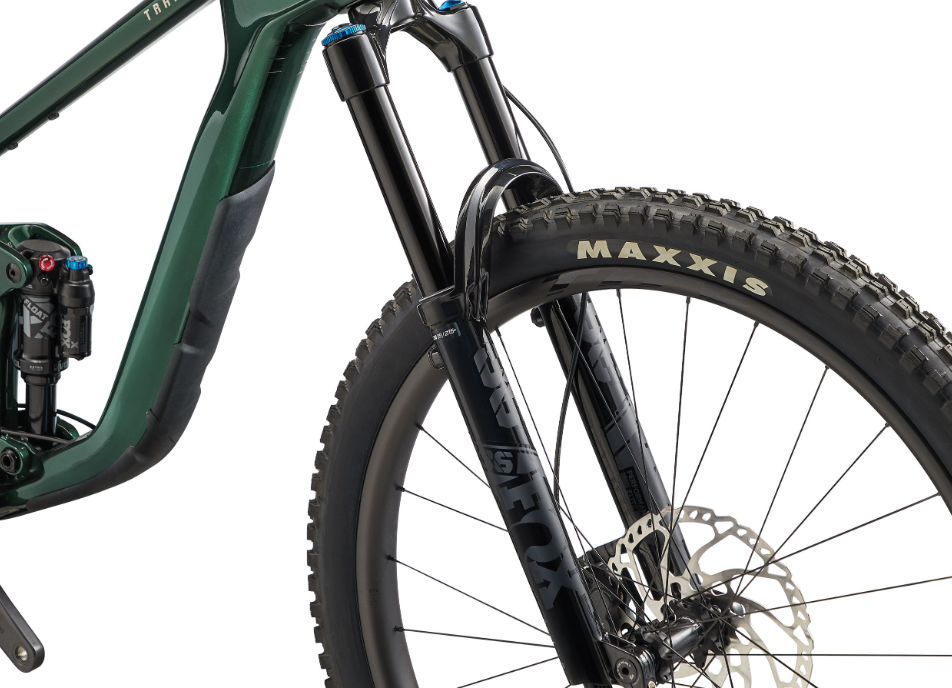

Fork

Fox 36 Float Performance Elite, 160mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

Rear Shock

Fox Float X Performance Elite, two-position LSC adjust, 185/55

Crankset

Shimano MT512-1, 30t, 55mm chainline, S:165mm, M:170mm, L:170mm, XL:170mm

Chain

KMC X-12

Bottom Bracket

Shimano, press fit

Shifters

Shimano SLX M-7100, 1x12

Rear Derailleur

Shimano SLX M-7100

Specification

Details

Seating

Giant Romero SL

Wheels/Tyres

Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [F], Maxxis Dissector 27.5x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless [R]

Wheel Size

29" front, 27.5" rear

Brakes

Shimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Brake Levers

Shimano Deore BL-M6100

Handlebar

Giant Contact TR35, alloy, 780x35mm, 20mm rise

Stem

Giant Contact SL 35, S:40mm, M:40mm, L:50mm, XL:50mm

Headset

Threadless, integrated

Saddle

Giant Romero SL

Seatpost

Contact Switch AT dropper, remote, S:110-140mm travel, M:140-170mm travel, L:170-200mm travel, XL:170-200mm travel

Grips

Giant Tactal Pro Single Lock-On, 132x35mm

Front Hub

Giant MTB alloy, six-bolt

Rear Hub

Giant MTB alloy, 72t POE, six-bolt, MicroSpline driver body

Rims

Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height

Spokes

Sapim, 28, straight pull, DBL Technology

Exterior Features

Tubeless prepared, 3M tailgate protector, down tube and chainstay protection

Weight

14.07kg (30lbs 13oz, size L)
