Specification

Details

Model

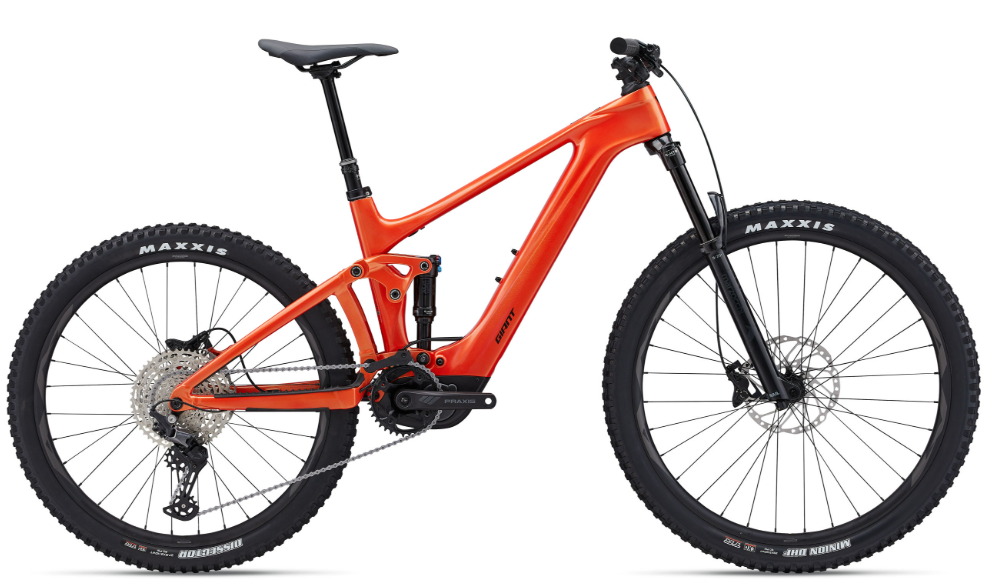

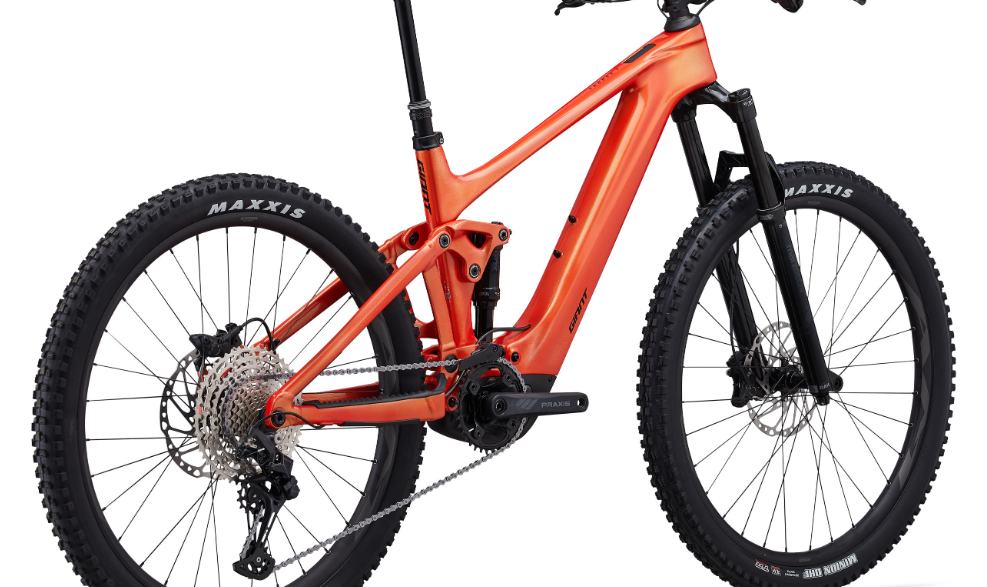

Trance X Advanced E+ Elite 3

Vehicle Category

Electric Mountain Bike

Application

Trail riding

Starting Price (2025)

$6,000 USD

Color Options

Helios Orange

Sizes

S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'10" - 6'3"), XL (6'2" - 6'6")

Specification

Details

Frame

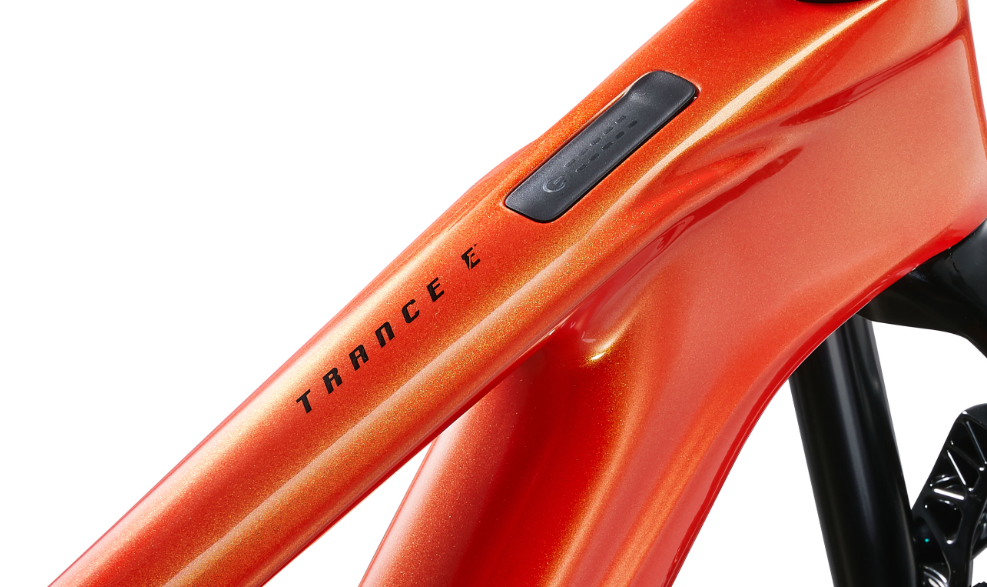

Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system

Fork

Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110

Rear Shock

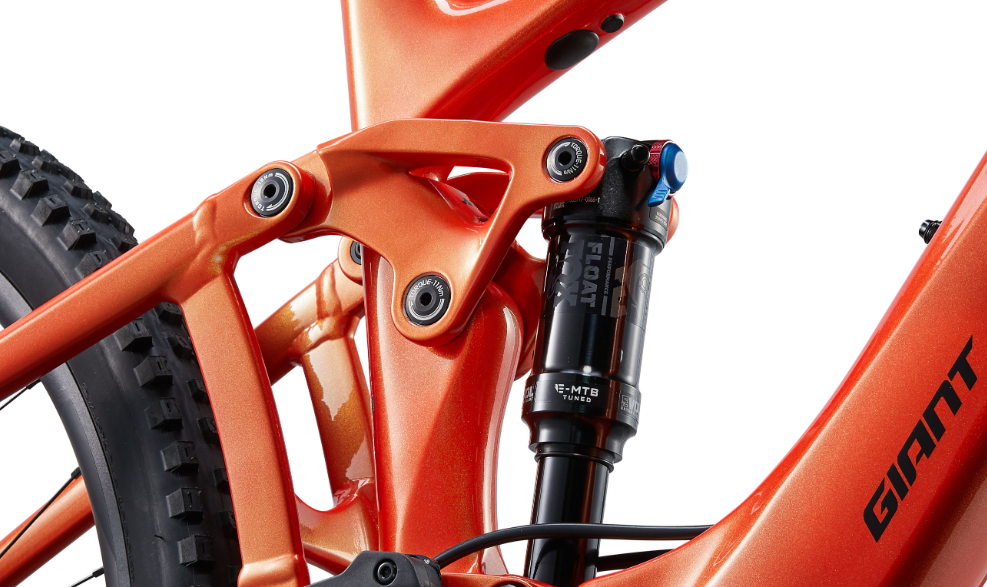

Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%

Crank

Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S: 160mm, M/L: 165mm, XL: 170mm)

Chain

KMC e.12 Turbo, EcoProteq, e-bike optimized

Shifters

Shimano Deore

Front Derailleur

MRP HD2 co-moulded chain guide

Rear Derailleur

Shimano Deore 12-speed, Shadow+

Specification

Details

Motor

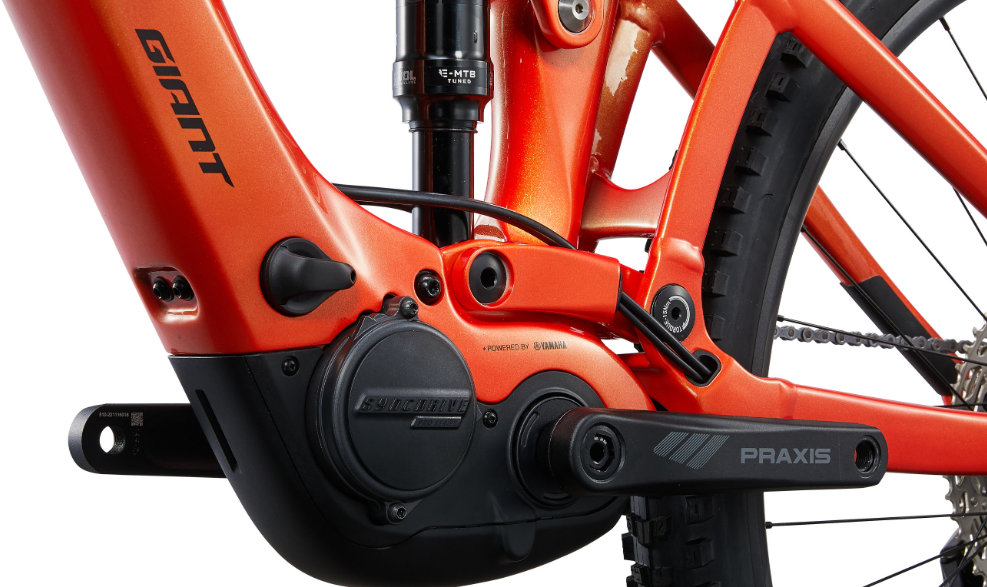

Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology

Controller

Giant RideControl Ergo3, grip integrated remote

Display

Giant RideControl GO, frame integrated LED console, Optional wireless ANT+ display

Battery

Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible

Connectivity

Optional wireless ANT+ display

Seating

Giant Romero

Fuel Type

Electric (EnergyPak 400Wh)

Range

21 miles (extreme), 43 miles (good), 80 miles (ideal)

Wheels/Tyres

Maxxis Minion DHF 29x2.50" Foldable, TLR, EXO [F], Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]

Wheel Size

29" [F], 27.5" [R]

Brakes

Shimano BR-MT420, 4-piston, hydraulic disc, 203mm [F/R]

Brake Levers

Shimano Deore, I-spec EV

Handlebar

Giant Contact SL 35 Trail, 35x780mm

Stem

Giant Contact SL 35

Headset

Giant integrated

Saddle

Giant Romero

Seatpost

Tranz-X Rad+ 30.9mm, 30mm travel adjustable (S: 120-150mm, M: 140-170mm, L/XL: 170-200mm)

Grips

Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL)

Front Hub

Shimano MT410 Boost, Center-Lock, 110x15

Rear Hub

Shimano MT410 Boost, Center-Lock, 148x12 Shimano Micro-Spline Drive Body Thru-axle

Rims

Giant AM30, Tubeless ready, 30mm inner width, 29" [F], 27.5" [R]

Spokes

Sapim E-Lite [R], Race [F], e-bike optimized

Exterior Features

Tubeless kit (liquid, valves, levers, manual, tool), Inner tube supplied, Optional Giant Recon series e-bike lights available and direct connectable
