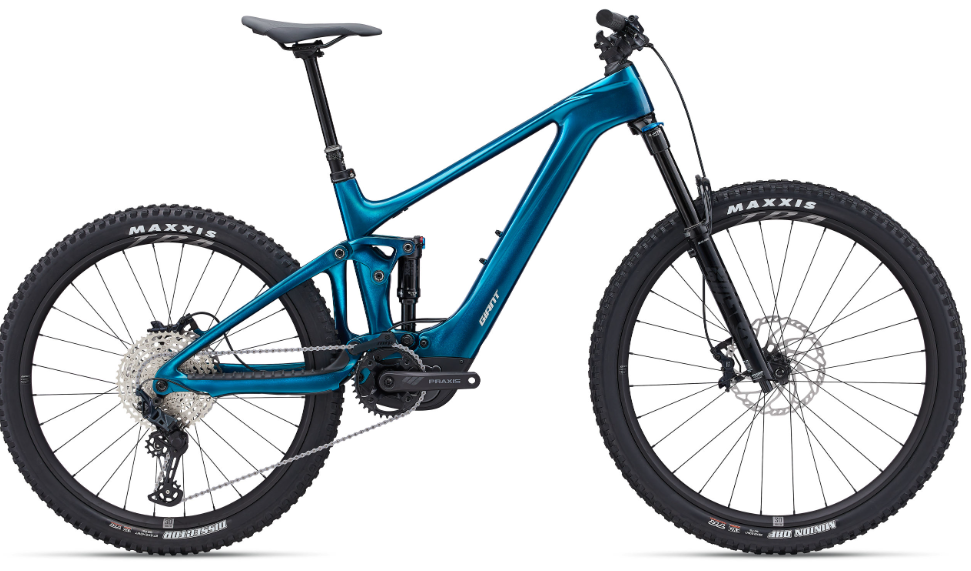

2024 Giant Trance X Advanced E+ Elite 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trance X Advanced E+ Elite 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$7,500 USD |
|
Color Options |
Sea Sparkle |
|
Sizes |
S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'10" - 6'3"), XL (6'2" - 6'6") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|
Fork |
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110 |
|
Rear Shock |
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned |
|

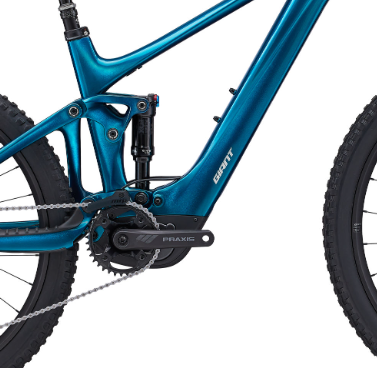

Crank |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160mm, M/L:165mm, XL:170mm) |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Shifters |
Shimano SLX |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano SLX, 12-speed, Shadow+ |
Components & Features
|
Specification |
Details |
|
Motor |
Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|
Battery |
Giant EnergyPak 400Wh, Aluminium casing, CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
|
Controller |
Giant RideControl Ergo3, grip integrated remote |
|
Display |
Giant RideControl GO, frame integrated LED console, optional wireless ANT+ display |
|
Seating |
Giant Romero |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.50" Foldable, TLR, EXO [F], Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R] |
|
Brake Levers |
Shimano SLX, I-spec EV |
|
Handlebar |
Giant Contact SL 35 Trail, 35x780mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Giant integrated |
|
Saddle |
Giant Romero |
|

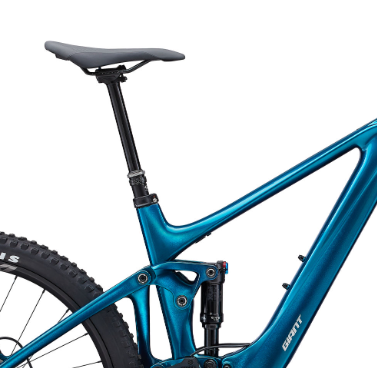

Seatpost |
Tranz-X Rad+ 30.9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|

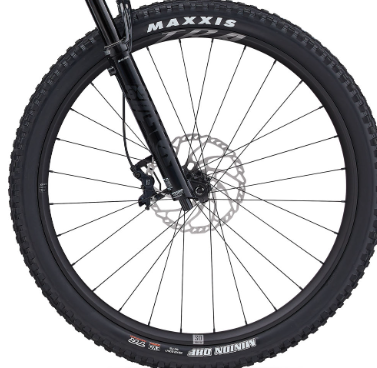

Front Hub |
Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, 110x15 |
|

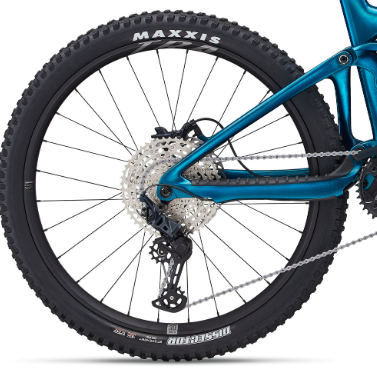

Rear Hub |
Giant TRA, 148x12, MicroSpline body, Thru-axle |
|
Rims |
Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), inner tube supplied, optional Giant Recon series e-bike lights (direct connectable) |
|
Weight |
20.5kg (45lbs 3oz) - Size L |
