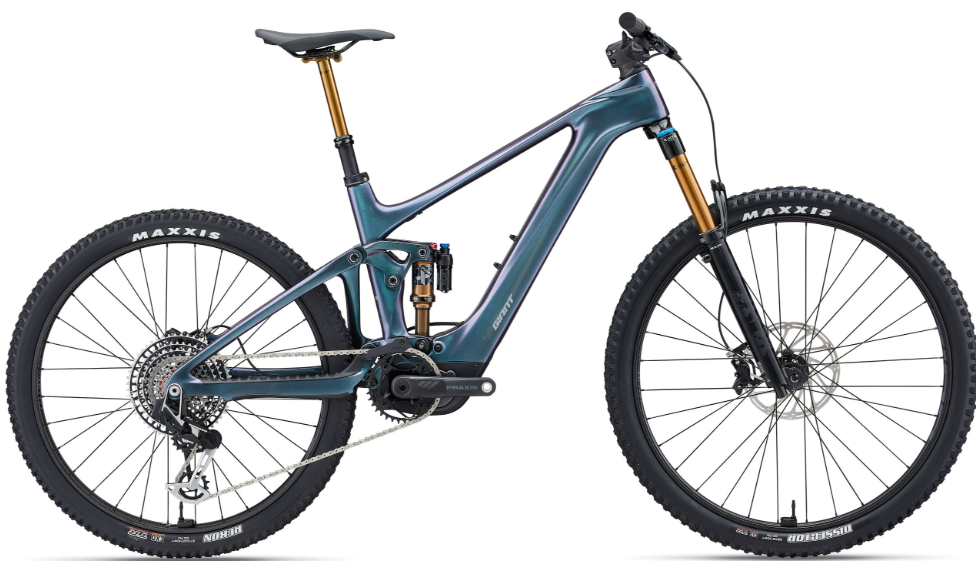

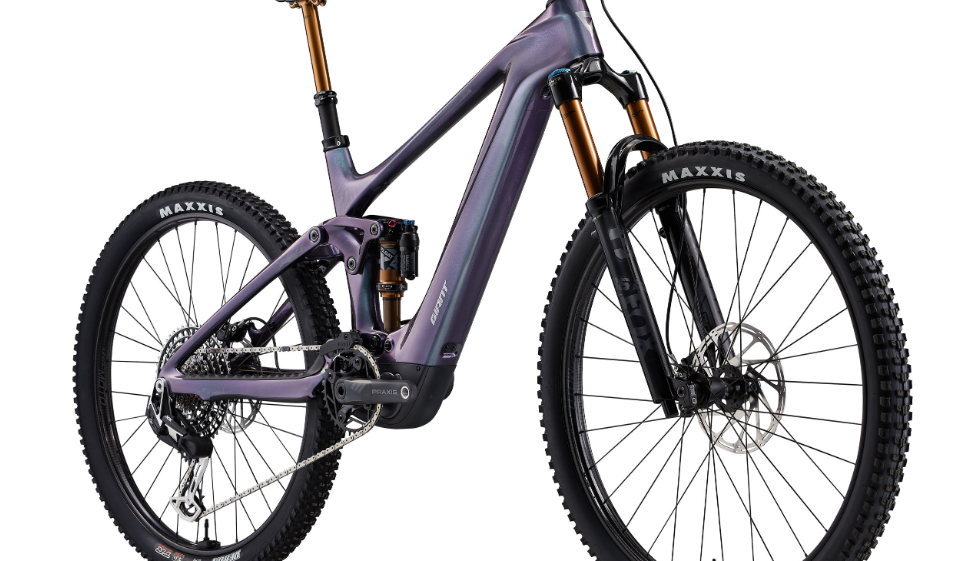

2024 Giant Trance X Advanced E+ Elite 0 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trance X Advanced E+ Elite 0 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$9,999 USD |
|
Color Options |
Blue Dragonfly |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|
Fork |

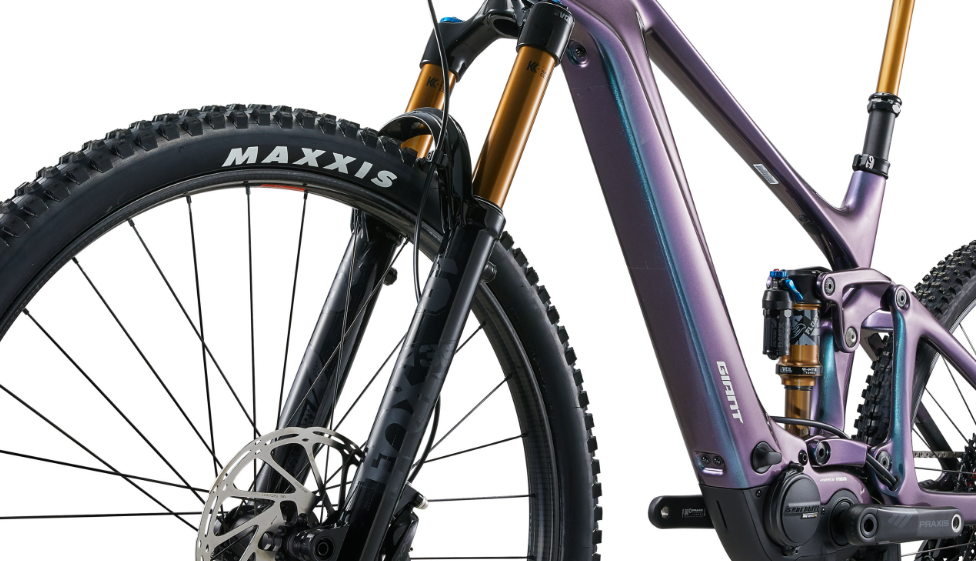

Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110 |
|
Rear Shock |
Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount |
|
Crankset |
SRAM Eagle Transmission chain ring 36T 104BCD, Praxis Carbon e-crank arms (S:160mm, M/L:165mm, XL:170mm) |
|
Chain |
SRAM XX Eagle Transmission, Powerlink |
|
Shifters |
SRAM AXS Rocker Paddle, wireless electronic shifting, 1 x 12 |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
SRAM XX Eagle Transmission, AXS |
Components & Features
|
Specification |
Details |
|
Motor |

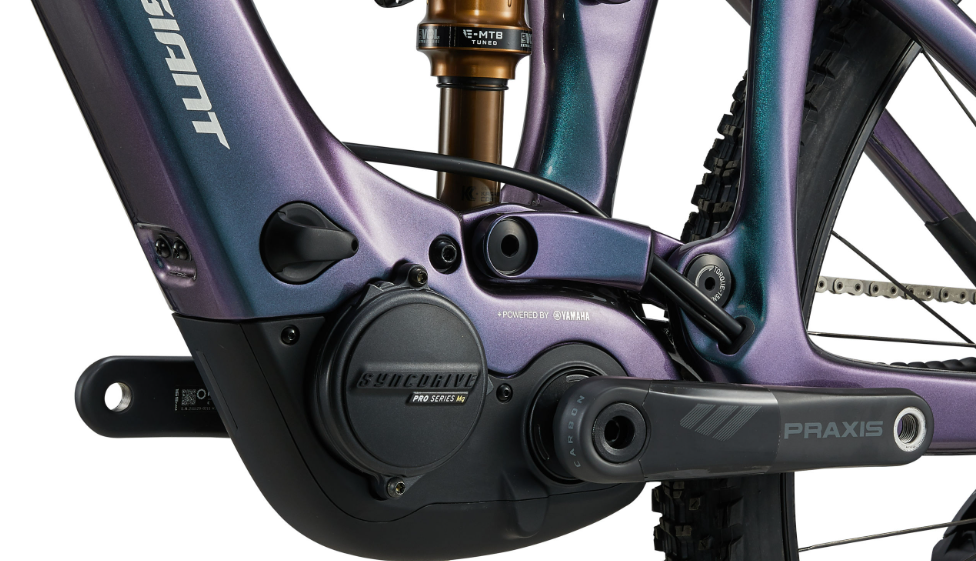

Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology |
|
Battery |
Giant EnergyPak 400Wh, Aluminium casing, Giant EnergyPak Plus 200 range extender compatible |
|
Seating |
Giant Romero SL, Neutral |
|
Fuel Type |
Electric (Giant EnergyPak 400Wh) |
|
Wheels/Tyres |
Maxxis Dissector 29x2.40" Foldable, TLR, EXO [F], Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
SRAM G2 Ultimate, 4-piston, hydraulic disc, 200mm [F], 180mm [R] |
|
Brake Levers |
SRAM Code RSC |
|
Handlebar |
Giant Contact SLR Trail, carbon, 800mm |
|
Stem |
Giant Contact SLR Trail, integrated, 40/45/50mm Reach, 7/9degree Sweep Adjust System |
|
Headset |
Threadless, integrated |
|
Saddle |
Giant Romero SL, Neutral |
|
Seatpost |
Fox Transfer Factory (S:125mm, M:150mm, L:175mm, XL:200mm) Fox MMX Remote |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|
Front Hub |
Zipp 3MOTO ZM2 |
|
Rear Hub |
Zipp 3MOTO ZM2 |
|
Rims |
Zipp 3MOTO, 29" [F], 27.5" [R], Carbon |
|
Spokes |
Zipp 3MOTO |
|
Exterior Features |
Tubeless kit, optional Giant Recon e-bike lights |
|
Weight |
19.24kg (42lbs 7oz, size S) |
