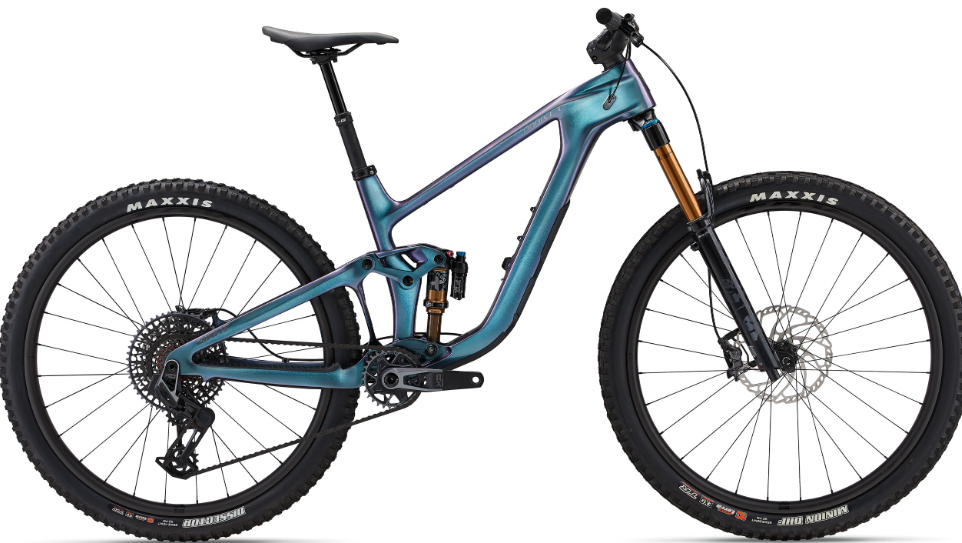

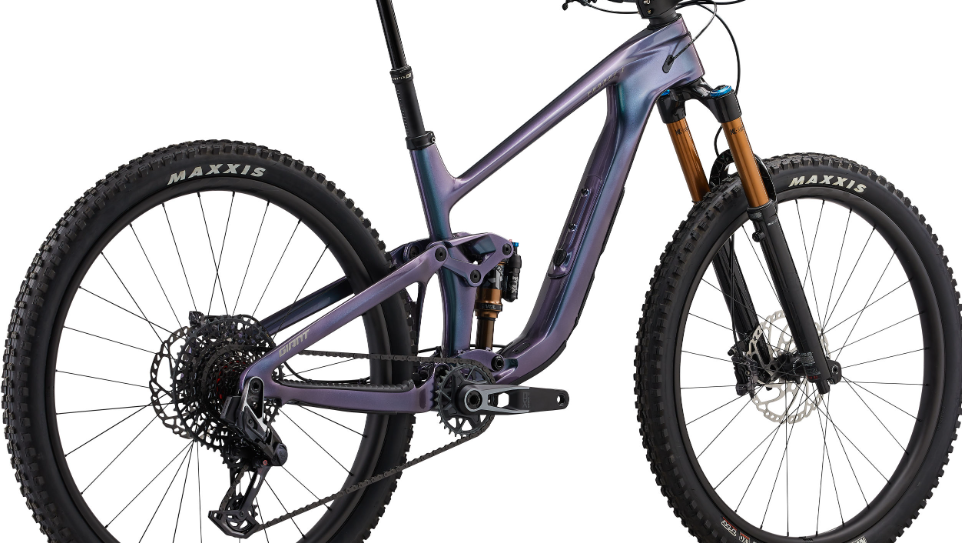

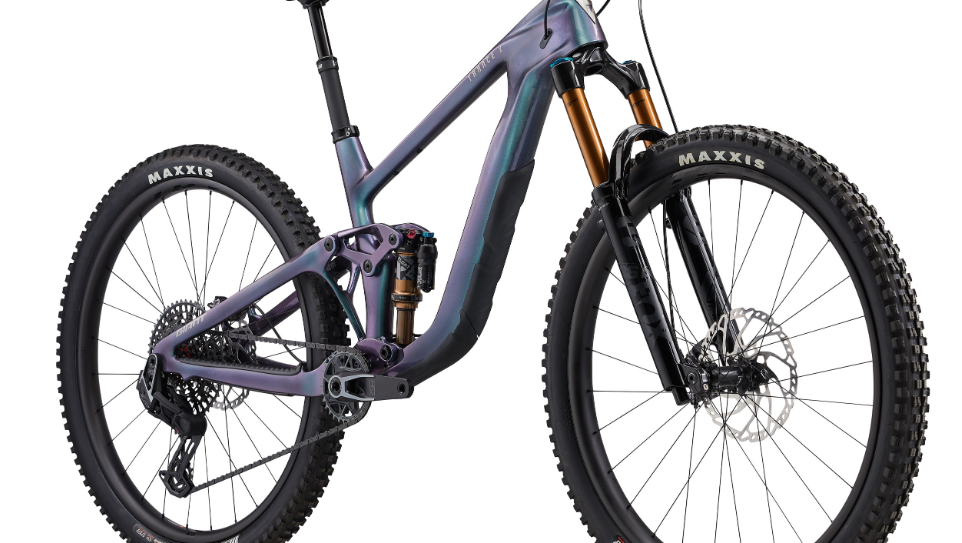

2024 Giant Trance X Advanced 0 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trance X Advanced 0 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$8,000 USD |
|
Color Options |
Blue Dragonfly/Chrome |
|
Sizes |
S (5'4" - 5'8"), M (5'7" - 5'11"), L (5'10" - 6'2"), XL (6'2" - 6'5") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

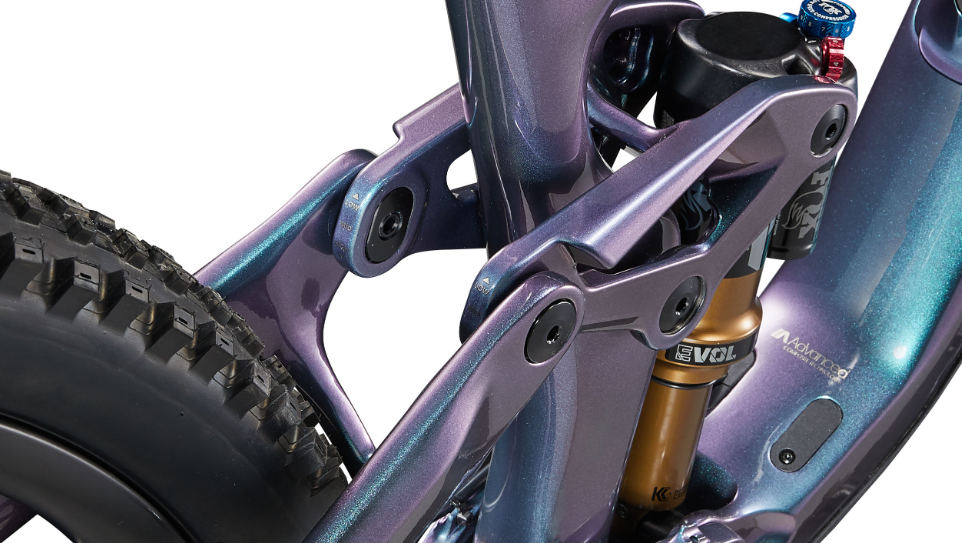

Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset |
|
Fork |
Fox 36 Factory, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |
|
Rear Shock |

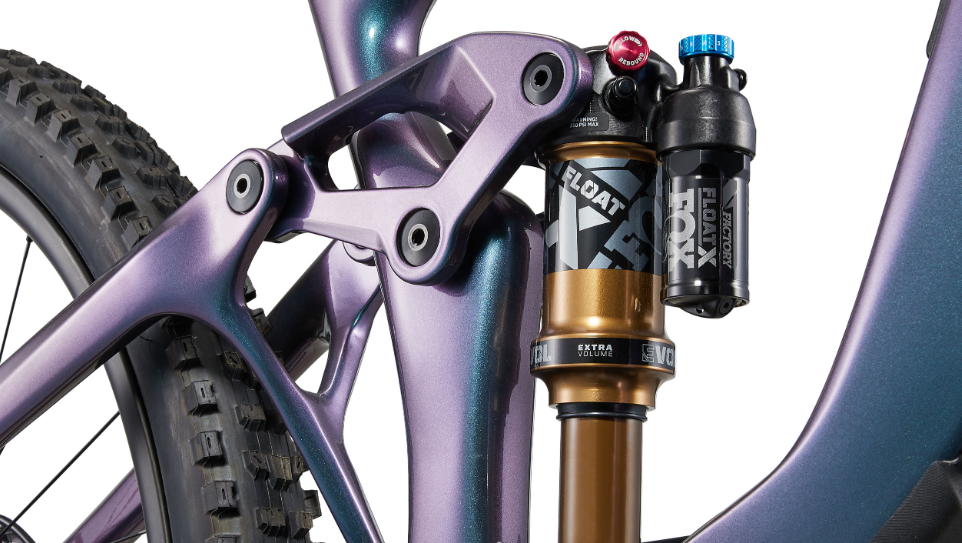

Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant |
|
Crank |
SRAM XO, T-Type, 30t, 55mm chainline (S:165mm, M:170mm, L:170mm, XL:170mm) |
|
Chain |
SRAM XO, T-Type |
|
Bottom Bracket |
SRAM DUB, press fit |
|
Shifters |
SRAM AXS Pod, 1x12 |
|
Rear Derailleur |
SRAM XO Eagle AXS, T-Type |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Romero SL |
|
Cargo Capacity |
Integrated down tube storage, under-top tube storage mounts |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [F], Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless [R] |
|
Wheel Size |
29" front, 29" or 27.5" rear |
|
Brakes |
Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano Deore XT BL-M8100 |
|
Handlebar |
Giant Contact SLR Trail Integrated, composite, 800x35mm, 20mm rise |
|
Stem |
Giant Contact Integrated SLR Trail (S:40mm, M:40mm, L:50mm, XL:50mm) |
|
Headset |
Giant integrated |
|
Saddle |
Giant Romero SL |
|
Seatpost |
Contact Switch AT dropper, remote (S:110-140mm travel / 30.9x395mm, M:140-170mm travel / 30.9x470mm, L:170-200mm travel / 30.9x530mm, XL:170-200mm travel / 30.9x530mm) |
|
Grips |
Giant Tactal Pro Single Lock-On, 132x35mm |
|
Front Hub |
Giant TRX 0 29 Carbon WheelSystem |
|
Rear Hub |
Giant TRX 0 29 Carbon WheelSystem |
|
Rims |
Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
|
Spokes |
Sapim, 28, straight pull, DBL Technology |
|
Exterior Features |
Tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
