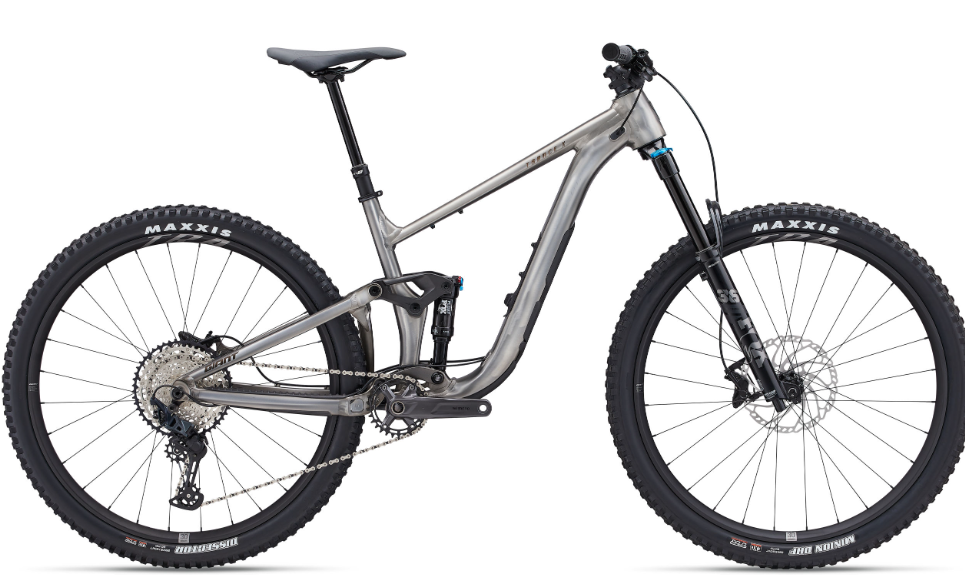

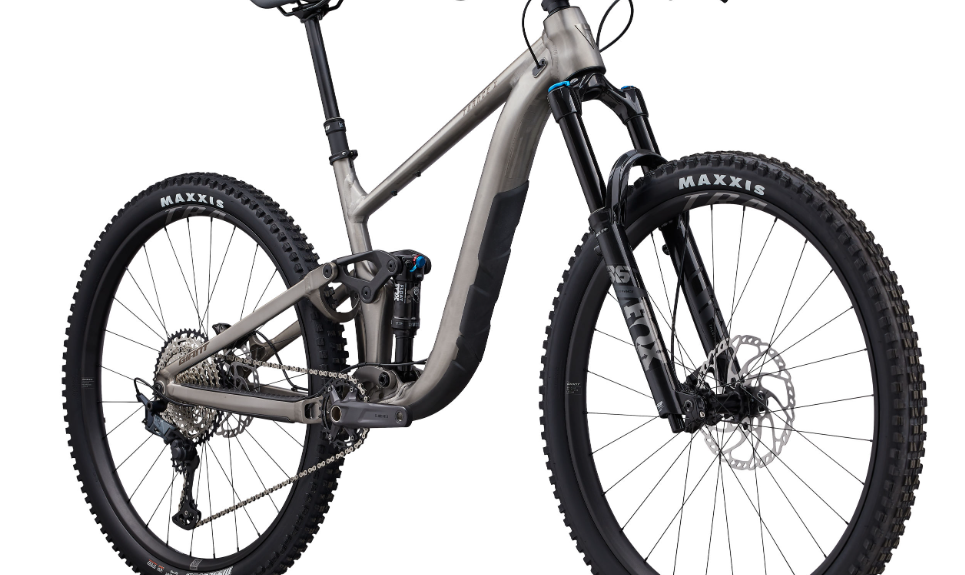

2024 Giant Trance X 1 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trance X 1 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$3,900 USD |
|
Color Options |
Smoke Metal/Chrome |
|
Sizes |
S (5'4" - 5'8"), M (5'7" - 5'11"), L (5'10" - 6'2"), XL (6'2" - 6'5") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

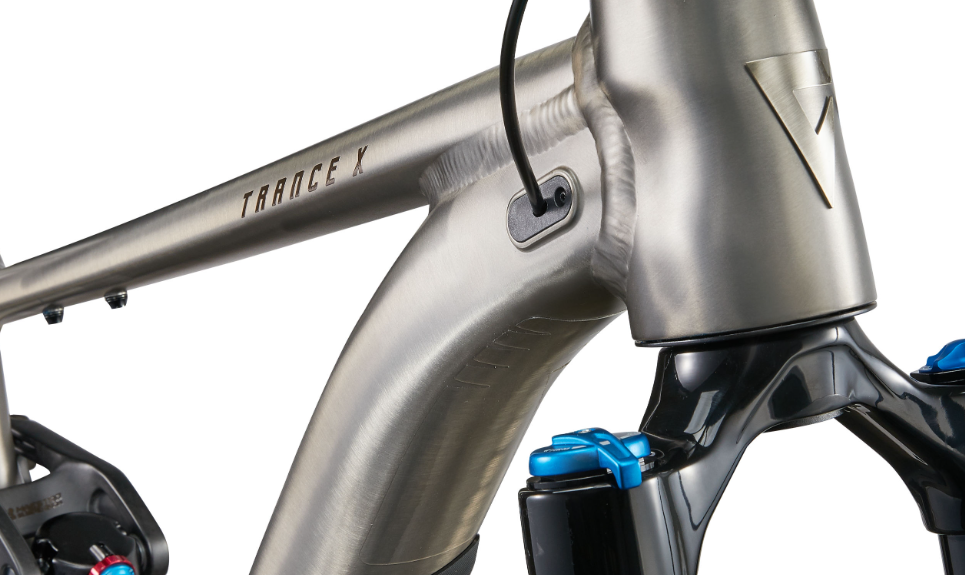

ALUXX SL-Grade Aluminum front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts |
|
Fork |
Fox 36 Float Performance, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset |
|
Rear Shock |
Fox Float Performance, 185/52.5, custom tuned for Giant |
|
Crank |

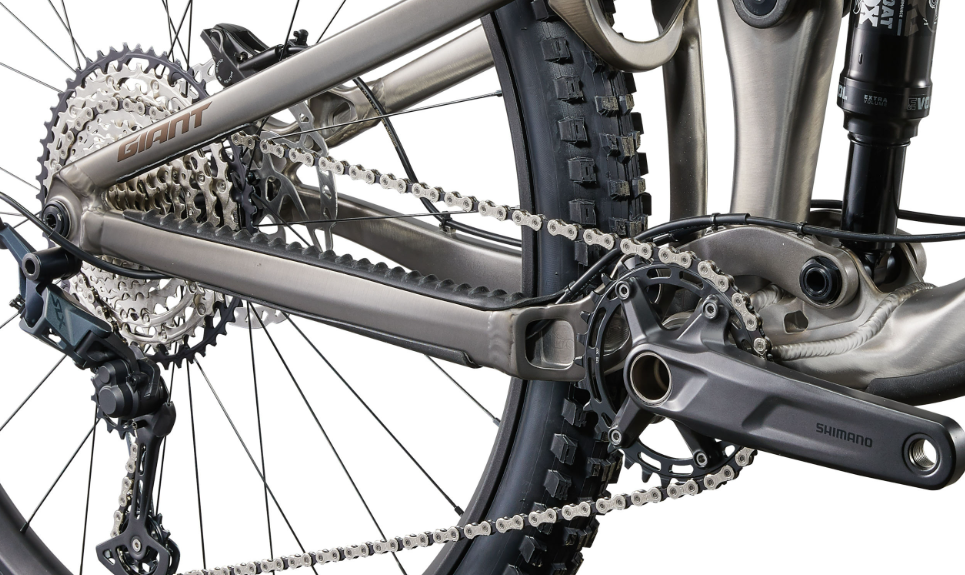

Shimano MT512-1, 30t, 55mm chainline (S:165mm, M:170mm, L:170mm, XL:170mm) |
|
Chain |
KMC X-12 |
|
Bottom Bracket |
Shimano Press Fit |
|
Shifters |
Shimano SLX M-7100, I-Spec EV, 1x12 |
|
Rear Derailleur |
Shimano SLX M-7100, Shadow + |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Romero SL |
|
Cargo Capacity |
Integrated down tube storage, under-top tube storage mounts |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.5 WT, 60 tpi, EXO, TR [F], Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless [R] |
|
Wheel Size |
29" front, 29" or 27.5" rear |
|
Brakes |
Shimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
|
Brake Levers |
Shimano Deore BL-MT501 |
|
Handlebar |
Giant Contact TR35, alloy, 780x35mm, 20mm rise |
|
Stem |
Giant Contact SL 35 (S:40mm, M:40mm, L:50mm, XL:50mm) |
|
Headset |
Giant integrated |
|
Saddle |
Giant Romero SL |
|
Seatpost |
Contact Switch AT dropper, remote (S:110-140mm travel / 30.9x395mm, M:140-170mm travel / 30.9x470mm, L:170-200mm travel / 30.9x530mm, XL:170-200mm travel / 30.9x530mm) |
|
Grips |
Giant Tactal Pro Single Lock-On, 132x35mm |
|
Front Hub |
Giant Alloy, 6 Bolt |
|
Rear Hub |
TRA HE, Alloy, 72 Pawl Driver, 6 bolt |
|
Rims |
Giant TRA, 29" hookless aluxx wheelsystem, 30mm IW, 40mm OW, 21mm H, 72t POE, 28 SP spokes, DBL technology, MS driver body |
|
Spokes |
Sapim, 28, straight pull, DBL Technology |
|
Exterior Features |
Tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
|
Weight |
14.9 kg (32 lbs 13 oz) - Size M |
