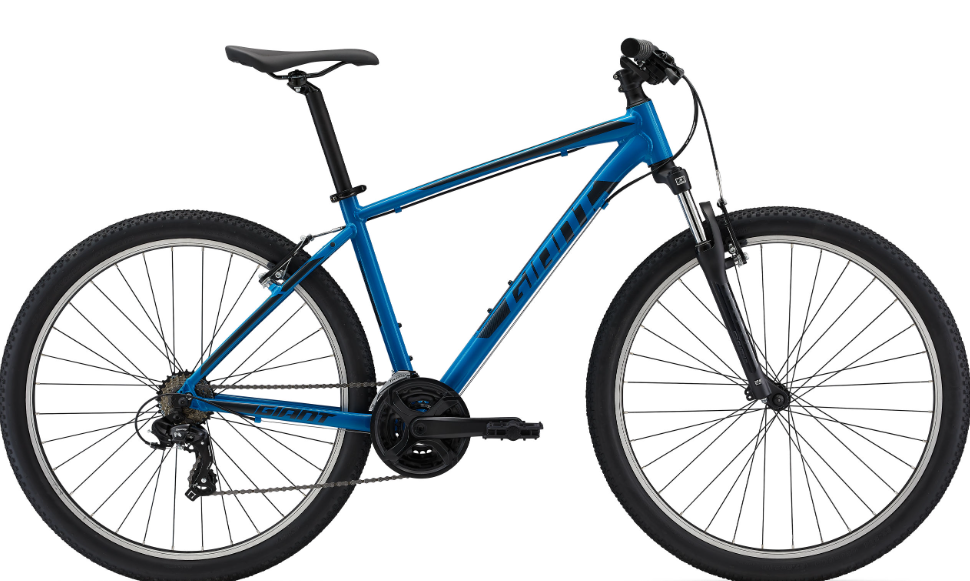

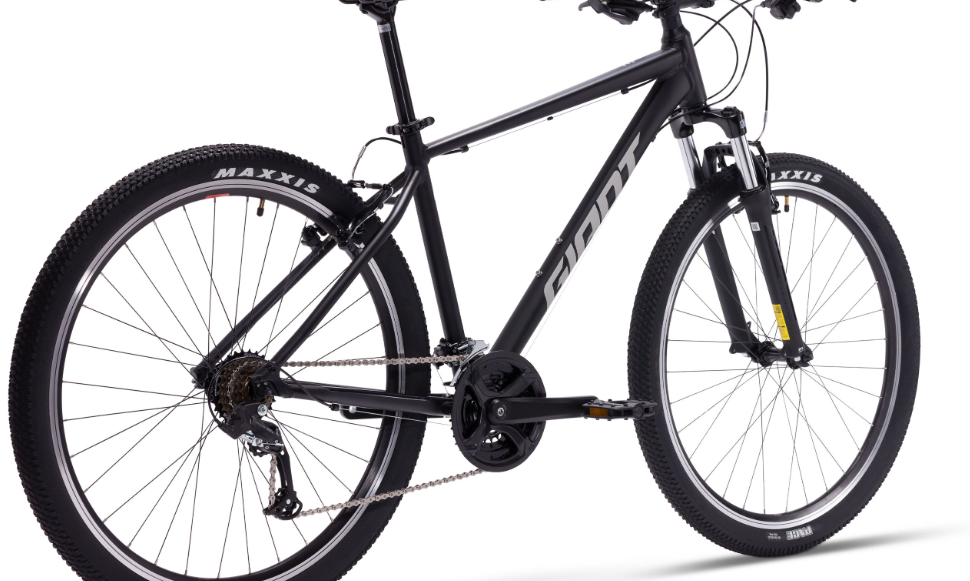

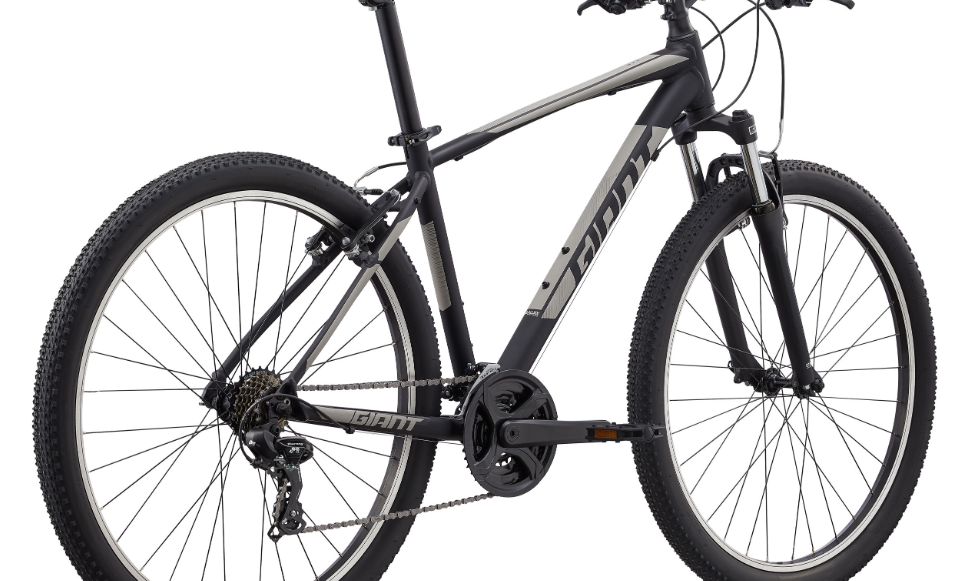

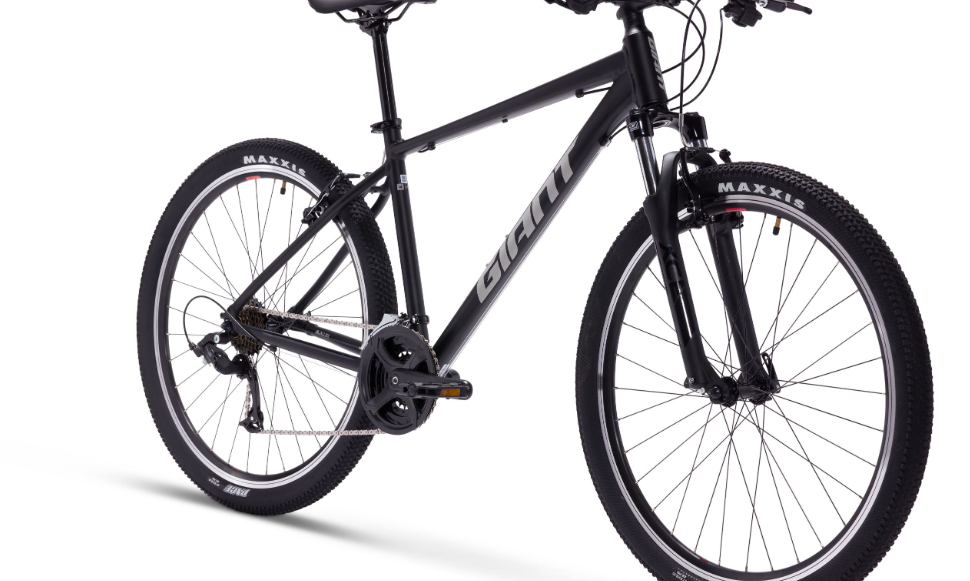

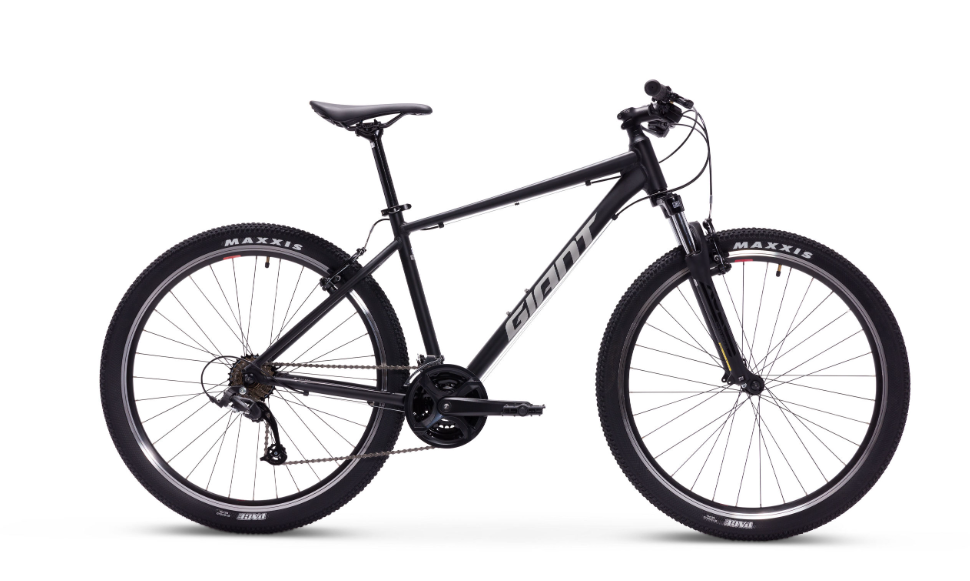

2022 Giant Talon 4 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Talon 4 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Cross country riding |
|
Starting Price (2025) |
$630 USD |
|
Color Options |
Metallic Black, Metal |
|
Sizes |
XS (5'1" - 5'5", 27.5"), S (5'4" - 5'8", 27.5" or 29"), M (5'7" - 5'10", 27.5" or 29"), L (5'9" - 6'1", 29"), XL (6'0" - 6'4", 29") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX-Grade Aluminum, disc |
|
Fork |
SR Suntour XCE, steel steerer (XS: 80mm travel (27.5"), S: 80mm travel (27.5") or 100mm travel (29"), M: 80mm travel (27.5") or 100mm travel (29"), L: 100mm travel (29"), XL: 100mm travel (29")) |
|
Crank |
ProWheel A10XPP, 30t (27.5") or 32t (29") (XS: 165mm (27.5"), S: 170mm (27.5") or 170mm (29"), M: 170mm (27.5") or 175mm (29"), L: 175mm (29"), XL: 175mm (29")) |
|
Chain |
KMC 8.3 |
|
Bottom Bracket |
Cartridge |
|
Shifters |
microSHIFT SL-M718, 1x8 |
|
Rear Derailleur |
microSHIFT RD-M619 |
Components & Features
|
Specification |
Details |
|
Seating |
Giant custom |
|
Cargo Capacity |
Integrated mounts for racks, fenders, or rear kickstand |
|
Wheels/Tyres |
Kenda Booster 27.5 or 29x2.2", wire bead |
|
Wheel Size |
27.5" (XS, S, M), 29" (S, M, L, XL) |
|
Brakes |
TKB-172, mechanical [F]160mm, [R]160mm rotors |
|
Brake Levers |
RS360A, mechanical |
|
Handlebar |
Giant Connect Trail, 31.8mm (XS: 730mm (27.5"), S: 780mm (27.5") or 780mm (29"), M: 780mm (27.5") or 780mm (29"), L: 780mm (27.5") or 780mm (29"), XL: 780mm (29")) |
|
Stem |
Giant Sport, 7-degree (XS: 40mm (27.5"), S: 50mm (27.5") or 50mm (29"), M: 60mm (27.5") or 60mm (29"), L: 70mm (27.5") or 70mm (29"), XL: 80mm (29")) |
|
Headset |
Giant integrated |
|
Saddle |
Giant custom |
|
Seatpost |
Giant Sport, 30.9 (XS: 300mm (27.5"), S: 300mm (27.5") or 375mm (29"), M: 375mm (27.5") or 375mm (29"), L: 375mm (27.5") or 375mm (29"), XL: 375mm (29")) |
|
Grips |
Giant Sole-O |
|
Front Hub |
Alloy, ball bearing |
|
Rear Hub |
Alloy, ball bearing |
|
Rims |
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
|
Spokes |
Stainless, 14g |
|
Pedals |
MTB caged |
|
Exterior Features |
2.4" max tire size, integrated chainstay protector, dropper post compatible, internal cable routing |
|
Weight |
14.66 kg (32 lb 5 oz) - Size XL |
