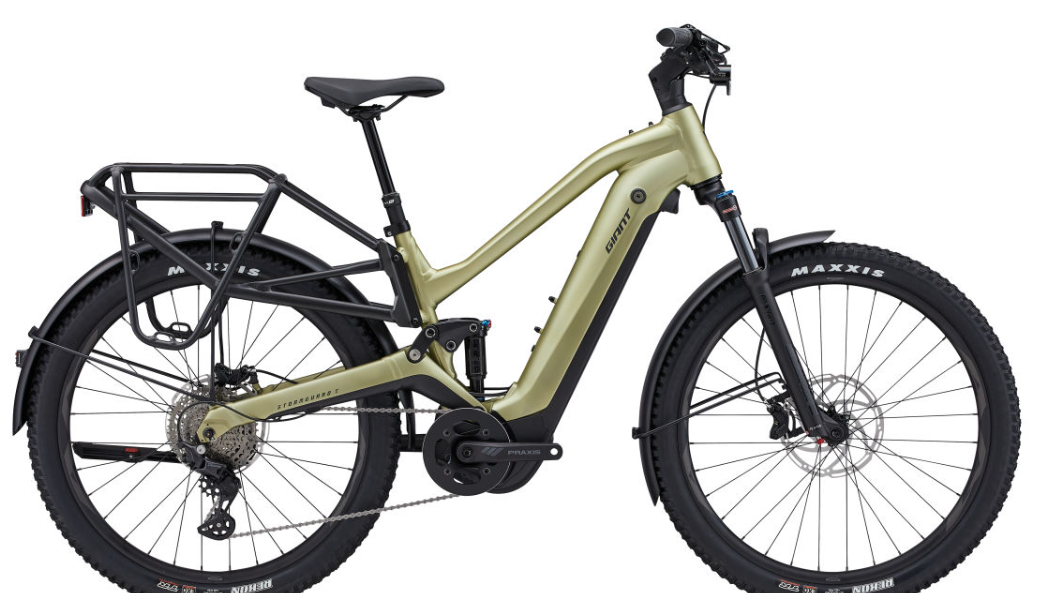

2024 Giant Stormguard E+ 3 – Electric Adventure Bike
Specifications
|
Specification |
Details |
|
Model |
Stormguard E+ 3 |
|
Vehicle Category |
Electric Adventure Bike |
|
Application |
Versatile riding (roads, gravel, dirt, multi-day adventures) |
|
Starting Price (2025) |
$6,000 USD |
|
Color Options |
Bay Leaf |
|
Sizes |
S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'9" - 6'4"), XL (6'0" - 6'7") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL aluminum, 100mm Stable Link Suspension System, Overdrive 3, 1.8" - 1.5" head tube, w/ Integrated KSA18 kickstand mount, Giant EnergyPak Plus range extender compatible |
|
Fork |

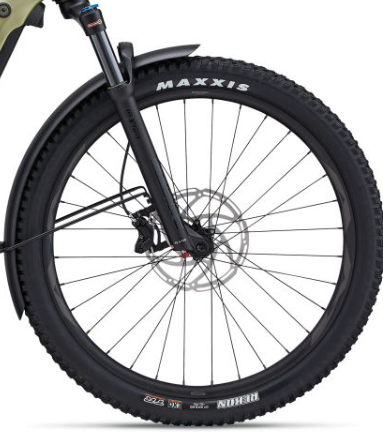

SR Suntour XCR 34 Boost 2-CR Air 29, 100mm travel, 1.125"-1.5" taper steerer, 15LH-110 |
|
Rear Shock |
SR Suntour Edge RC, 165x38mm, trunnion |
|
Crank |
38T Steel Narrow/Wide chainring, Praxis e-Cadet crankarm set |
|
Chain |
Shimano, LinkGlide, CN-LG500 |
|
Shifters |
Shimano Cues, LinkGlide, Rapidfire Plus |
|
Rear Derailleur |
Shimano Deore LinkGlide + |
Components & Features
|
Specification |
Details |
|
Motor |

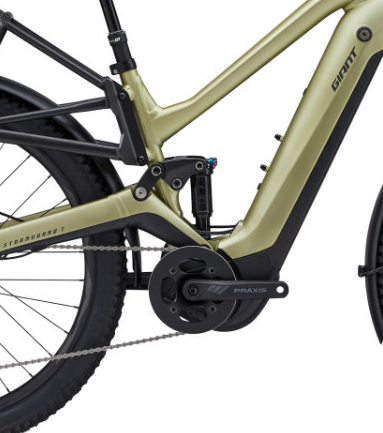

Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed: 20MPH |
|
Controller |
Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 manual support levels, USB-C (10W) |
|
Display |
Giant RideDash EVO, high-angle visibility, 3" full color LCD display, on-board navigation |
|
Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible |
|
Charger |
Giant EnergyPak 6A smart charger, 60% in 2:15h |
|
Connectivity |
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
|
Seating |
Selle Royal Vivo Ergo GTS |
|
Fuel Type |
Electric (EnergyPak 800Wh) |
|
Range |
43 miles (extreme), 86 miles (good), 155 miles (ideal) |
|
Cargo Capacity |
Suspended carrier system rear, MIK system (up to 44 lb), up to 3 water bottle accessory and top tube gear bag mounts |
|
Wheels/Tyres |
Maxxis Rekon 27.5x2.6", 60TPI Foldable TLR EXO |
|
Wheel Size |
27.5" |
|
Brakes |
Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Tektro HD-M750 |
|
Handlebar |
Giant Contour Comfort Riser 31.8x720mm |
|
Stem |
Giant Contour EVO display integrated stem (S/M: 80mm, L/XL: 100mm) |
|
Headset |
Giant integrated |
|
Saddle |
Selle Royal Vivo Ergo GTS |
|
Seatpost |

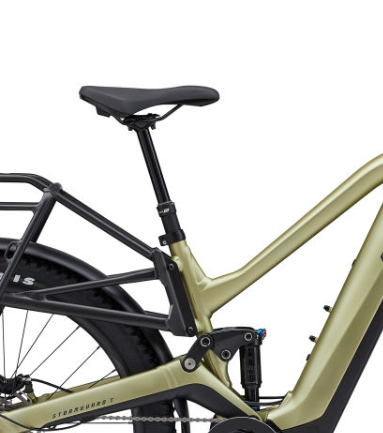

Giant Contact Switch, dropper, 30.9mm Vertical Remote |
|
Grips |
Giant Connect Ego Max Plus |
|
Front Hub |
Shimano HB-MT410 15x110 thru-axle Disc |
|

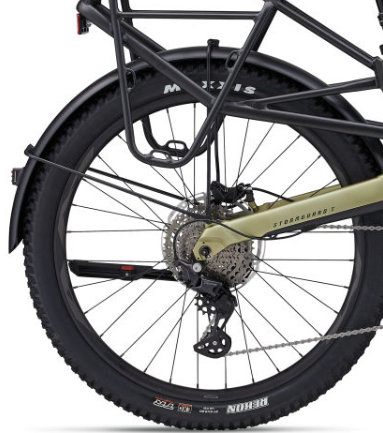

Rear Hub |
Giant eTracker ED26AR SB CL E-bike optimized |
|
Rims |
Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimized |
|
Spokes |
Sapim Strong [R], Race [F], e-bike optimized |
|
Pedals |
Nylon Platform |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Recon E HL100 StVZO [F], Supernova E3 Tail Light - fender integrated, ABUS Xplus battery lock |
|
Weight |
30 kg (66 lbs 2 oz) - Size L |
