Specification

Details

Model

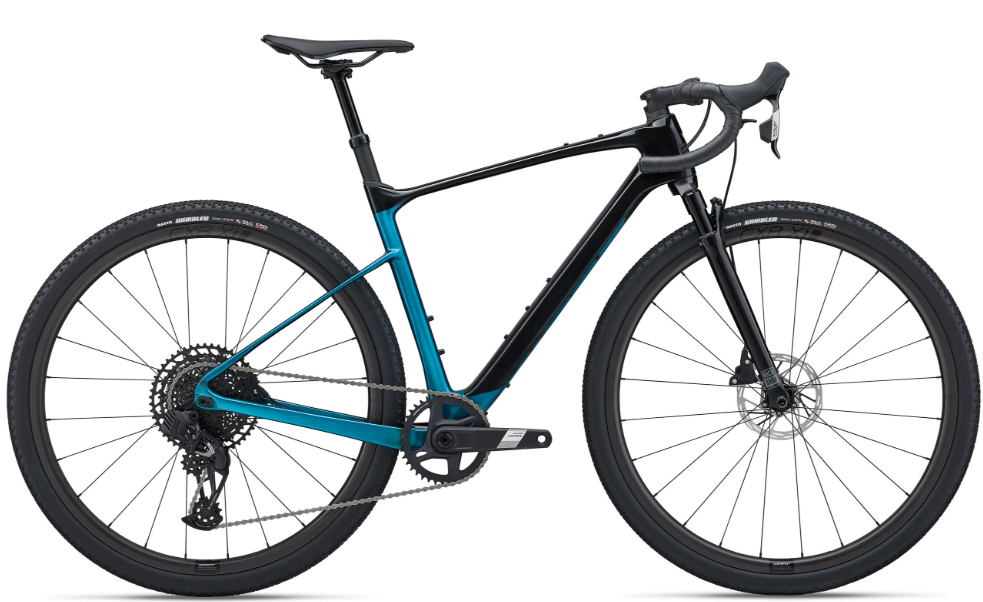

Revolt X Advanced Pro 2

Vehicle Category

Gravel Bike

Application

Gravel riding

Starting Price (2025)

$4,100 USD

Color Options

Black/Sea Sparkle

Sizes

XS (5'1" - 5'5"), S (5'3" - 5'7"), M (5'7" - 5'11"), M/L (5'9" - 6'1"), L (5'10" - 6'3"), XL (6'2" - 6'7")

Specification

Details

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

RockShox Rudy XPLR, 40mm, cartridge damper, 12x100mm thru-axle

Crank

SRAM Apex 1 Wide DUB, 1x40t (XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm)

Chain

SRAM CN-EAGL-NX-A1, 12-speed

Bottom Bracket

SRAM DUB, press fit

Shifters

SRAM Apex AXS, 1x12

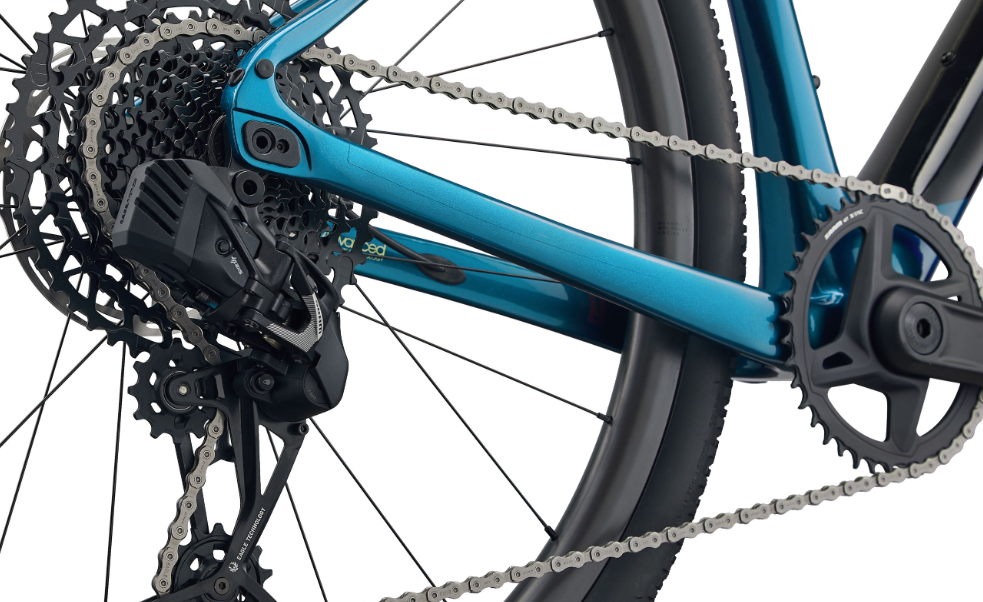

Rear Derailleur

SRAM X1 AXS Eagle w/ battery protector, 1x12

Specification

Details

Seating

Giant Approach SL

Wheels/Tyres

Maxxis Rambler, 700x45c, tubeless prepared

Wheel Size

700c

Brakes

SRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Apex AXS hydraulic, left lever dropper switch

Handlebar

Giant Contact SL XR D-Fuse, 31.8mm (XS: 44cm, S: 44cm, M: 46cm, M/L: 46cm, L: 48cm, XL: 48cm)

Stem

Giant Contact, 8-degree (XS: 50mm, S: 50mm, M: 60mm, M/L: 70mm, L: 70mm, XL: 80mm)

Headset

Giant integrated

Saddle

Giant Approach SL

Seatpost

Post Moderne Suspension dropper, 30.9mm with 30mm of suspension (XS: 365mm / 75mm drop, S: 415mm / 100mm drop, M: 415mm / 100mm drop, M/L: 415mm / 100mm drop, L: 415mm / 100mm drop, XL: 415mm / 100mm drop)

Grips

Stratus Lite 3.0

Front Hub

Giant CXR X alloy, CenterLock, 12mm thru-axle

Rear Hub

Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle

Rims

Giant CXR X1 WheelSystem, [F] 25.8mm, [R] 25.8mm

Spokes

Sapim Laser

Exterior Features

Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, flip chip dropout, 30.9mm round seatpost compatible

Weight

9.89 kg (21 lbs 13 oz) - Size M/L
