Specification

Details

Model

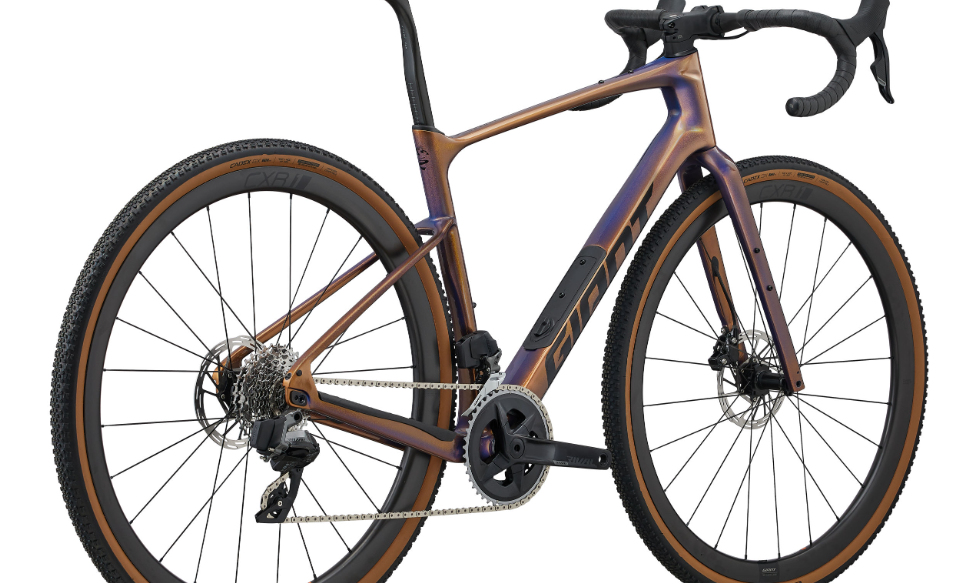

Revolt Advanced Pro 1

Vehicle Category

Gravel Bike

Application

Gravel riding

Starting Price (2025)

$5,000 USD

Color Options

Meteor Storm

Sizes

XS (5'1" - 5'5"), S (5'3" - 5'7"), M (5'7" - 5'11"), M/L (5'9" - 6'1"), L (5'10" - 6'3"), XL (6'2" - 6'7")

Specification

Details

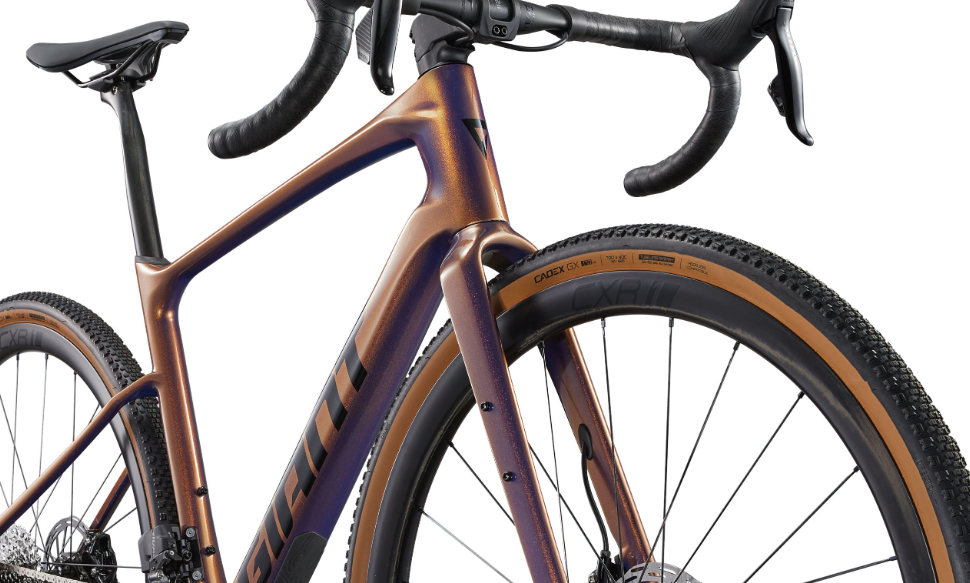

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork

Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

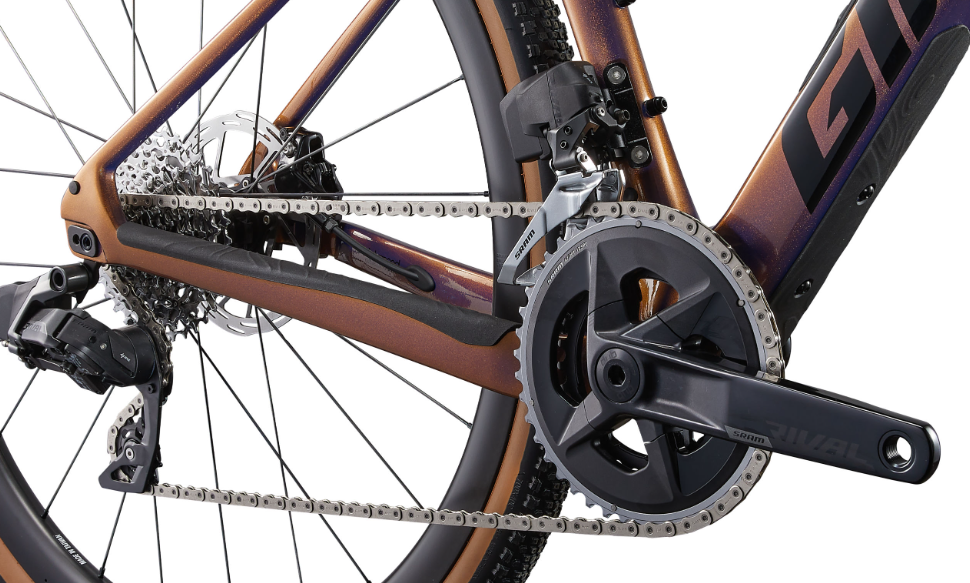

Crank

SRAM Rival D1 DUB, 30/43 (XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm)

Chain

SRAM Rival D1

Bottom Bracket

SRAM DUB, press fit

Shifters

SRAM Rival eTap AXS, 2x12

Front Derailleur

SRAM Rival eTap AXS

Rear Derailleur

SRAM Rival eTap AXS

Specification

Details

Seating

Giant Grit SL

Cargo Capacity

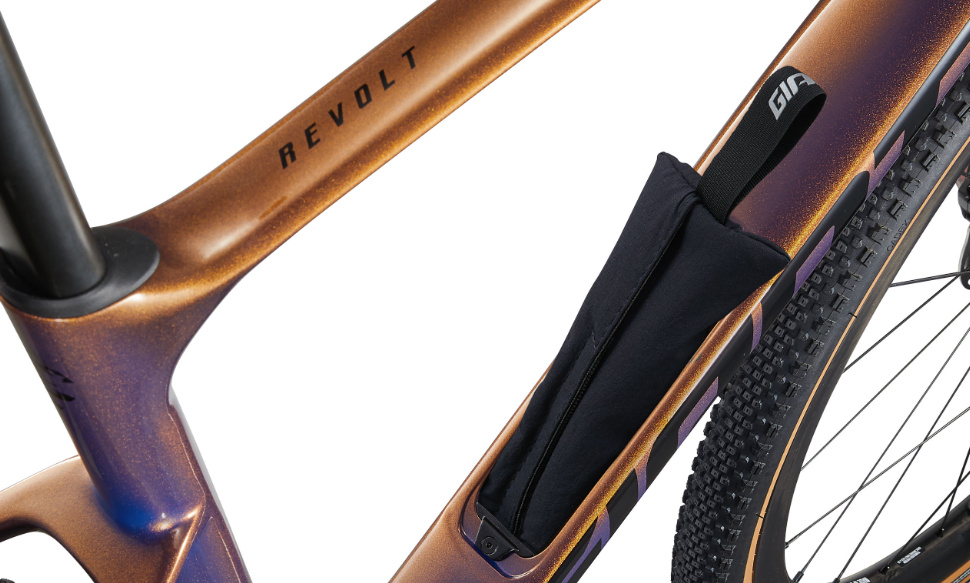

Down tube storage, integrated mounts on top tube, fork, and rear dropout for packs or fenders

Wheels/Tyres

CADEX GX, 700x40c, tubeless

Wheel Size

700c

Brakes

SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Rival eTap AXS hydraulic

Handlebar

Giant Contact SLR XR D-Fuse, 31.8mm (XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm)

Stem

Giant Contact AeroLight, -10 degree (XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm)

Headset

Giant integrated

Saddle

Giant Grit SL

Seatpost

Giant D-Fuse SLR, composite, -5/+15mm offset

Grips

Stratus Lite 3.0

Front Hub

Giant AR alloy, CenterLock, 12mm thru-axle

Rear Hub

Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle

Rims

Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Spokes

Sapim CX-Ray

Exterior Features

Tubeless prepared, 53mm max tire size in "long" flip chip position, 53mm max tire size in "short" flip chip position, flip chip dropout, in-frame storage bag, 30.9mm round or dropper seatpost compatible

Weight

8.45 kg (18 lbs 9 oz) - Size M
