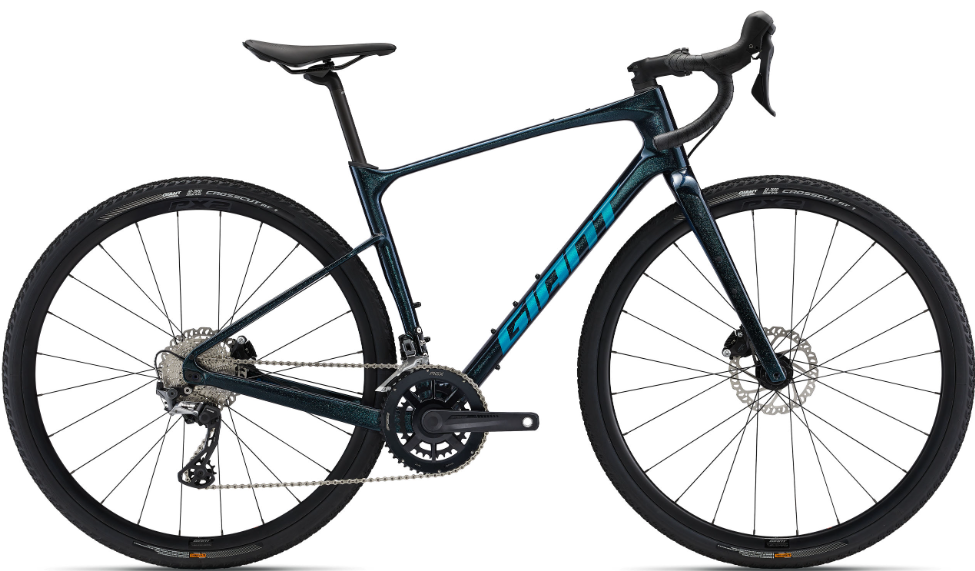

2022 Giant Revolt Advanced 2 – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Revolt Advanced 2 |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel riding |
|
Starting Price (2025) |
$1,999 USD |
|
Color Options |
Starry Night/Chameleon Neptune, Panther/Chameleon Saturn |
|
Sizes |
XS, S, M, M/L, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
|
Fork |
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
|
Crankset |
FSA Omega AGX, 32/48, XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm |
|
Chain |
KMC X11SL-1 |
|
Bottom Bracket |
Praxis, press fit |
|
Shifters |
Shimano GRX RX-600, 2x11 |
|
Front Derailleur |
Shimano GRX RX-810 |
|
Rear Derailleur |
Shimano GRX RX-810 |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Approach |
|
Wheels/Tyres |
Giant CrossCut AT 1, 700x38c, tubeless |
|
Wheel Size |
700c |
|
Brakes |
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
|
Brake Levers |
Shimano GRX RX-600 hydraulic |
|
Handlebar |
Giant Contact XR D-Fuse, 31.8mm, XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm |
|
Stem |
Giant Contact, 8-degree, XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm |
|
Headset |
Threadless, integrated |
|
Saddle |
Giant Approach |
|
Seatpost |
Giant D-Fuse, composite, 14mm offset |
|
Grips |
Stratus Lite 3.0 |
|
Front Hub |
Giant P-X2 Disc wheelset |
|
Rear Hub |
Giant P-X2 Disc wheelset |
|
Rims |
Giant P-X2 Disc wheelset |
|
Spokes |
Giant P-X2 Disc wheelset |
|
Exterior Features |
Tubeless prepared, flip chip dropout |
|
Weight |
9.62kg (21lbs 3oz, size M/L) |
