Specification

Details

Model

Revolt Advanced 0

Vehicle Category

Gravel Bike

Application

Gravel riding

Starting Price (2025)

$4,500 USD

Color Options

Snow Drift

Sizes

XS (5'1" - 5'5"), S (5'3" - 5'7"), M (5'7" - 5'11"), M/L (5'9" - 6'1"), L (5'10" - 6'3"), XL (6'2" - 6'7")

Specification

Details

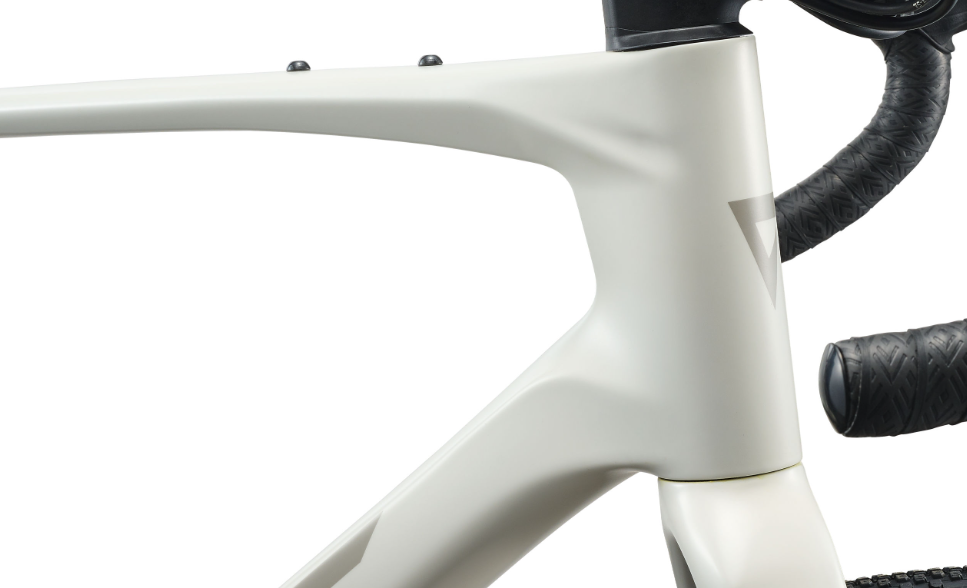

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

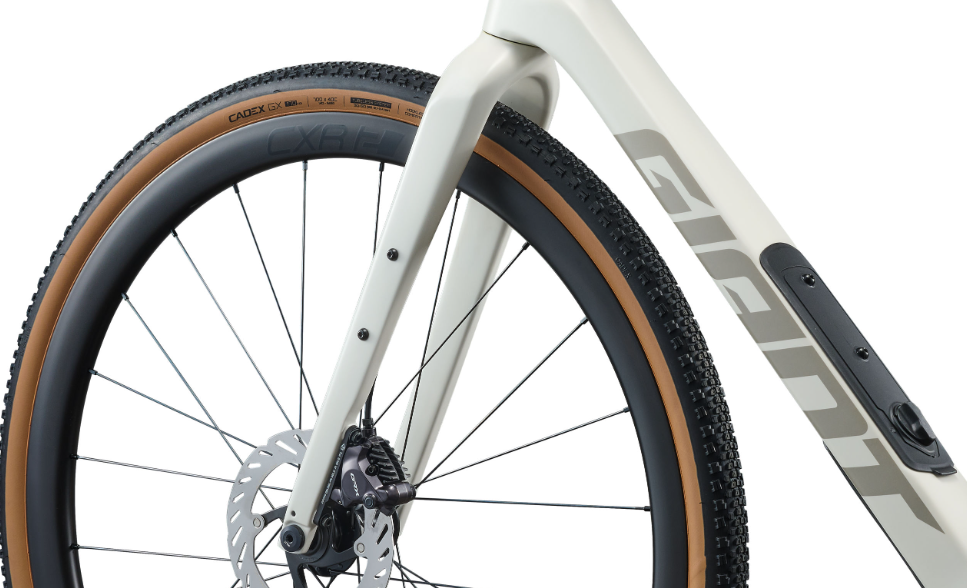

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

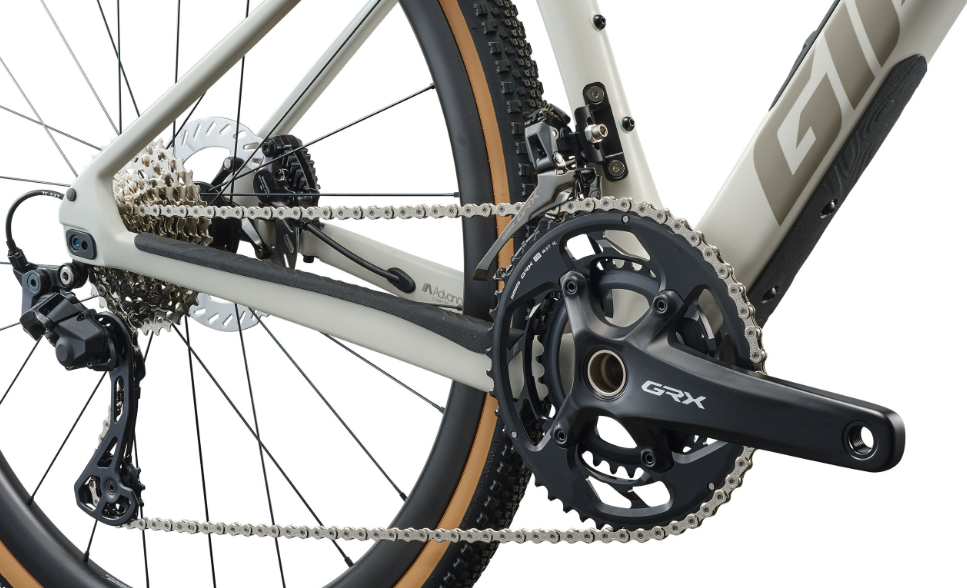

Crank

Shimano GRX RX-820, 31/48 (XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm)

Chain

KMC X12L-1

Bottom Bracket

Shimano, press fit

Shifters

Shimano GRX RX-820, 2x12

Front Derailleur

Shimano GRX RX-820

Rear Derailleur

Shimano GRX RX-820

Specification

Details

Seating

Giant Grit

Cargo Capacity

Down tube storage, integrated mounts on top tube, fork, and rear dropout for packs or fenders

Wheels/Tyres

CADEX GX, 700x40c, tubeless

Wheel Size

700c

Brakes

Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake Levers

Shimano GRX RX-820 hydraulic

Handlebar

Giant Contact XR D-Fuse, 31.8mm (XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm)

Stem

Giant Contact AeroLight, -10 degree (XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm)

Headset

Giant integrated

Saddle

Giant Grit

Seatpost

Giant D-Fuse SL, composite, -5/+15mm offset

Grips

Stratus Lite 3.0

Front Hub

Giant alloy, CenterLock, 12mm thru-axle

Rear Hub

Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Rims

Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm

Spokes

Sapim Sprint

Pedals

Platform pedal (select regions), not included (other regions)

Exterior Features

Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, flip chip dropout, in-frame storage bag, 30.9mm round or dropper seatpost compatible
