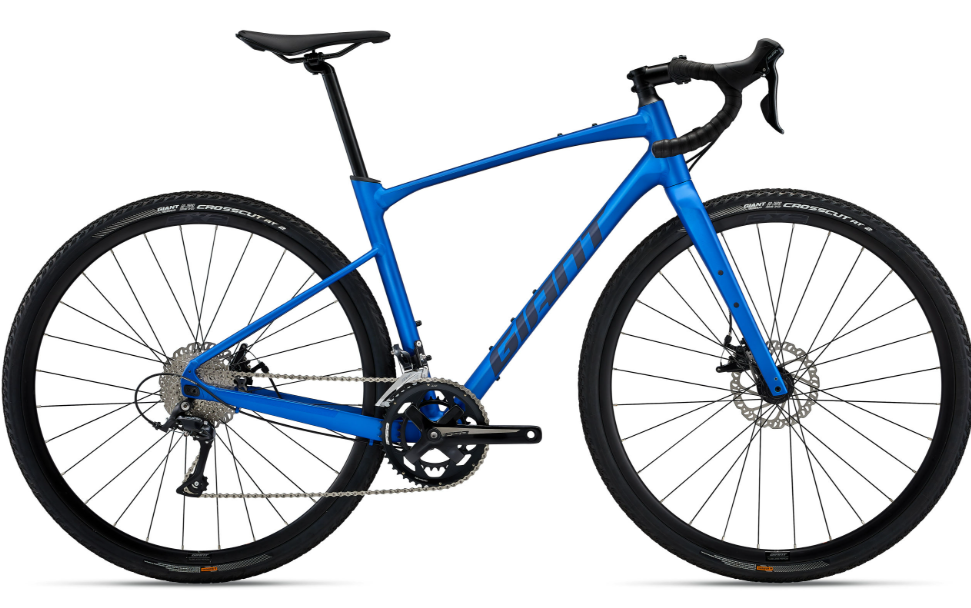

2022 Giant Revolt 2 – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Revolt 2 |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel riding |
|
Starting Price (2025) |
$1,400 USD |
|
Color Options |
Black Diamond, Sapphire |
|
Sizes |
XS (5'1" - 5'5"), S (5'3" - 5'7"), M (5'7" - 5'11"), M/L (5'9" - 6'1"), L (5'10" - 6'3"), XL (6'2" - 6'7") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|

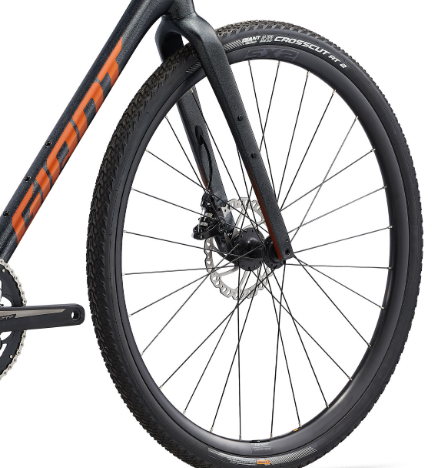

Fork |
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
|
Crank |
FSA Vero Pro, 32/48 (XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm) |
|
Chain |
KMC X9 with Missing Link |
|
Bottom Bracket |
Cartridge |
|
Shifters |
Shimano Sora, 2x9 |
|
Front Derailleur |
Shimano Sora |
|

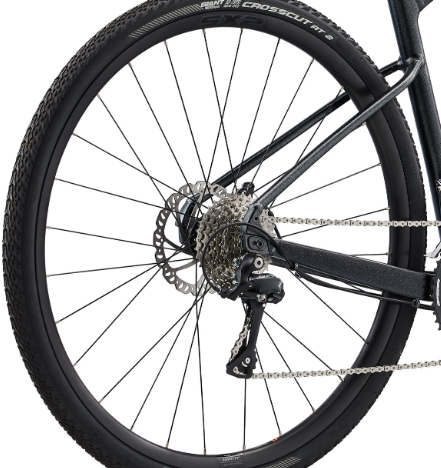

Rear Derailleur |
Shimano Sora, long cage |
Components & Features
|
Specification |
Details |
|
Seating |
Giant Approach |
|
Cargo Capacity |
Six water bottle mounts (two on down tube, two on fork, one on top tube, one on seat tube), rack and fender compatible |
|
Wheels/Tyres |
Giant CrossCut AT 2, 700x38c, tubeless |
|
Wheel Size |
700c |
|
Brakes |
Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
|
Brake Levers |
Shimano Sora |
|
Handlebar |
Giant Contact XR Ergo-Control, 31.8mm (XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm) |
|
Stem |
Giant Contact, 8-degree (XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm) |
|
Headset |
Giant integrated |
|
Saddle |
Giant Approach |
|
Seatpost |
Giant D-Fuse, alloy, 14mm offset |
|
Grips |
Cork tape with gel |
|
Front Hub |
Giant S-X2 Disc wheelset |
|
Rear Hub |
Giant S-X2 Disc wheelset |
|
Rims |
Giant S-X2 Disc wheelset |
|
Spokes |
Giant S-X2 Disc wheelset |
|
Exterior Features |
Tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position, flip chip dropout, 30.9mm round or dropper seatpost compatible |
|
Weight |
10.49 kg (23 lb 3 oz) - Size L |
