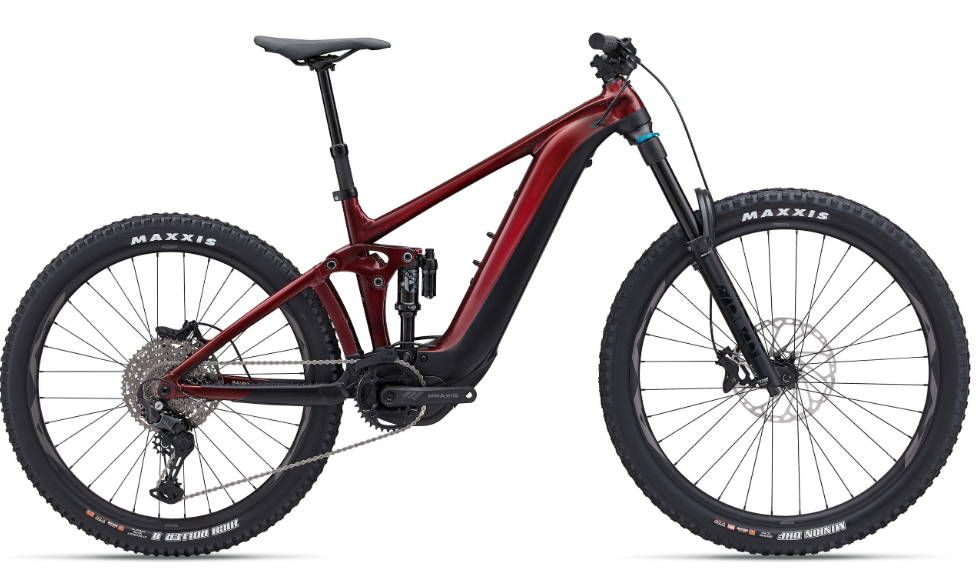

2024 Giant Reign E+ 6 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Reign E+6 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro trail riding |
|
Starting Price (2025) |
$6,500 USD |
|
Color Options |
Sangria / Black |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, Boost 148x12mm, Universal Derailleur Hanger |
|
Fork |
Fox 38 Rhythm E-Optimized, 29er, 170mm travel, 44mm offset, Grip damper Sweep-Adj Boost, Kabolt-X 110 |
|
Rear Shock |
Fox Float X Performance, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned |
|
Crankset |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M: 160mm, L/XL: 165mm) |
|
Chain |
Shimano LinkGlide, CN-LG500 |
|
Shifters |
Shimano Cues LinkGlide |
|
Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
|
Rear Derailleur |
Shimano Cues LinkGlide 11-speed |
Components & Features
|
Specification |
Details |
|
Motor |
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|
Battery |
Giant EnergyPak 800Wh, Aluminium casing, Giant EnergyPak Plus 250 range extender compatible (excludes S size) |
|
Seating |
Velo VL3594 |
|
Fuel Type |
Electric (EnergyPak 800Wh) |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F], Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 220mm [F], 203mm [R] |
|
Brake Levers |
Shimano Deore, I-spec EV |
|
Handlebar |
Giant Contact Trail, 35x800mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Threadless, integrated |
|
Saddle |
Velo VL3594 |
|
Seatpost |
Giant Contact Switch, dropper, 30.9mm (S: 125mm, M: 150mm, L: 170mm, XL: 200mm) |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|
Front Hub |
Shimano MT410, Boost, Center-Lock, 110x15 [F] |
|
Rear Hub |
Shimano MT410, Boost, Center-Lock, 148x12mm HG Drive Body Thru-axle [R] |
|
Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Pedals |
Flat pedal |
|
Exterior Features |
Tubeless kit |
