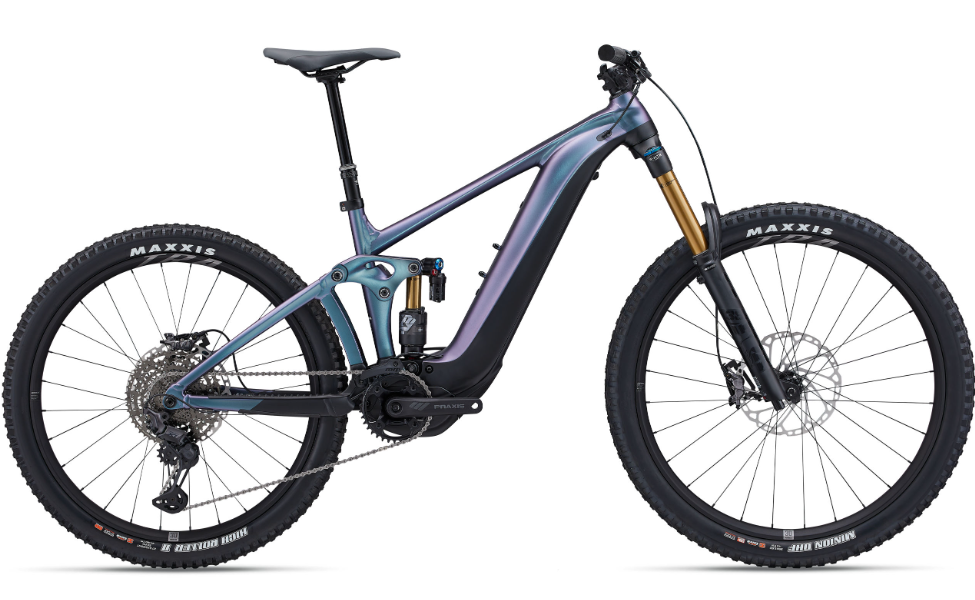

2024 Giant Reign E+ 5 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Reign E+ 5 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro trail riding |
|
Starting Price (2025) |
$7,000 USD |
|
Color Options |
Blue Dragonfly / Black |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, Boost 148x12mm, Universal Derailleur Hanger |
|
Fork |
Fox 38 Float Factory GRIP 2 Air 170mm |
|
Rear Shock |
Fox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned |
|
Crankset |
Praxis E-Crankset 36T steel chainring, 160mm [S-M], 165mm [L-XL] |
|
Chain |
Shimano LinkGlide, CN-LG500 |
|
Shifters |
Shimano XT LinkGlide |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano XT LinkGlide 11-speed, Shadow+ |
Components & Features
|
Specification |
Details |
|
Motor |
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|
Battery |
Giant EnergyPak 800Wh, Aluminium casing, Giant EnergyPak Plus 250 range extender compatible (excludes S size) |
|
Seating |
Romero |
|
Fuel Type |
Electric (EnergyPak 800Wh) |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F], Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm |
|
Brake Levers |
Shimano XT, I-spec EV |
|
Handlebar |
Giant Contact Trail, 35x800mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Threadless, integrated |
|
Saddle |
Romero |
|
Seatpost |
Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable (S: 120-150mm, M: 140-170mm, L/XL: 170-200mm) |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|
Front Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] |
|
Rear Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R] |
|
Rims |
E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Pedals |
Flat pedal |
|
Exterior Features |
Tubeless kit |
