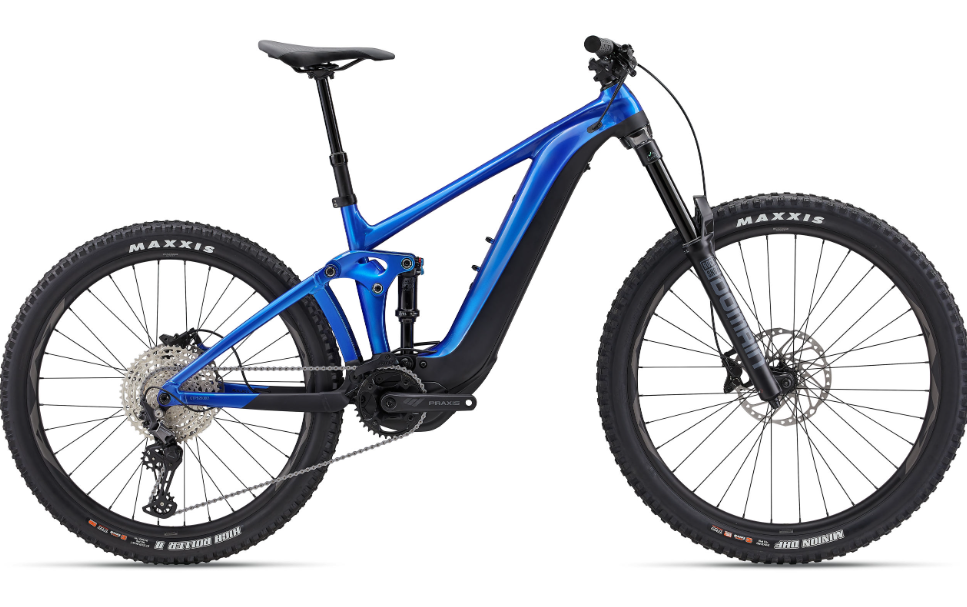

2024 Giant Reign E+ 3 20MPH – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Reign E+ 3 20MPH |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro trail riding |
|
Starting Price (2025) |
$5,310 USD |
|
Color Options |
Cobalt/Black |
|
Sizes |
S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'10" - 6'3"), XL (6'2" - 6'6") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger |
|
Fork |
RockShox Domain R 29er, 170mm travel, 15x110 Boost, Maxle Stealth, E-bike Approved |
|
Rear Shock |
Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned |
|
Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M: 160mm, L/XL: 165mm) |
|
Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
|
Shifters |
Shimano Deore |
|
Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
|
Rear Derailleur |
Shimano Deore 12-speed |
Components & Features
|
Specification |
Details |
|
Motor |
SyncDrive Pro, 85Nm, powered by Yamaha, Class 1, Max Assist Speed: 20MPH |
|
Controller |
RideControl GO integrated in TT, RideControl Ergo 3 |
|
Display |
Wireless display compatible |
|
Battery |
EnergyPak Smart 800, EnergyPak Plus range extender compatible (exclude S Size) |
|
Seating |
Giant Romero Trail |
|
Fuel Type |
Electric (EnergyPak Smart 800) |
|
Range |
43 miles (extreme), 86 miles (good), 155 miles (ideal) |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F], Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
|
Wheel Size |
29" [F], 27.5" [R] |
|
Brakes |
Shimano Deore BR-M420, 4-piston, hydraulic disc, 203mm |
|
Brake Levers |
Shimano Deore, I-spec EV |
|
Handlebar |
Giant Contact Trail, 35x800mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Giant integrated |
|
Saddle |
Giant Romero Trail |
|
Seatpost |
Giant Contact Switch, dropper, 30.9mm (S: 125mm, M: 150mm, L/XL: 170mm) |
|
Grips |
Giant Tactal Pro-E, single lock-on |
|
Front Hub |
Shimano MT410 Boost, Center-Lock, 110x15 |
|
Rear Hub |
Shimano MT410 Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle |
|
Rims |
Giant AM 29" [F], 27.5" [R], Tubeless ready, 30mm inner width |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Pedals |
Flat pedal |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Torx 25 Battery Lock with built-in Torque limiter |
|
Weight |
25.92 kg (57 lbs 3 oz) - Size L |
