2024 Giant Reign E plus 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Reign E+ 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro riding |
|
Starting Price (2025) |
$6,500 USD |
|
Color Options |
Sangria/Black |
|
Sizes |
S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'10" - 6'3"), XL (6'2" - 6'6") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

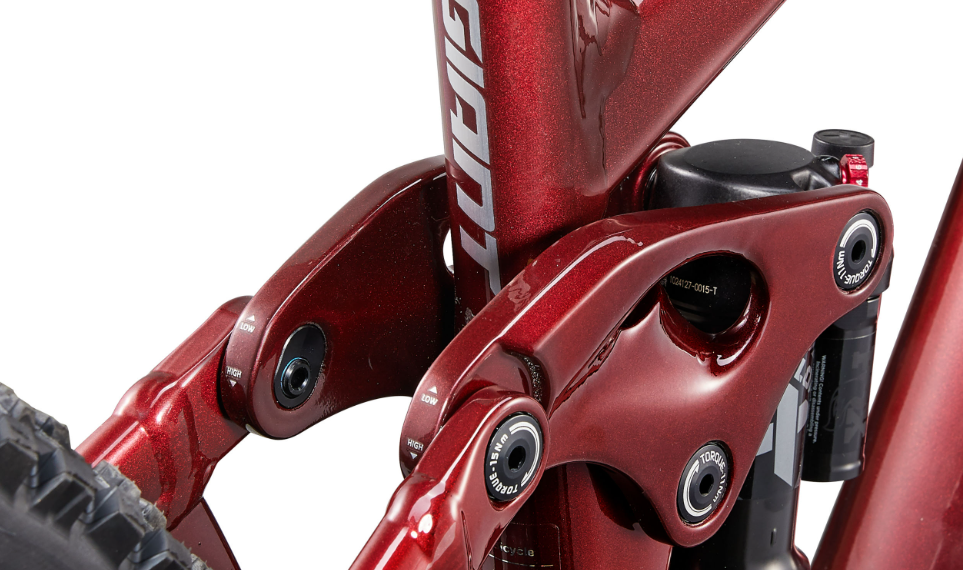

ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger |
|
Fork |

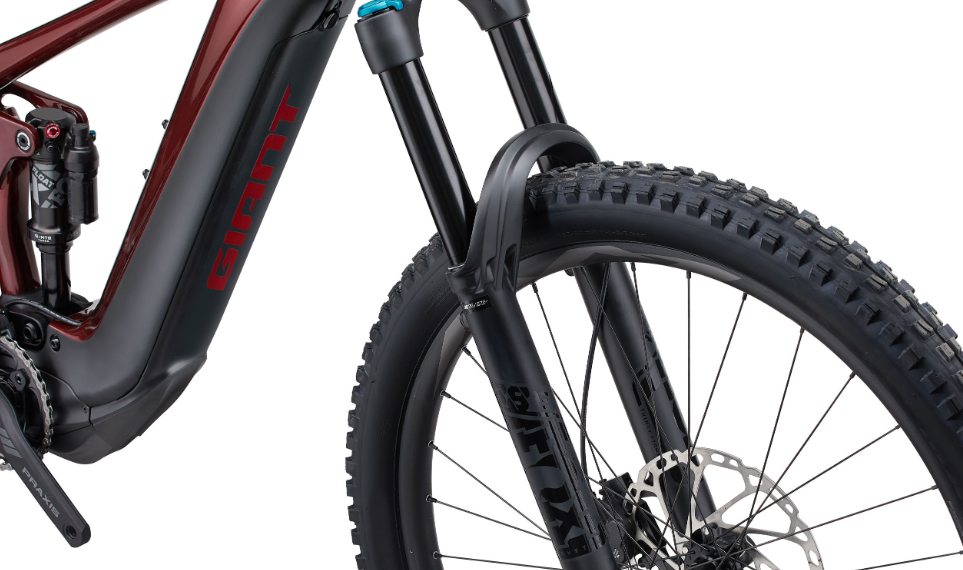

Fox 38 Rhythm E-Optimized, 29er, 170mm travel, 44mm offset, Grip damper Sweep-Adj Boost, Kabolt-X 110 |
|
Rear Shock |
Fox Float X Performance, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30% |
|
Crank |
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm) |
|
Chain |
Shimano LinkGlide, CN-LG500 |
|
Shifters |
Shimano Cues LinkGlide |
|
Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
|
Rear Derailleur |
Shimano Cues LinkGlide, 11-speed |
Components & Features
|
Specification |
Details |
|
Motor |

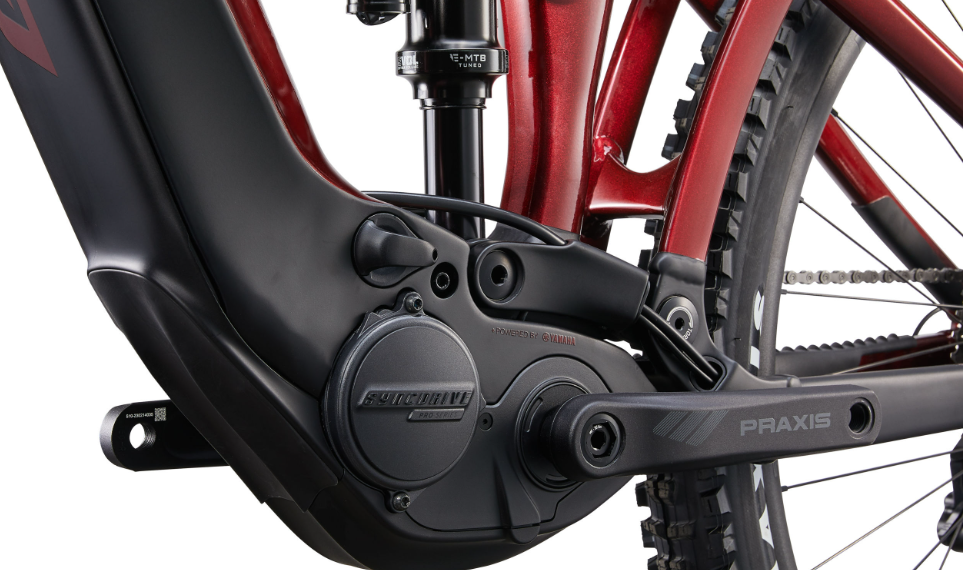

Giant SyncDrive Pro2, 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|
Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing, CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible (exclude S size) |
|
Controller |
Giant RideControl Ergo3, grip integrated remote |
|
Display |
Giant RideControl GO, frame integrated LED console, optional wireless ANT+ display |
|
Seating |
Velo VL3594 |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F], Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 220mm [F], 203mm [R] |
|
Brake Levers |
Shimano Deore, I-spec EV |
|
Handlebar |
Giant Contact Trail, 35x800mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Giant integrated |
|
Saddle |
Velo VL3594 |
|
Seatpost |
Giant Contact Switch, dropper, 30.9mm (S:125mm, M:150mm, L:170mm, XL:200mm) |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|
Front Hub |
Shimano MT410, Boost, Center-Lock, 110x15 |
|
Rear Hub |
Shimano MT410, Boost, 148x12mm HG Drive Body Thru-axle |
|
Rims |
Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Pedals |
Flat pedal |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Torx 25 Battery Lock with built-in Torque limiter |
