2024 Giant Reign E+ 1 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Reign E+ 1 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro riding |
|
Starting Price (2025) |
$7,000 USD |
|
Color Options |
Blue Dragonfly/Black |
|
Sizes |
S (5'4" - 5'9"), M (5'7" - 6'0"), L (5'10" - 6'3"), XL (6'2" - 6'6") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger |
|
Fork |

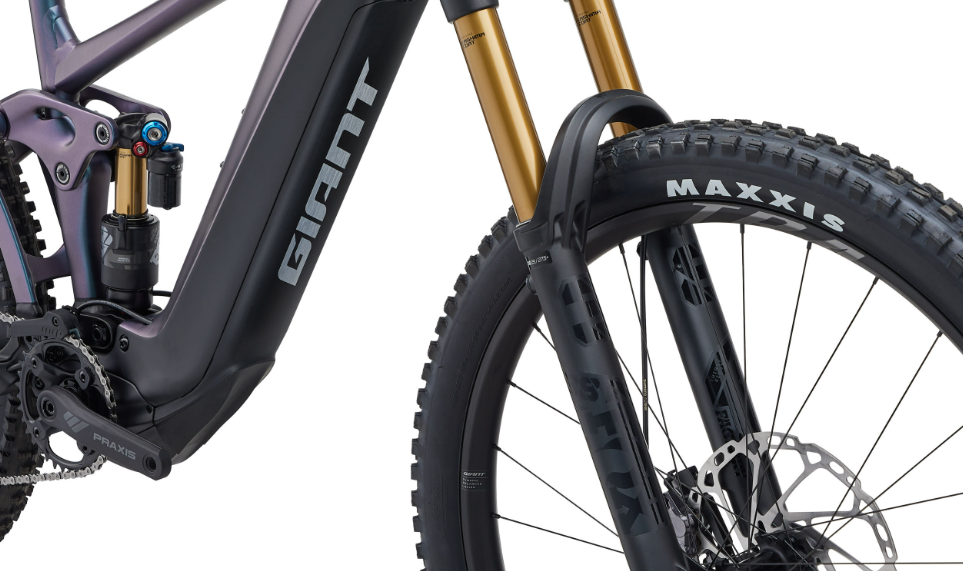

Fox 38 Float Factory GRIP 2 Air, 170mm, 1111-38FLOA-0024 |
|
Rear Shock |

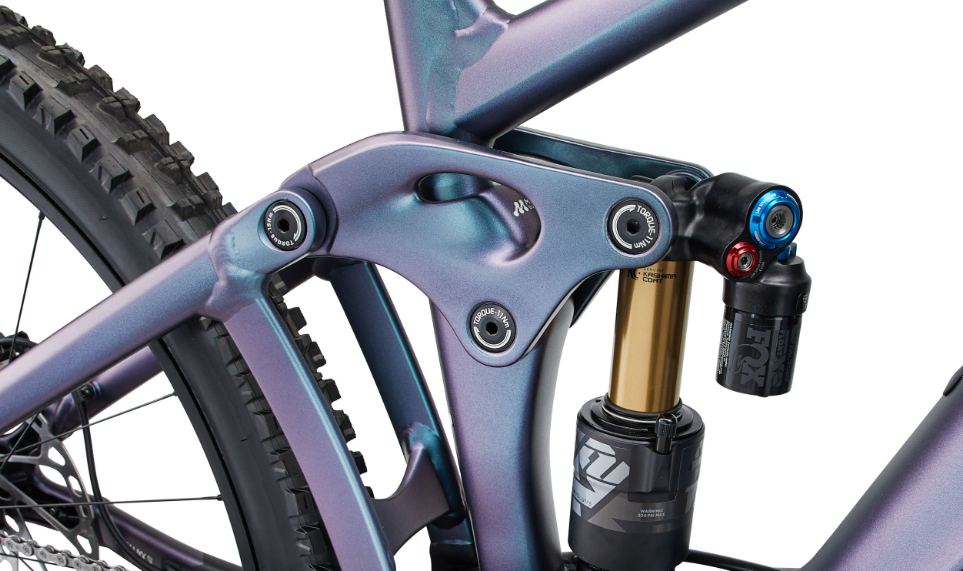

Fox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30% |
|
Crank |
Praxis E-Crankset, 36T steel chainring (S/M:160mm, L/XL:165mm) |
|
Chain |
Shimano LinkGlide, CN-LG500 |
|
Shifters |
Shimano XT LinkGlide |
|
Front Derailleur |
MRP HD2 co-moulded chain guide |
|
Rear Derailleur |
Shimano XT LinkGlide, 11-speed, Shadow+ |
Components & Features
|
Specification |
Details |
|
Motor |

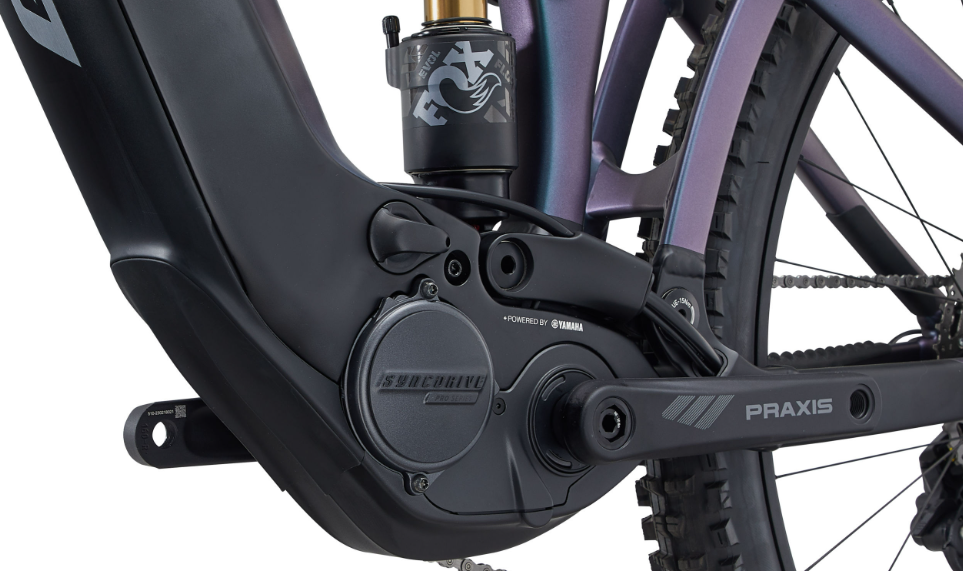

Giant SyncDrive Pro2, 85Nm, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed 20 MPH |
|
Battery |
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing, CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible (exclude S size) |
|
Controller |
Giant RideControl Ergo3, grip integrated remote |
|
Display |
Giant RideControl GO, frame integrated LED console, optional wireless ANT+ display |
|
Seating |
Romero |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F], Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
|
Wheel Size |
29" front, 27.5" rear |
|
Brakes |
Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mm |
|
Brake Levers |
Shimano XT, I-spec EV |
|
Handlebar |
Giant Contact Trail, 35x800mm |
|
Stem |
Giant Contact SL 35 |
|
Headset |
Giant integrated |
|
Saddle |
Romero |
|
Seatpost |
Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
|
Grips |
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M), 142mm Ø29~32mm (L/XL) |
|
Front Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 110x15 |
|
Rear Hub |
E-TRA MTB Alloy Hub, 6 Bolt, 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle |
|
Rims |
E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width |
|
Spokes |
Sapim E-Lite [R], Race [F], e-bike optimized |
|
Pedals |
Flat pedal |
|
Exterior Features |
Tubeless kit (liquid, valves, levers, manual, tool), Torx 25 Battery Lock with built-in Torque limiter |
