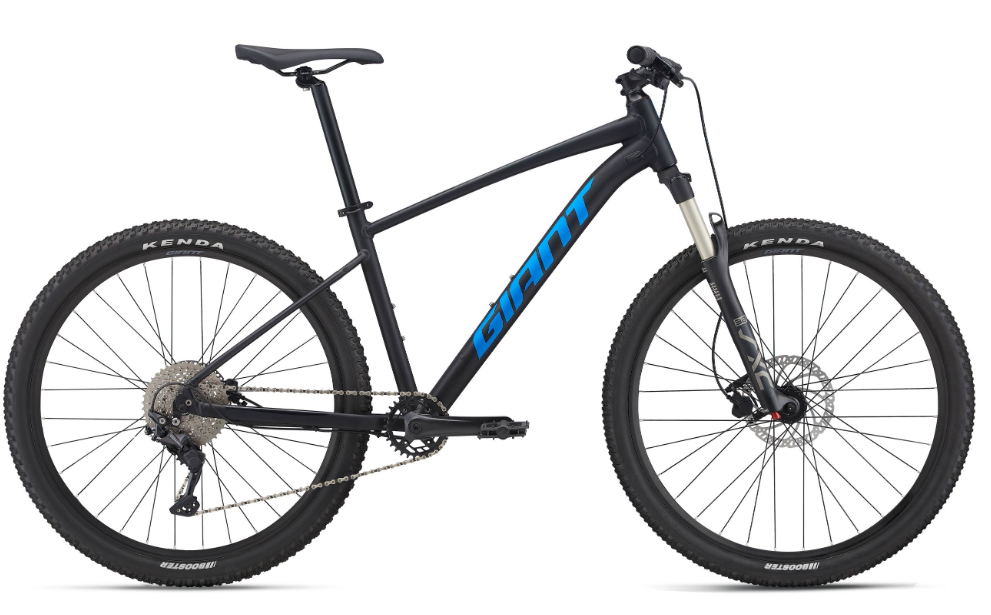

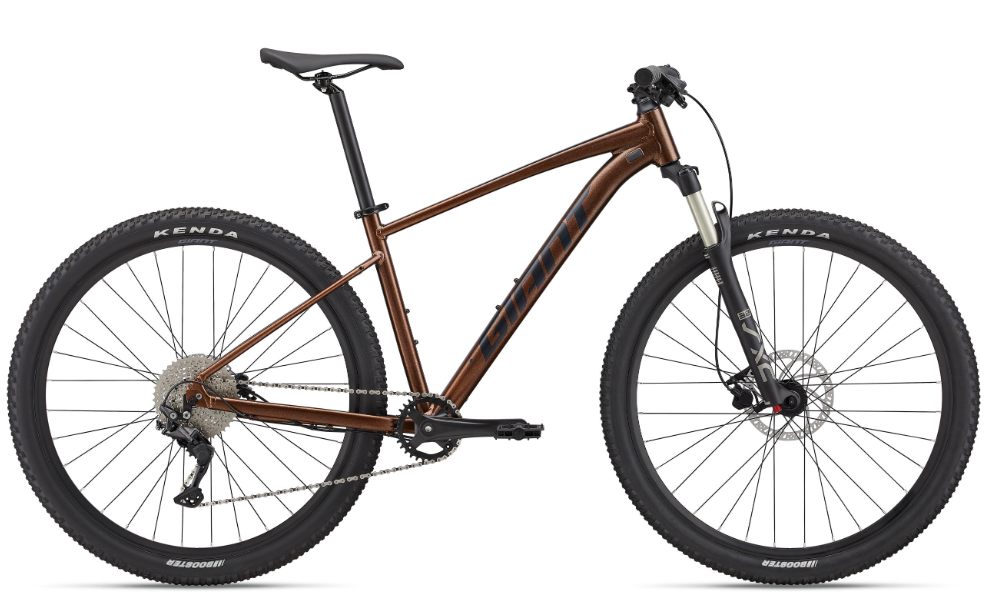

2022 Giant ATX – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
ATX |
|
Vehicle Category |
Mountain Bike |
|
Application |
Recreation |
|
Starting Price (2025) |
$329 USD |
|
Color Options |
Black, Satin Black, Vibrant Blue |
|
Sizes |
XXS (26"), XS (26"), S (26" or 27.5"), M (27.5"), L (27.5"), XL (27.5") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
ALUXX-Grade Aluminum |
|
Fork |
SR Suntour XCE 28, coil, preload, XXS: 80mm travel (26"), XS: 80mm travel (26"), S: 80mm travel (26" or 27.5"), M: 80mm travel (27.5"), L: 80mm travel (27.5"), XL: 80mm travel (27.5") |
|
Crankset |
ProWheel forged, 24/34/42, XXS: 165mm (26"), XS: 165mm (26"), S: 170mm (26" or 27.5"), M: 170mm (27.5"), L: 175mm (27.5"), XL: 175mm (27.5") |
|
Chain |
KMC Z7 |
|
Bottom Bracket |
Cartridge |
|
Shifters |
MicoShift, Trigger, 3x7 |
|
Front Derailleur |
Shimano Tourney |
|
Rear Derailleur |
MicoShift 26c, 7spd |
Components & Features
|
Specification |
Details |
|
Seating |
Giant custom |
|
Wheels/Tyres |
Giant Quickcross, 27.5x2.1" / 26x2.1" |
|
Wheel Size |
26" or 27.5" (frame size dependent) |
|
Brakes |
MTB linear pull |
|
Brake Levers |
Tektro 3 finger, Linear pull |
|
Handlebar |
Giant Sport, alloy, 25.4mm, XXS: 600mm (26"), XS: 600mm (26"), S: 640mm (26" or 27.5"), M: 680mm (27.5"), L: 680mm (27.5"), XL: 680mm (27.5") |
|
Stem |
Giant Sport, alloy, 15-degree, XXS: 60mm (26"), XS: 60mm (26"), S: 75mm (26" or 27.5"), M: 60mm (27.5"), L: 75mm (27.5"), XL: 75mm (27.5") |
|
Headset |
Threadless, integrated |
|
Saddle |
Giant custom |
|
Seatpost |
Giant Sport, 30.9mm, XXS: 300mm (26"), XS: 300mm (26"), S: 300mm (26" or 27.5"), M: 375mm (27.5"), L: 375mm (27.5"), XL: 375mm (27.5") |
|
Grips |
Giant Sole-O |
|
Front Hub |
Alloy, open-race sealed bearing |
|
Rear Hub |
Alloy, open-race sealed bearing |
|
Rims |
Giant alloy |
|
Spokes |
Stainless, 14g |
|
Pedals |
Platform |
|
Exterior Features |
Integrated rack mounts |
|
Weight |
13.34kg (29lbs 7oz, size XXS) |
