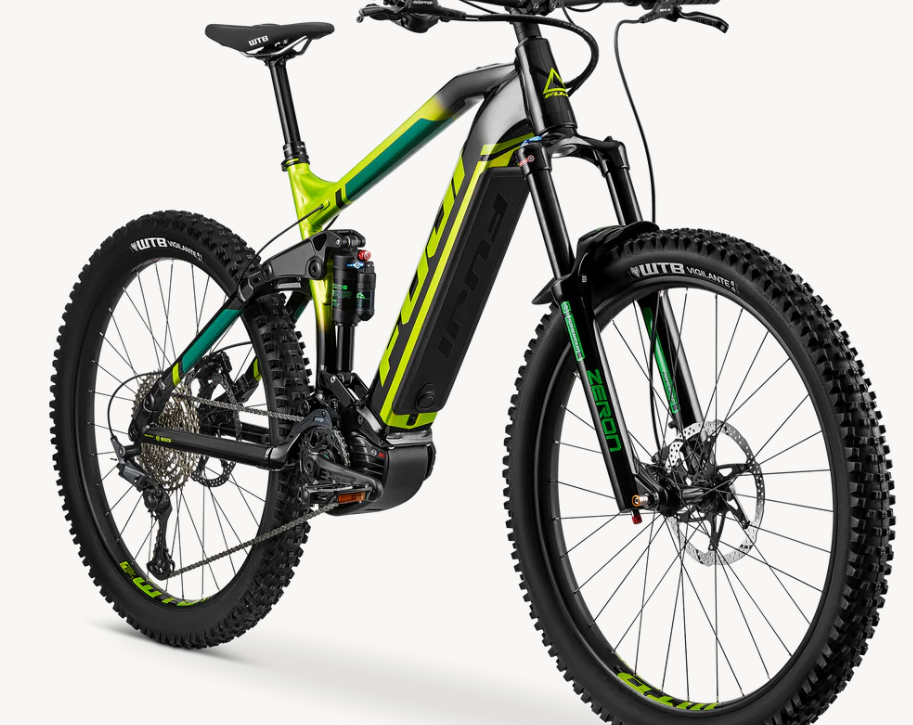

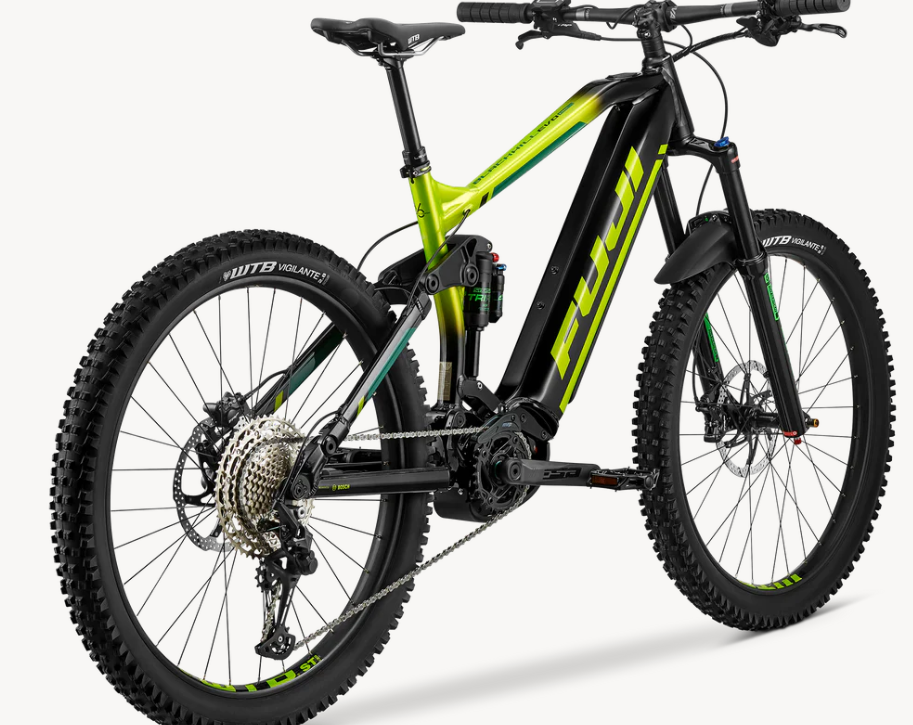

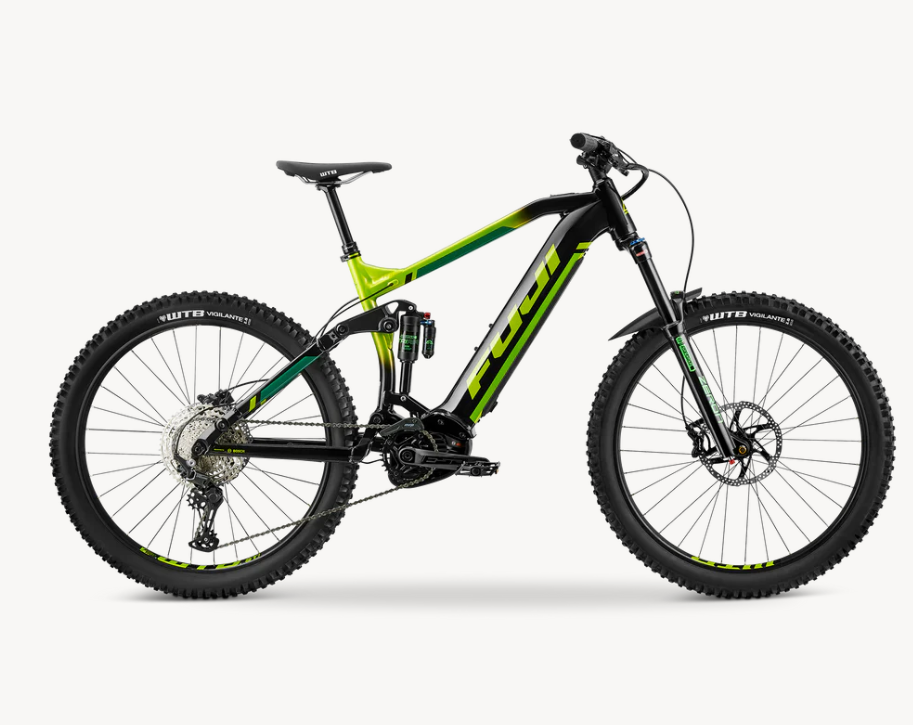

2025 Fuji Blackhill EVO 27.5+ 1.5 – E-Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Blackhill EVO 27.5+ 1.5 |
|
Vehicle Category |
E-Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$4,699.99 USD |
|
Color Options |
Apple Green/Black Gradient |
|
Sizes |
M (17"), L (19"), XL (21") |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Fuji A6-SL alloy front and rear triangle with down tube for integrated Bosch Power Tube 625-500Wh battery, Bosch Gen.4 motor cover, 4-bar suspension system, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger |
|
Fork |
SR Suntour Zeron 27.5+, Lockout, Rebound, Coil, tapered alloy steerer, Boost 110 x 15mm thru axle, travel 150mm, 35mm stanchions |
|
Rear Shock |
Suntour TriAir 3-CR, lockout, 210 x 50mm |
|
Crankset |
FSA CK-745/IS, Bosch Gen.4, 32T, with chainguard, for Boost |
|
Chain |
Shimano CN-HG601-11, 11-speed |
|
Bottom Bracket |
Bosch System ISIS drive |
|
Shifters |
Shimano Deore |
|
Rear Derailleur |
Shimano Deore |
Components & Features
|
Specification |
Details |
|
Seating |
WTB High Tail Trail, Comp, e-Bike specific saddle, steel rail |
|
Fuel Type |
Electric (Bosch Power Tube 500Wh) |
|
Wheels/Tyres |

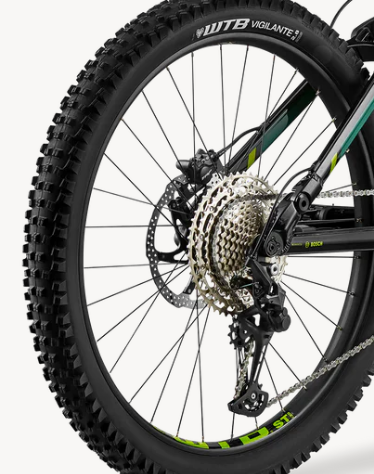

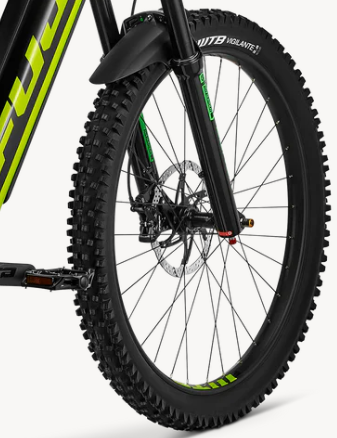

Shimano MT400-Boost CL 15mm thru axle disc, 32H, front / Shimano MT400-Boost CL 12mm thru axle disc, 32H, rear, 14/15g stainless steel spokes, WTB ST i35 TCS 2.0 double wall 27.5" rims, Continental Trail King, 65-584, ShieldWall, foldable, TL OR WTB Ranger |
|
Wheel Size |
27.5+ |
|
Brakes |
TRP Slate-T4 and X2, 4-piston front, 2-piston rear hydraulic disc, rotors: 203mm front and rear |
|
Brake Levers |
TRP Slate-T4, 2 finger lever |
|
Handlebar |
Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp, width: 760mm |
|
Stem |
Oval Concepts 600AM, 3D-forged 6061 alloy, 0°, 31.8mm clamp, length: 17", 19" - 35mm, 21" - 45mm |
|
Headset |
FSA NO.57EP, 1 1/8” - 1.5”, ACB bearings |
|
Saddle |
WTB High Tail Trail, Comp, e-Bike specific saddle, steel rail |
|
Seatpost |
KS LEV-SI Dropper, 30.9mm, remote, travel: 17", 19" - 125mm, 21" - 150mm |
|
Grips |
WTB Waffel, single LO, dual density Kraton |
|
Front Hub |
Shimano MT400-Boost CL 15mm thru axle disc, 32H |
|
Rear Hub |
Shimano MT400-Boost CL 12mm thru axle disc, 32H |
|
Rims |
WTB ST i35 TCS 2.0 double wall 27.5" rims, 32H |
|
Spokes |
14/15g stainless steel |
|
Exterior Features |
Integrated Bosch Power Tube 500Wh battery, Bosch Gen.4 motor cover |
