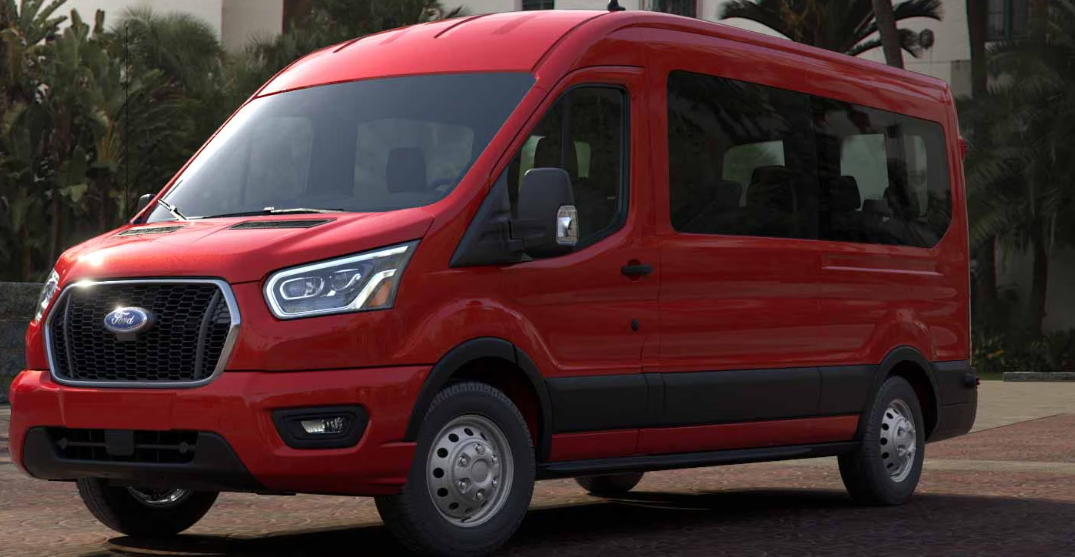

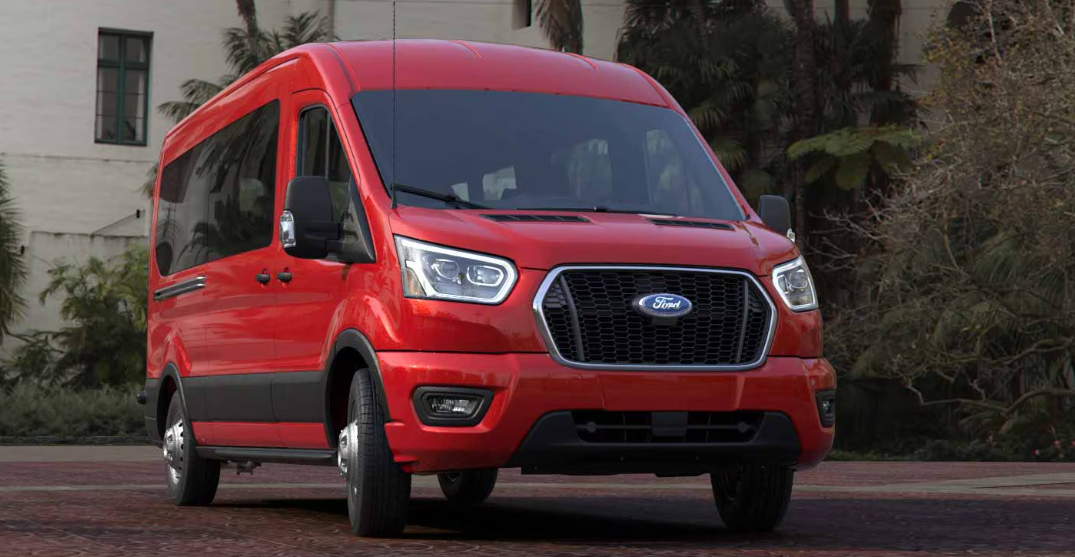

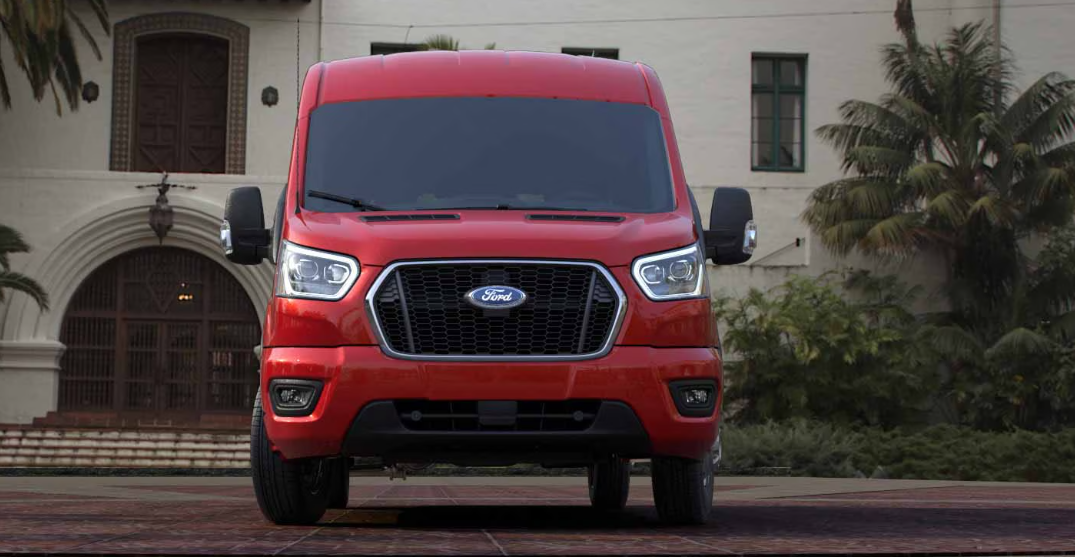

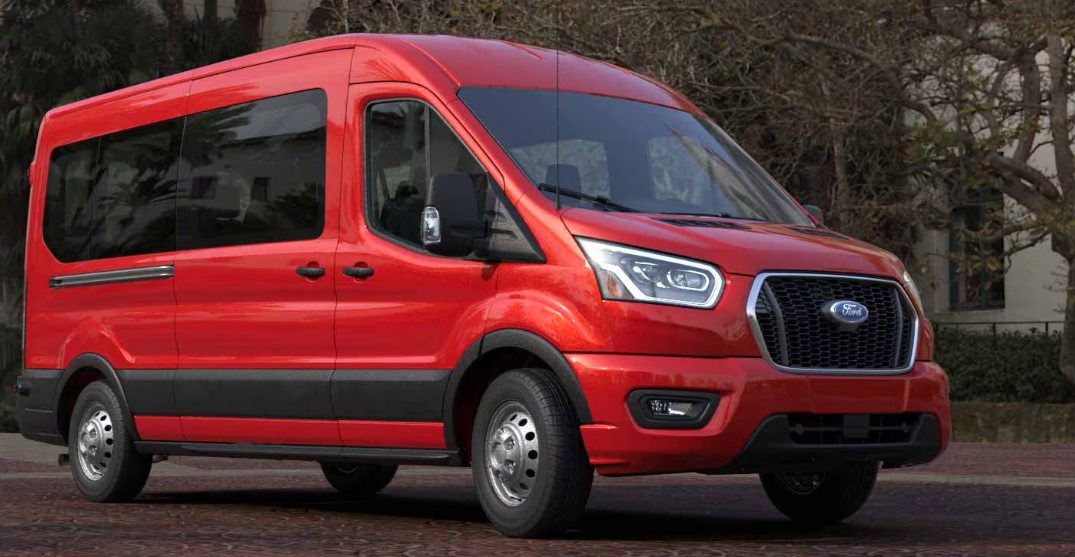

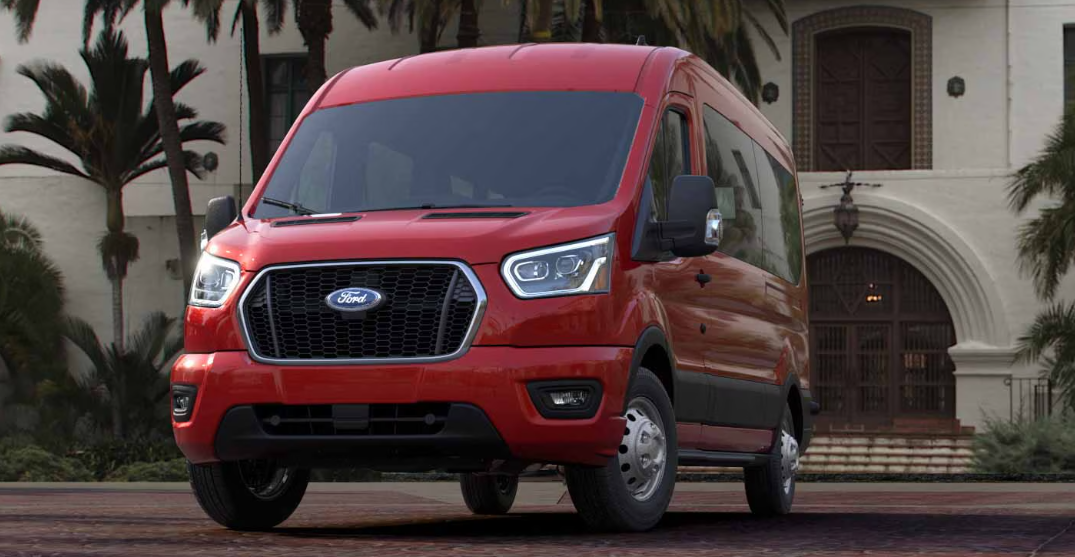

2024 Ford Transit Passenger Van XL – Reliable Passenger Transport
Specifications
|
Specification |
Details |
|
Model |
Transit Passenger Van XL |
|
Vehicle Category |
Full-Size Passenger Van |
|
Fuel Type |
Gasoline |
|
Application |
Passenger transport, commercial use |
|
Starting Price (2025) |
$51,130, excludes destination/delivery fee, taxes, and optional equipment |
|
Color Options |
Exterior: Oxford White, Race Red, Agate Black, Ingot Silver, Blue Metallic, Carbonized Gray, Avalanche Gray, Abyss Gray (extra cost options); Interior: Dark Palazzo Gray cloth |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3.5L V6 PFDi (275 HP, 260 lb-ft), opt. 3.5L EcoBoost V6 (310 HP, 400 lb-ft) |
|
Gross Horsepower |
275 HP @ 6250 rpm (3.5L V6), 310 HP @ 5000 rpm (3.5L EcoBoost) |
|
Torque |
260 lb-ft @ 4000 rpm (3.5L V6), 400 lb-ft @ 2500 rpm (3.5L EcoBoost) |
|
Transmission Type |
10-speed automatic with SelectShift |
|
Drivetrain |
Rear-Wheel Drive (RWD), opt. Intelligent All-Wheel Drive (AWD) |
|
Max Towing Capacity |
Up to 4,500 lbs (when properly equipped) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Strut with coil springs |
|
Rear Suspension |
Solid axle with leaf springs |
|
Brakes |
Four-wheel disc brakes with ABS |
Components & Features
|
Specification |
Details |
|
Seating |
Up to 15 passengers (Long-EL, High Roof configuration) |
|
Interior Features |
SYNC 4 with 8-in touchscreen, AM/FM stereo, Bluetooth, USB ports, FordPass Connect with 4G LTE Wi-Fi, manual air conditioning, Dark Palazzo Gray cloth seats, Ford Co-Pilot360 (Pre-Collision Assist with Automatic Emergency Braking, Lane-Keeping System, Safety Canopy side-curtain airbags), cruise control with Adjustable Speed Limiting Device (ASLD), optional trailer brake controller |
|
Exterior Features |
16-in steel wheels with covers, 50/50 hinged rear door (180-degree or 253-degree opening), sliding passenger-side door, halogen headlamps, body-colored front bumper, optional fog lamps, optional heated side mirrors |
|
Fuel Economy and Performance |
Not EPA-rated; estimated 15/19 mpg city/highway (3.5L V6, RWD), 14/18 mpg (AWD), 275–310 HP, 260–400 lb-ft, 0–60 mph ~8.5 sec (3.5L V6), ~7.8 sec (EcoBoost), top speed ~100 mph (governor-limited), payload up to 3,700 lbs, cargo volume up to 48.9 cu-ft (behind fourth row, Long-EL, High Roof), GVWR up to 9,250 lbs |
|
Fuel Tank |
25.1 gal |
|
Weight |
5,800–6,800 lbs (varies by configuration) |
|
Width |
97.4 in. (including mirrors) |
|
Length |
219.9 in. (Regular), 237.6 in. (Long), 263.9 in. (Long-EL) |
|
Max Height |
82.2 in. (Low Roof), 101.3 in. (Medium Roof), 110.4 in. (High Roof) |
|
Ground Clearance |
6.1 in. |
