Specification

Details

Model

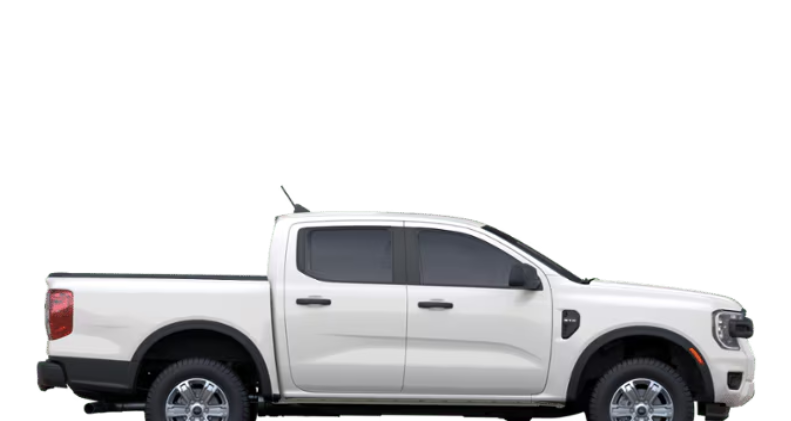

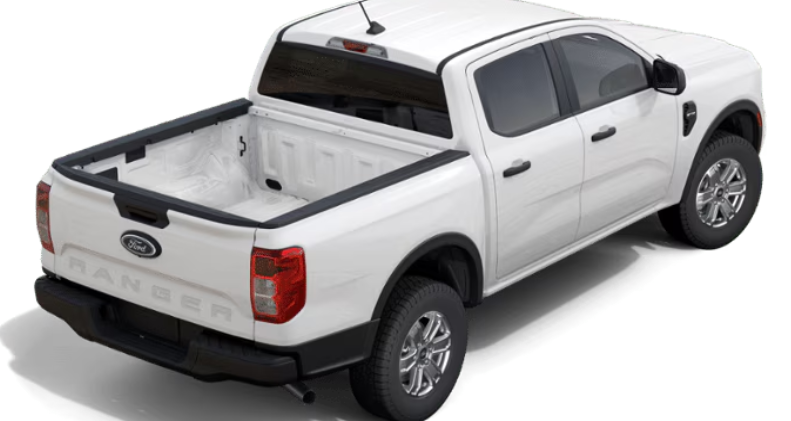

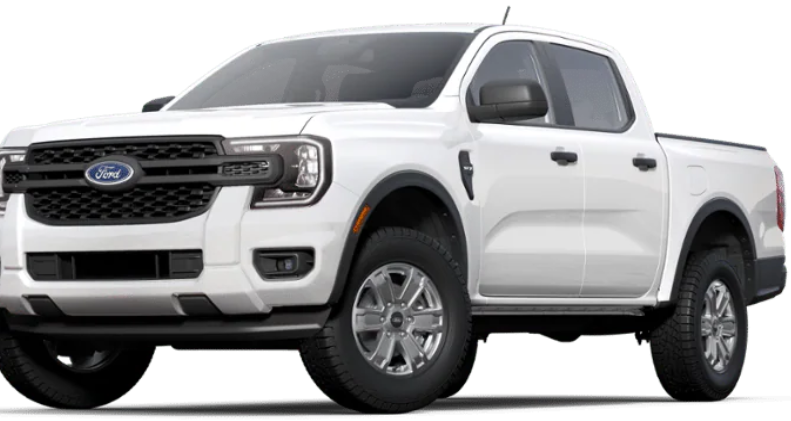

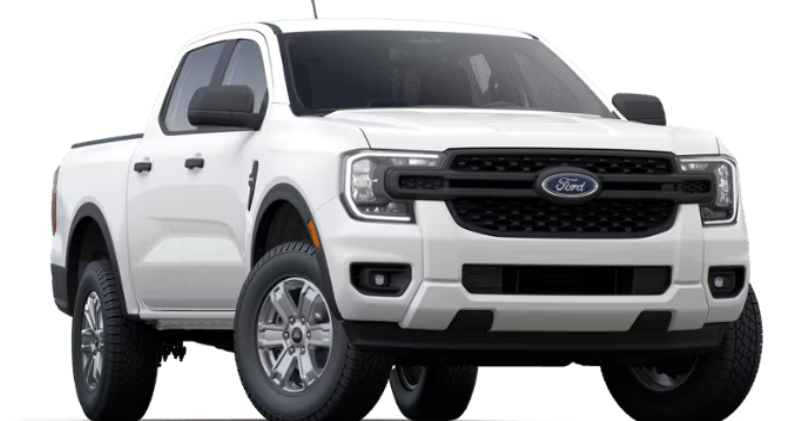

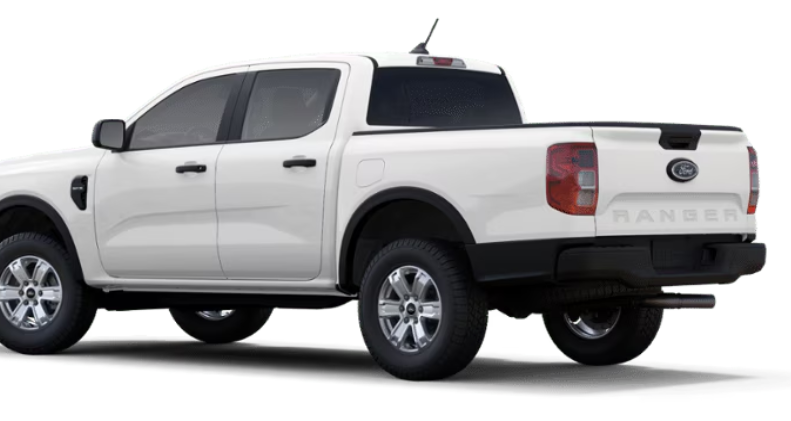

Ranger XL

Vehicle Category

Midsize Pickup Truck

Fuel Type

Gasoline

Application

Midsize truck, towing, off-road

Starting Price (2025)

$32,820, excludes destination/delivery fee, taxes, and optional equipment

Color Options

Exterior: Oxford White, Iconic Silver, Carbonized Gray, Shadow Black, Cactus Gray; Interior: Ebony cloth

Specification

Details

Engine

2.3L EcoBoost I-4 (270 HP, 310 lb-ft)

Gross Horsepower

270 HP @ 5,500 rpm

Torque

310 lb-ft @ 3,000 rpm

Transmission Type

10-speed automatic

Drivetrain

Rear-Wheel Drive (RWD), available Four-Wheel Drive (4WD)

Max Towing Capacity

7,500 lbs with Trailer Tow Package

Specification

Details

Front Suspension

Independent double-wishbone with coil-over shocks

Rear Suspension

Solid axle with leaf springs

Brakes

Four-wheel disc brakes with ABS, 12.2-in front vented disc, 12.1-in rear vented disc

Specification

Details

Seating

5 passengers

Interior Features

8-inch LCD touchscreen with SYNC 3, Apple CarPlay, Android Auto, 6-speaker audio system, USB ports (2 "A"), single-zone manual climate control, cloth seats, 6-way manual driver seat, 4-way manual passenger seat, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, lane-keeping system, blind-spot monitoring, rear cross-traffic alert, rearview camera, auto high beams), FordPass Connect, cruise control, 4.2-inch instrument cluster

Exterior Features

17-inch steel wheels, 255/70R17 all-season tires, halogen headlamps, incandescent taillamps, power sideview mirrors, 6-foot bed with cargo tie-downs

Fuel Economy and Performance

EPA-estimated 21/25 MPG (city/highway, RWD), 20/24 MPG (4WD), 270 HP, 310 lb-ft, 0–60 mph in ~6.5 seconds, top speed ~120 MPH, payload 1,805 lbs, cargo volume 43.3 cu-ft (bed), GVWR 6,050 lbs

Fuel Tank

18.8 gal

Weight

4,415 lbs (RWD), 4,515 lbs (4WD)

Width

79.0 in. (excluding mirrors)

Length

210.6 in.

Max Height

73.9 in.

Ground Clearance

8.4 in.
