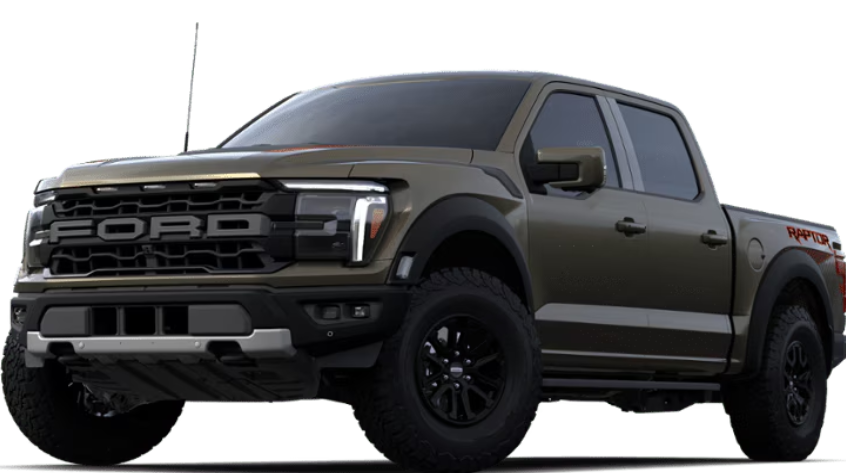

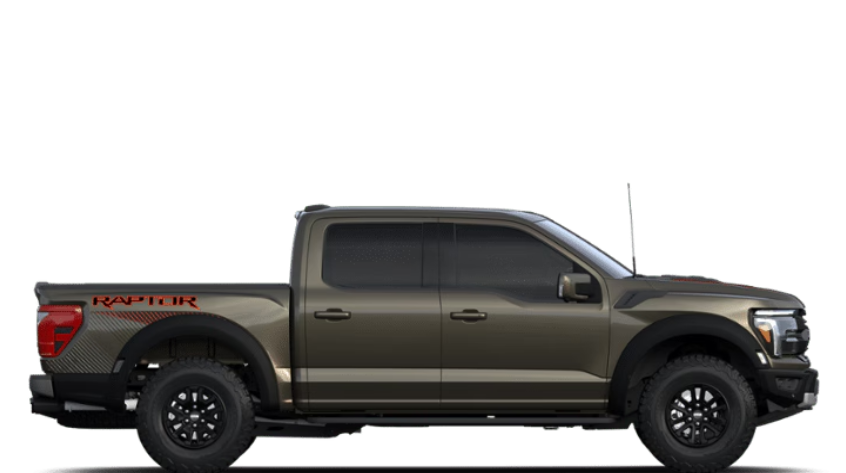

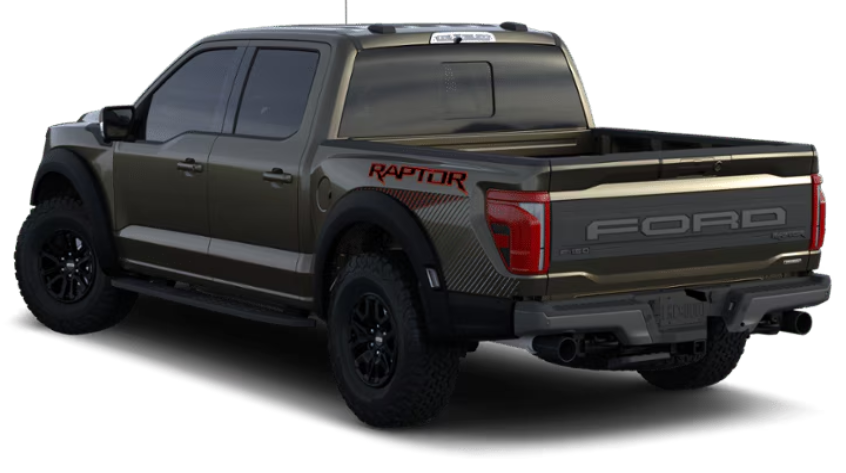

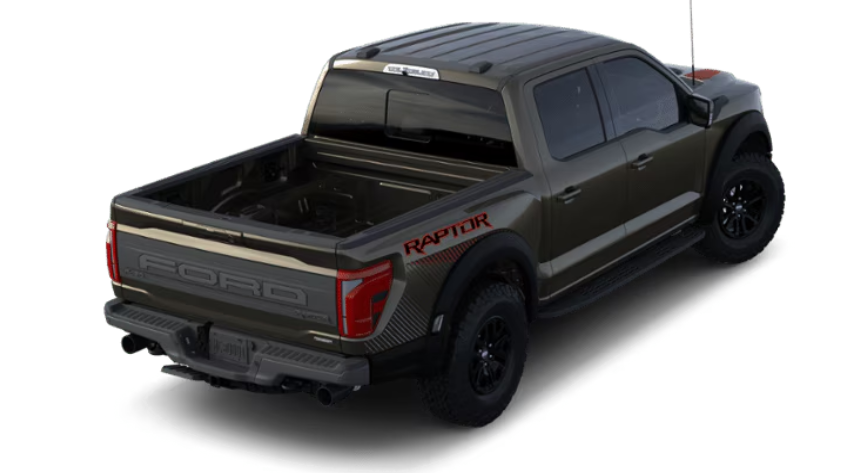

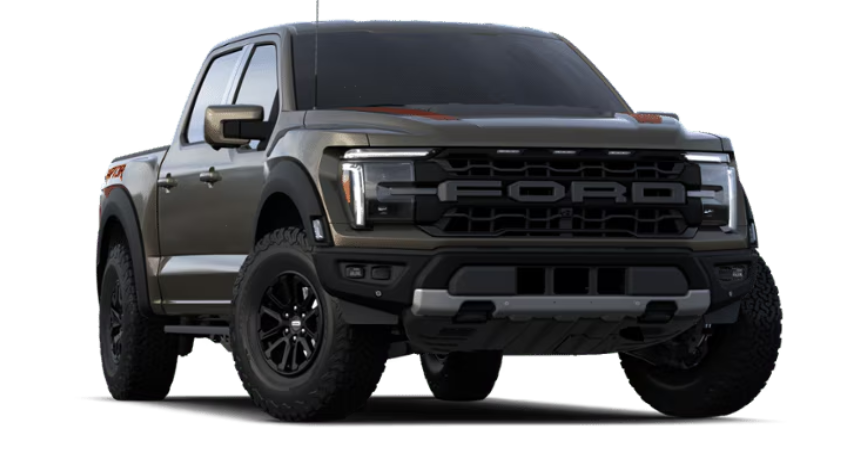

2024 Ford F-150 Raptor – High-Performance Off-Road Pickup Truck
Specifications
|
Specification |
Details |
|
Model |
F-150 Raptor |
|
Vehicle Category |
Full-Size Pickup Truck |
|
Fuel Type |
Gasoline |
|
Application |
Full-size truck, towing, off-road |
|
Starting Price (2025) |
$78,540, excludes destination/delivery fee, taxes, and optional equipment |
|
Color Options |
Exterior: Oxford White, Avalanche, Agate Black Metallic, Iconic Silver Metallic, Antimatter Blue Metallic, Code Orange Metallic (Raptor R), Shelter Green Metallic; Interior: Black leather/suede |
|
Availability |
Contact your local Ford dealer for availability near ZIP 48120 |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3.5L EcoBoost High-Output V6 (450 HP, 510 lb-ft), available 5.2L Supercharged V8 (720 HP, 640 lb-ft, Raptor R) |
|
Gross Horsepower |
450 HP @ 5,000 rpm (3.5L), 720 HP @ 6,650 rpm (5.2L Raptor R) |
|
Torque |
510 lb-ft @ 3,500 rpm (3.5L), 640 lb-ft @ 4,300 rpm (5.2L Raptor R) |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
Four-Wheel Drive (4WD) |
|
Max Towing Capacity |
8,200 lbs |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double-wishbone with Fox Racing Shox with Live Valve, coil-over shocks |
|
Rear Suspension |
Five-link coil with Fox Racing Shox with Live Valve |
|
Brakes |
Four-wheel disc brakes with ABS, 13.8-in front vented disc, 13.2-in rear vented disc |
Components & Features
|
Specification |
Details |
|
Seating |
5 passengers |
|
Interior Features |
12-inch LCD touchscreen with SYNC 4, Apple CarPlay, Android Auto, 18-speaker B&O Sound System Unleashed, USB ports (2 "A", 1 "C"), dual-zone electronic automatic temperature control, leather/suede seats, heated and ventilated front seats, 10-way power driver seat, 8-way power passenger seat, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, lane-keeping system, blind-spot monitoring, rear cross-traffic alert, rearview camera, auto high beams), Ford Co-Pilot360 Assist+ (adaptive cruise control with stop-and-go, lane centering, evasive steering assist), FordPass Connect, push-button start, 12-inch digital instrument cluster, wireless charging pad, BlueCruise hands-free highway driving, Raptor-specific interior accents, 2.0kW Pro Power Onboard |
|
Exterior Features |
17-inch forged aluminum bead-lock capable wheels, 35-inch all-terrain tires (37-inch on Raptor R), LED headlamps, LED fog lamps, LED taillamps, power sideview mirrors, 5.5-ft bed with cargo tie-downs, bed lighting, skid plates, Raptor badging, available Pro-Access Tailgate, modular front bumper (Raptor R) |
|
Fuel Economy and Performance |
EPA-estimated 15/18 MPG (city/highway, 4WD, 3.5L), 450 HP (3.5L), 720 HP (5.2L Raptor R), 510 lb-ft (3.5L), 640 lb-ft (5.2L Raptor R), 0–60 mph in ~5.2 seconds (3.5L), ~4.5 seconds (5.2L Raptor R), top speed ~118 MPH (3.5L), ~122 MPH (5.2L Raptor R), payload up to 1,400 lbs, cargo volume up to 52.8 cu-ft (5.5-ft bed), GVWR 7,300 lbs |
|
Fuel Tank |
36.0 gal |
|
Weight |
5,740 lbs (3.5L), 5,954 lbs (5.2L Raptor R) |
|
Width |
86.6 in. (excluding mirrors) |
|
Length |
232.7 in. (5.5-ft bed) |
|
Max Height |
78.5 in. |
|
Ground Clearance |
12.0 in. (3.5L), 13.1 in. (5.2L Raptor R) |
