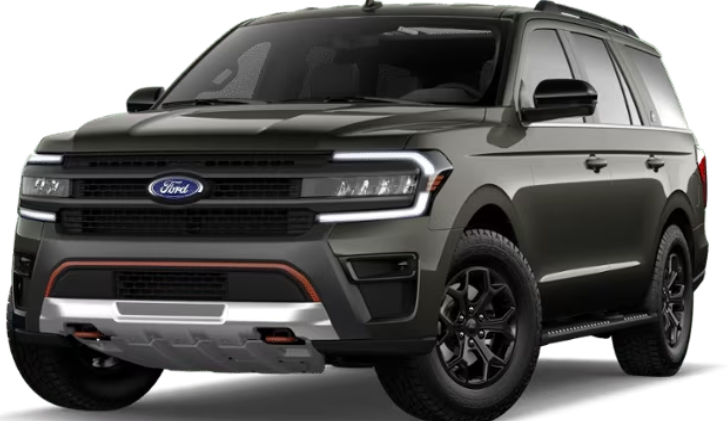

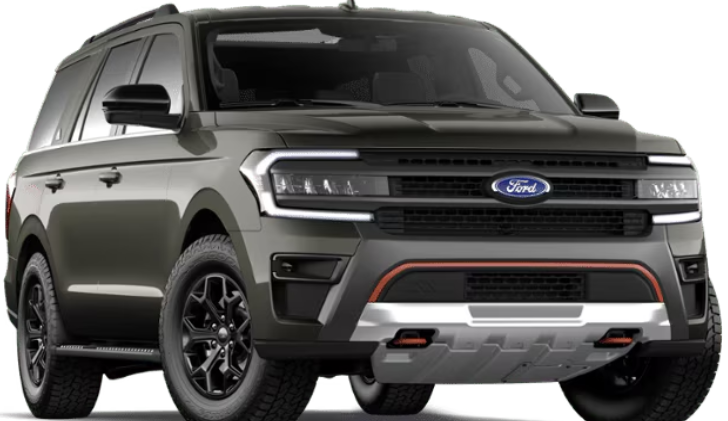

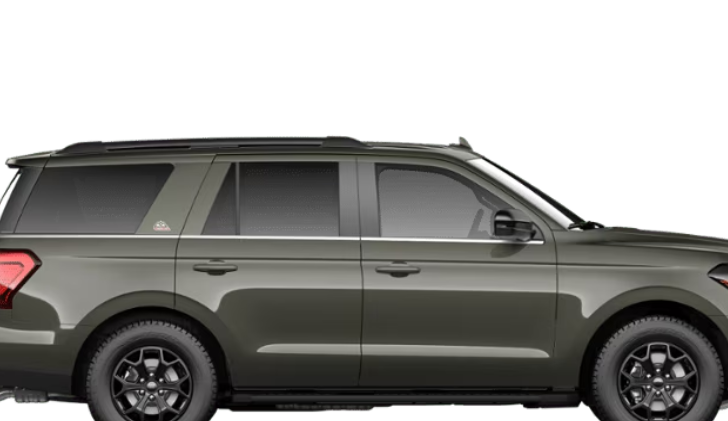

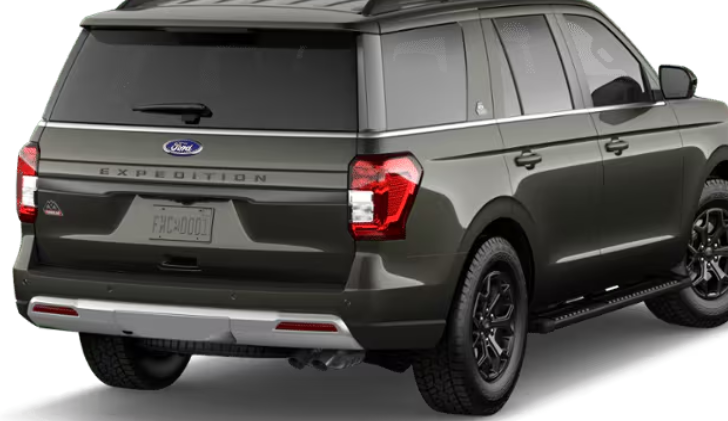

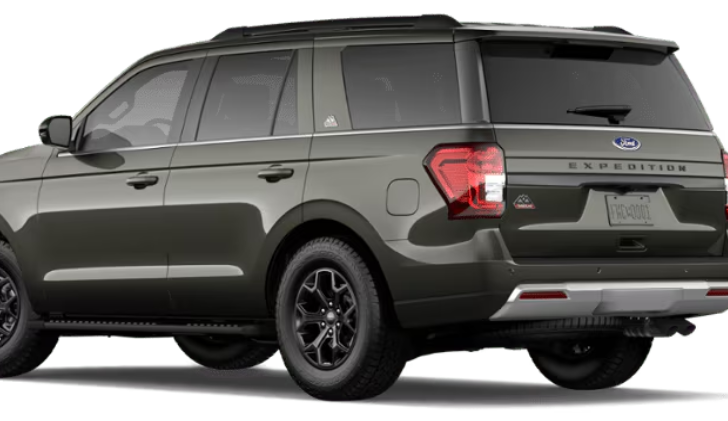

2024 Ford Expedition Timberline – Off-Road Family SUV
Specifications
|
Specification |
Details |
|
Model |
Expedition Timberline |
|
Vehicle Category |
Full-Size SUV |
|
Fuel Type |
Gasoline |
|
Application |
Family SUV, towing, luxury |
|
Starting Price (2025) |
$71,805, excludes destination/delivery fee, taxes, and optional equipment |
|
Color Options |
Exterior: Agate Black, Iconic Silver, Dark Matter, Jewel Red, Star White, Stone Blue; Interior: Ebony leather |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3.5L EcoBoost V6 High-Output (440 HP, 510 lb-ft) |
|
Gross Horsepower |
440 HP @ 5,000 rpm |
|
Torque |
510 lb-ft @ 2,250 rpm |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
Four-Wheel Drive (4WD) |
|
Max Towing Capacity |
9,200 lbs with Heavy-Duty Trailer Tow Package |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double-wishbone with coil-over shocks, off-road tuned |
|
Rear Suspension |
Independent multi-link with coil-over shocks, off-road tuned |
|
Brakes |
Four-wheel disc brakes with ABS, 13.8-in front vented disc, 13.2-in rear vented disc |
Components & Features
|
Specification |
Details |
|
Seating |
Up to 8 passengers |
|
Interior Features |
12-inch LCD touchscreen with SYNC 4A, Apple CarPlay, Android Auto, 12-speaker B&O Sound System by Bang & Olufsen, USB ports (2 "A", 1 "C"), tri-zone electronic automatic temperature control, leather-trimmed seats, heated and ventilated front seats, 8-way power driver seat, 8-way power passenger seat, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, lane-keeping system, blind-spot monitoring, rear cross-traffic alert, rearview camera, auto high beams), adaptive cruise control with stop-and-go and lane centering assist, FordPass Connect, push-button start, second-row captain’s chairs or bench, third-row 60/40 split bench, power-folding third row, panoramic Vista Roof, active noise control |
|
Exterior Features |
18-inch machined-face aluminum wheels with black-painted pockets, 265/70R18 all-terrain tires, LED headlamps with LED signature lighting, LED fog lamps, LED taillamps, power sideview mirrors, skid plates, Timberline badging, off-road tuned shocks |
|
Fuel Economy and Performance |
EPA-estimated 16/22 MPG (city/highway, 4WD), 440 HP, 510 lb-ft, 0–60 mph in ~5.5 seconds, top speed ~125 MPH, cargo volume 20.9 cu-ft behind third row, 63.6 cu-ft behind second row, 104.6 cu-ft behind first row, GVWR 7,450 lbs |
|
Fuel Tank |
23.3 gal |
|
Weight |
5,577 lbs |
|
Width |
79.9 in. (excluding mirrors), 93.4 in. (including mirrors) |
|
Length |
210.0 in. |
|
Max Height |
76.6 in. |
|
Ground Clearance |
10.6 in. |
