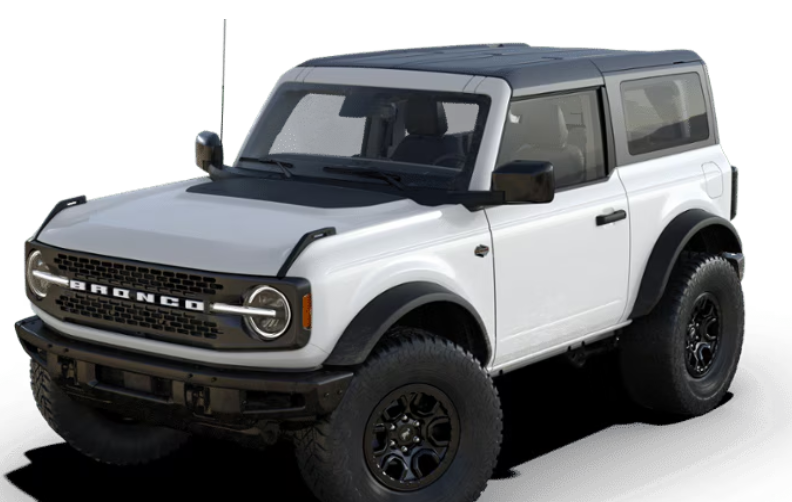

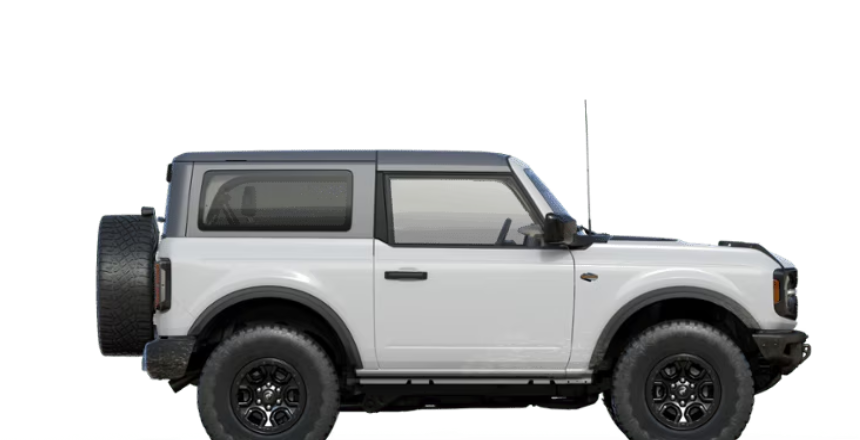

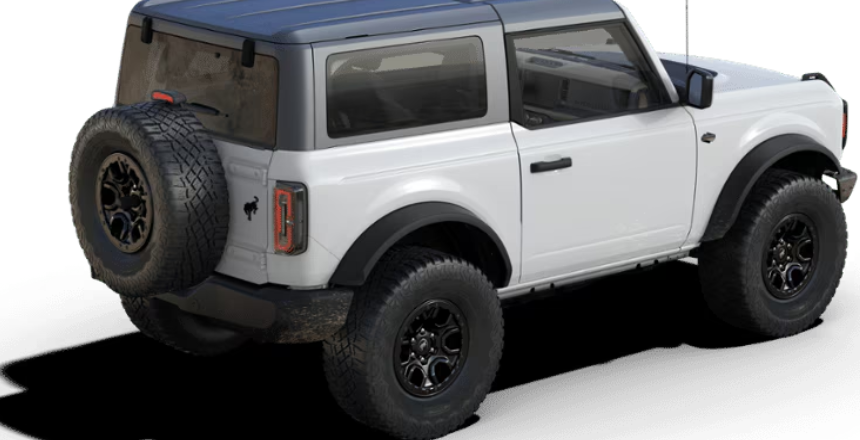

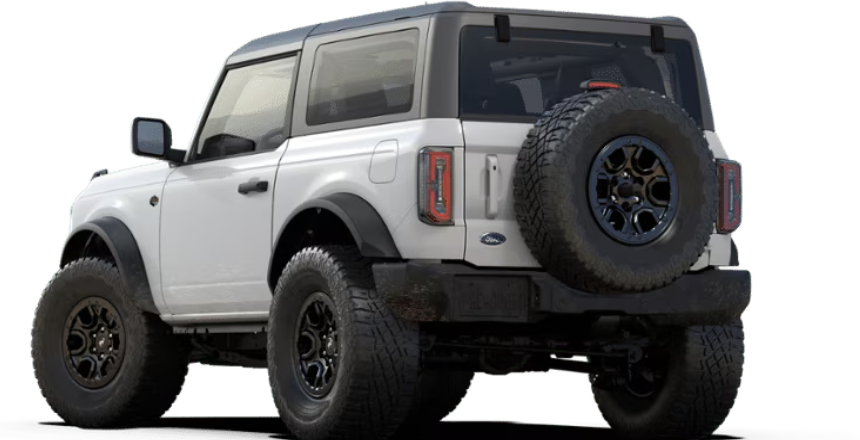

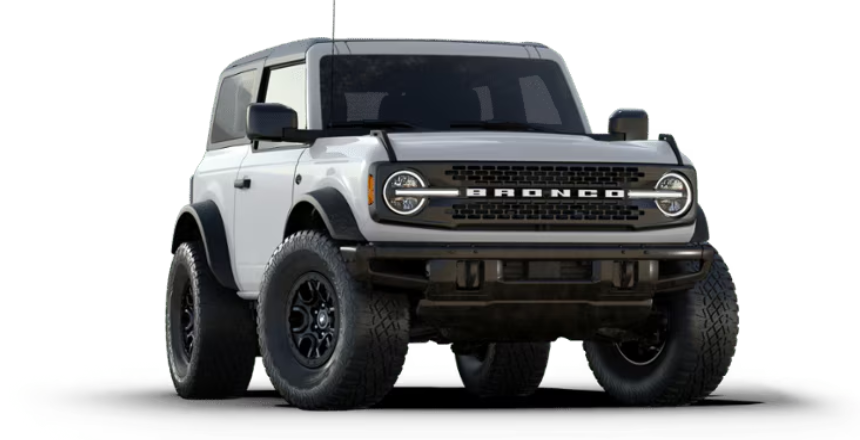

2024 Ford Bronco Wildtrak – High-Speed Off-Road SUV
Specifications
|
Specification |
Details |
|
Model |
Bronco Wildtrak |
|
Vehicle Category |
Off-Road SUV |
|
Fuel Type |
Gasoline |
|
Application |
Off-road, adventure, rugged |
|
Starting Price (2025) |
$60,225, excludes destination/delivery fee, taxes, and optional equipment; example near 48120: $59,165 (VIN 1FMEE2BP8RLA60855, Village Ford Inc, 4.31 mi) |
|
Color Options |
Exterior: Shadow Black, Cactus Gray, Carbonized Gray, Oxford White, Hot Pepper Red, Eruption Green, Azure Gray, Iconic Silver; Interior: Ebony leather-trimmed |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
2.7L EcoBoost V6 (330 HP, 415 lb-ft) |
|
Gross Horsepower |
330 HP @ 5,250 rpm |
|
Torque |
415 lb-ft @ 3,100 rpm |
|
Transmission Type |
10-speed automatic |
|
Drivetrain |
4x4 with part-time selectable engagement, advanced 4x4 with twin-clutch rear drive unit |
|
Max Towing Capacity |
4,500 lbs with Class III Trailer Tow Package |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent HOSS (High-Performance Off-Road Stability Suspension) with stabilizer bar, off-road tuned |
|
Rear Suspension |
Independent multi-link with HOSS, off-road tuned |
|
Brakes |
Four-wheel disc brakes with ABS, 12.6-in front vented disc, 12.1-in rear disc |
Components & Features
|
Specification |
Details |
|
Seating |
5 passengers |
|
Interior Features |
12.3-inch digital instrument cluster, 8-inch LCD touchscreen with SYNC 4, Apple CarPlay, Android Auto, 10-speaker B&O audio system, USB ports (2 "A", 1 "C"), dual-zone electronic automatic temperature control, leather-trimmed seats, heated front seats, 8-way power driver seat, Ford Co-Pilot360 (pre-collision assist with automatic emergency braking, lane-keeping system, blind-spot monitoring, rear cross-traffic alert, rearview camera, auto high beams), FordPass Connect, Terrain Management System with 7 G.O.A.T. Modes (Normal, Eco, Sport, Slippery, Sand, Mud/Ruts, Baja), modular interior, rubberized cargo floor, front and rear locking differentials |
|
Exterior Features |
17-inch black high-gloss painted aluminum wheels, 315/70R17 all-terrain tires, LED headlights, removable soft top (4-door), fender tie-downs, heavy-duty modular front bumper, Wildtrak badging, front tow hooks, Sasquatch Package (high-clearance fenders, 35-inch tires) |
|
Fuel Economy and Performance |
EPA-estimated 19/21 MPG (city/highway), 330 HP, 415 lb-ft, 0–60 mph in ~6.2 seconds, top speed ~125 MPH, cargo volume 38.3 cu-ft (4-door) behind second row, 83.0 cu-ft (4-door) behind first row, GVWR 6,100 lbs (4-door) |
|
Fuel Tank |
20.8 gal (4-door) |
|
Weight |
4,650 lbs (4-door) |
|
Width |
75.9 in. (excluding mirrors) |
|
Length |
189.4 in. (4-door) |
|
Max Height |
75.2 in. (4-door) |
|
Ground Clearance |
11.5 in. |
