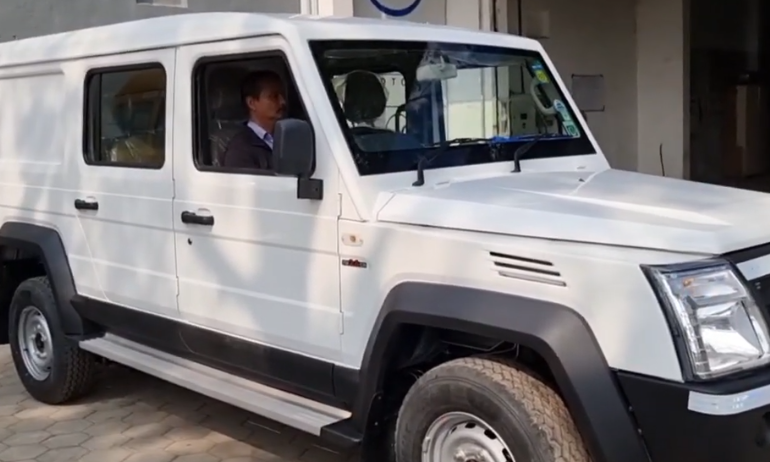

Force Trax Delivery Van 2025 – Commercial Delivery Van
Specifications
|
Specification |
Details |
|
Engine |
FM2.6CR, 4-cylinder, turbocharged, BS-VI diesel with common rail |
|
Power |
90 hp (67 kW) @ 3200 rpm |
|
Torque |
250 Nm @ 1400–2400 rpm |
|
Transmission |
5-speed manual, synchromesh |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit hydraulic with ABS; Front: Disc; Rear: Drum |
|
Suspension |
Front: Independent double wishbone with solid torsion bar, hydraulic telescopic shock absorbers, anti-roll bar; Rear: Semi-elliptical leaf springs with hydraulic telescopic shock absorbers |
|
Wheel Size |
7.00 R15 |
|
Tyres |
7.00 R15 (radial) |
|
Weight |
3100 kg (GVW); ~1645 kg (kerb) |
|
Dimensions (LxWxH) |
4832 x 1790 x 2055 mm (fully built) |
|
Wheelbase |
3050 mm |
|
Ground Clearance |
210 mm (unladen) |
|
Fuel Tank Capacity |
63.5 L |
|
Mileage |
~17 km/L (ARAI); ~12–14 km/L (real-world, varies with load) |
|
Price (Ex-Showroom, Delhi) |
₹6.82–6.95 Lakh(Year-2025) |
|
Price (On-Road, Delhi) |
₹7.50–8.00 Lakh (estimated) (Year-2025) |
|
Payload Capacity |
706 kg |
|
Seating Capacity |
2+D |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-frame chassis with high torsional rigidity |
|
Engine Type |
FM2.6CR, 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulically actuated |
|
Gearbox |
5-speed manual, synchromesh |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double wishbone, solid torsion bar, hydraulic telescopic shock absorbers, anti-roll bar |
|
Rear Suspension |
Semi-elliptical leaf springs, hydraulic telescopic shock absorbers |
|
Front Brake |
Disc brakes |
|
Rear Brake |
Drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |

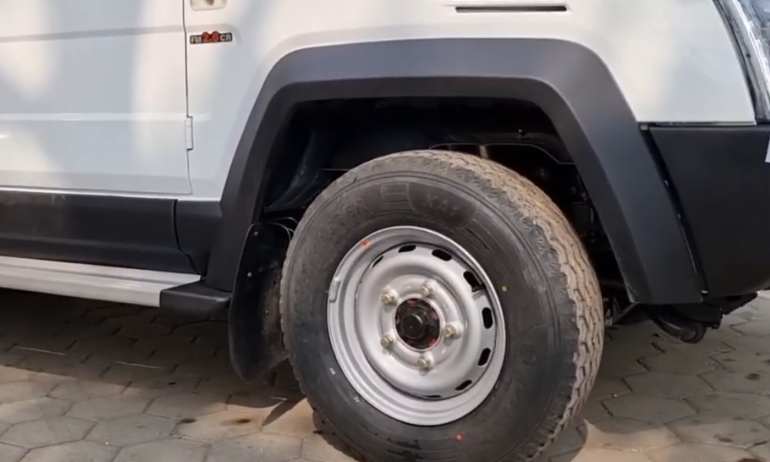

Steel wheels |
|
Tyres |
7.00 R15 (radial) |
|
Wheel Size |
7.00 R15 |
Components & Features
|
Specification |
Details |
|
Seat |
Driver + 1 co-driver, adjustable driver seat |
|
Handlebar |
Power steering, tiltable column |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Box body with 3.63 cubic meters cargo space, side and rear door openings with low footsteps, power steering, optional ABS |
|
Safety Features |
Seat belts, optional ABS, reinforced chassis |
Available Colors
|
Specification |
Details |
|
Colors |
White (customizable per fleet requirements) |
