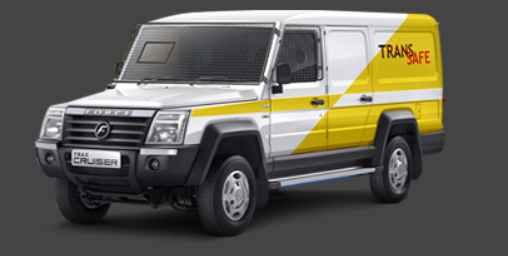

Force Trax Cash Van 2025 – Secure Cash Transport Vehicle
Specifications
|
Specification |
Details |
|
Engine |
FM2.6CR CD, 4-cylinder, turbocharged, BS-VI diesel with common rail |
|
Power |
91 hp (68 kW) @ 3200 rpm |
|
Torque |
250 Nm @ 1400–2400 rpm |
|
Transmission |
5-speed manual, synchromesh (G28/5B, 5 forward + 1 reverse) |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit hydraulic, vacuum-assisted with ABS and EBD; Front: Disc; Rear: Drum |
|
Suspension |
Front: Independent double wishbone with torsion bar, hydraulic telescopic shock absorbers, anti-roll bar; Rear: Semi-elliptical leaf springs with hydraulic telescopic shock absorbers |
|
Wheel Size |
215/75 R15 |
|
Tyres |
215/75 R15 (radial) |
|
Weight |
3100 kg (GVW); ~2180 kg (kerb) |
|
Dimensions (LxWxH) |
5120 x 1818 x 2027 mm (fully built) |
|
Wheelbase |
3050 mm |
|
Ground Clearance |
191 mm (unladen) |
|
Fuel Tank Capacity |
63.5 L |
|
Mileage |
~14–17 km/L (real-world, varies with load) |
|
Price (Ex-Showroom, Delhi) |
₹10.67–10.75 Lakh(Year-2025) |
|
Price (On-Road, Delhi) |
₹12.00–12.50 Lakh (estimated) (Year-2025) |
|
Seating Capacity |
4+D, 5+D |
|
Payload Capacity |
920 kg |
|
Cargo Box Size (LxWxH) |
1460 x 1470 x 1230 mm (2.1 m³) |
Frame & Drivetrain
|
Specification |
Details |
|

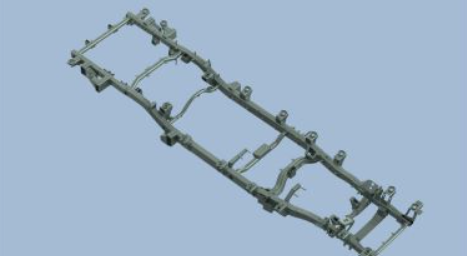

Chassis |
Ladder-frame chassis, C-in-C section for superior bending strength |
|

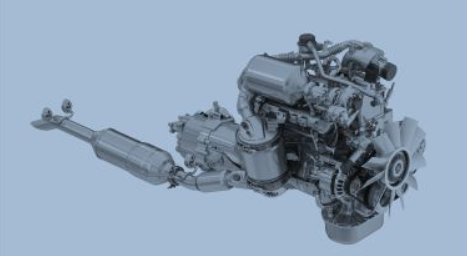

Engine Type |
FM2.6CR CD, 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulically actuated |
|
Gearbox |
5-speed manual, synchromesh (5 forward + 1 reverse) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double wishbone, torsion bar, hydraulic telescopic shock absorbers, anti-roll bar |
|
Rear Suspension |
Semi-elliptical leaf springs, hydraulic telescopic shock absorbers |
|
Front Brake |
Disc brakes |
|
Rear Brake |
Drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
15-inch steel wheels |
|
Tyres |
215/75 R15 (radial) |
|
Wheel Size |
215/75 R15 |
Components & Features
|
Specification |
Details |
|
Seat |
Driver + 3 or 4 passengers, fabric upholstery, adjustable driver seat |
|
Handlebar |
Power steering, rack and pinion |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Armored body with bulletproof glass, dual-tone dashboard, air conditioner with roof-mounted blower, power steering, 2.1 m³ cargo box, central locking, optional vehicle tracking system |
|
Safety Features |

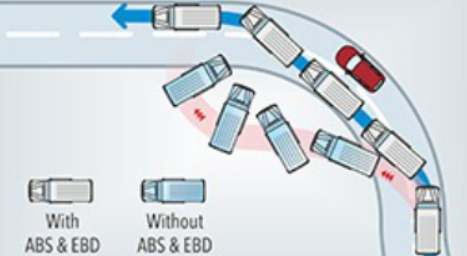

ABS, EBD, seat belts, reinforced chassis, armored cabin, optional GPS tracking |
Available Colors
|
Specification |
Details |
|
Colors |
White (customizable per fleet requirements) |
