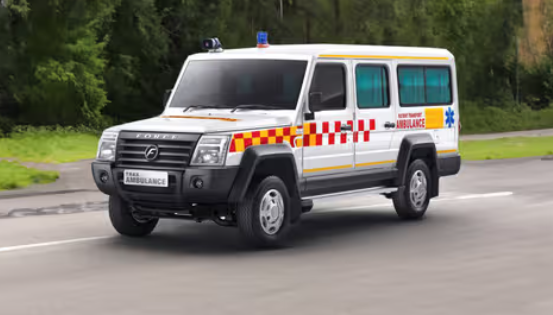

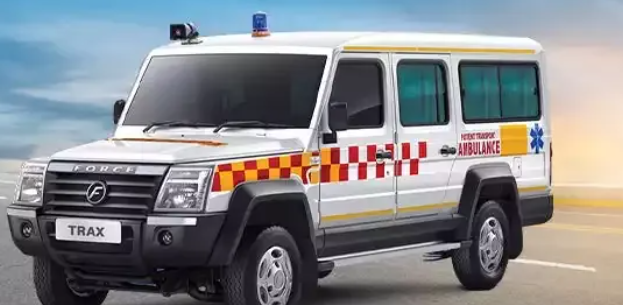

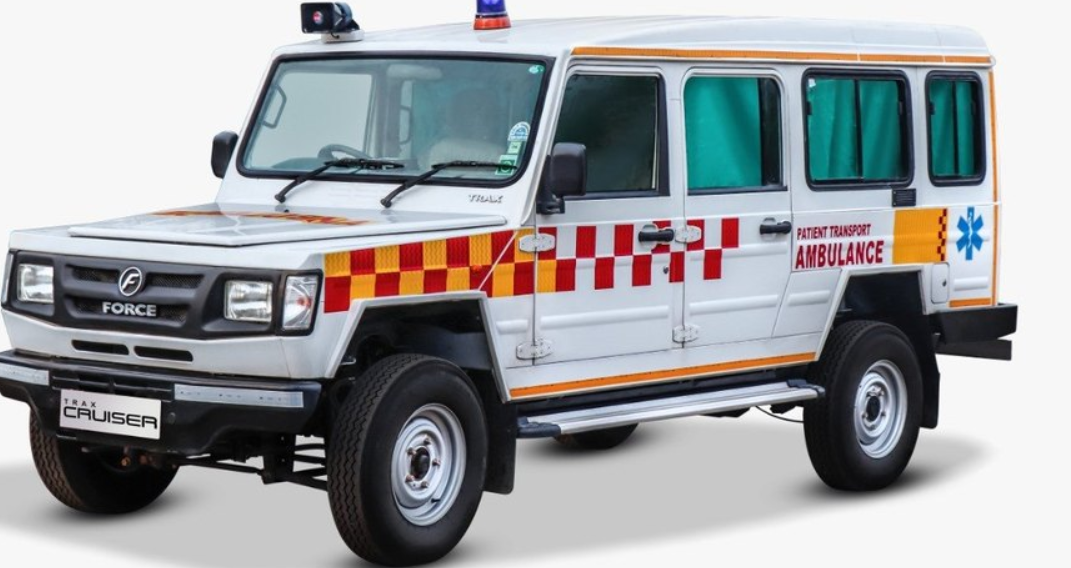

Force Trax Ambulance 2025 – Emergency Medical Transport
Specifications
|
Specification |
Details |
|
Engine |
FM2.6CR CD, 4-cylinder, turbocharged, BS-VI diesel with common rail |
|
Power |
90 hp (67 kW) @ 3200 rpm |
|
Torque |
250 Nm @ 1400–2400 rpm |
|
Transmission |
5-speed manual, synchromesh (G28/5B, 5 forward + 1 reverse) |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit hydraulic, vacuum-assisted with ABS and EBD; Front: Disc; Rear: Drum |
|
Suspension |
Front: Independent double wishbone with torsion bar, hydraulic telescopic shock absorbers, anti-roll bar; Rear: Semi-elliptical leaf springs with hydraulic telescopic shock absorbers |
|
Wheel Size |
215/75 R15 |
|
Tyres |
215/75 R15 (radial) |
|
Weight |
3180 kg (GVW); ~2000 kg (kerb, fully built) |
|
Dimensions (LxWxH) |
5120 x 1818 x 2027 mm (fully built) |
|
Wheelbase |
3050 mm |
|
Ground Clearance |
160 mm (standard); 191 mm (optional) |
|
Fuel Tank Capacity |
63.5 L |
|
Mileage |
~17 km/L (ARAI); ~10–12 km/L (real-world, varies with load) |
|
Price (Ex-Showroom, Delhi) |
₹13.14–15.23 Lakh(Year-2025) |
|
Price (On-Road, Delhi) |
₹14.83–17.23 Lakh (estimated) (Year-2025) |
|
Seating Capacity |
D+5+1P (Driver + 5 staff + 1 patient) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-frame chassis with high torsional rigidity |
|
Engine Type |
FM2.6CR CD, 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulically actuated |
|
Gearbox |
5-speed manual, synchromesh (5 forward + 1 reverse) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double wishbone, torsion bar, hydraulic telescopic shock absorbers, anti-roll bar |
|
Rear Suspension |
Semi-elliptical leaf springs, hydraulic telescopic shock absorbers |
|
Front Brake |
Disc brakes |
|
Rear Brake |
Drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
15-inch steel wheels |
|
Tyres |
215/75 R15 (radial) |
|
Wheel Size |
215/75 R15 |
Components & Features
|
Specification |
Details |
|
Seat |
Driver + 5 medical staff, foldable seats, adjustable driver seat |
|
Handlebar |
Power steering, hydraulic rack and pinion |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Autoloader stretcher with ramp, dual-tone dashboard, swivelling fans, ample lighting, oxygen cylinder brackets, medicine cabinet, optional AC, siren, beacon light, reflective decals |
|
Safety Features |
ABS, EBD, seat belts, fire extinguisher, first aid kit, reinforced chassis, reflective decals |
Available Colors
|
Specification |
Details |
|
Colors |
White with medical livery (customizable per requirements) |
