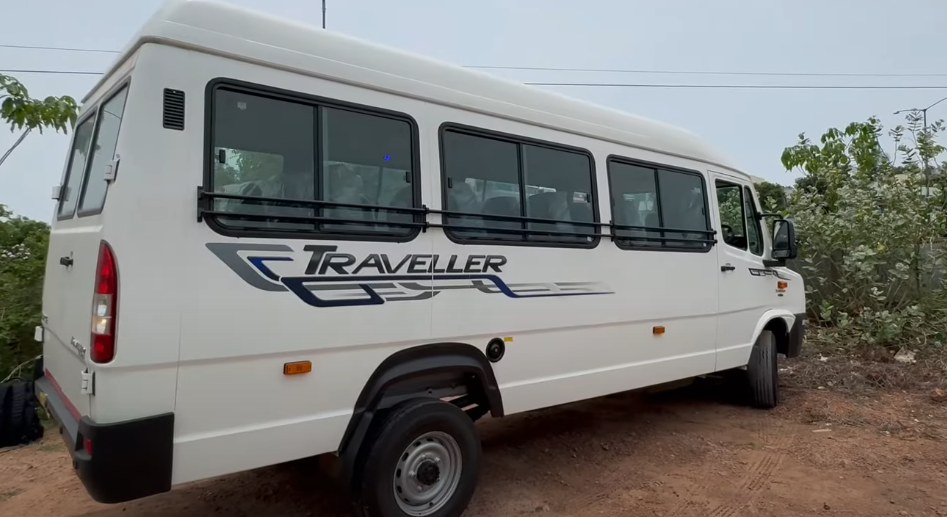

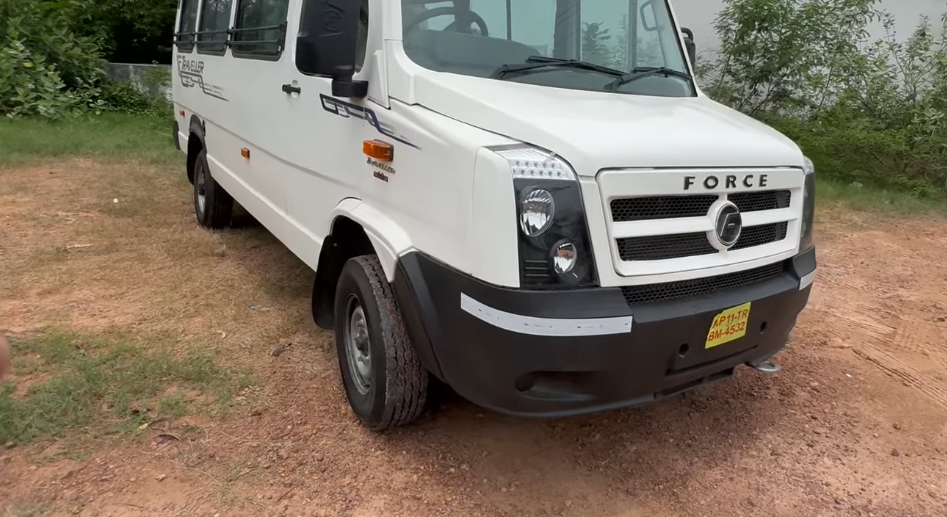

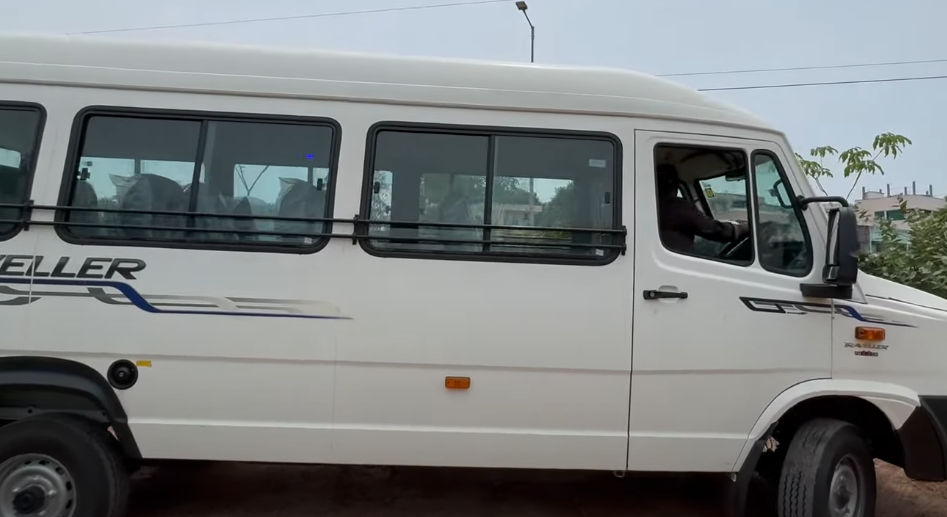

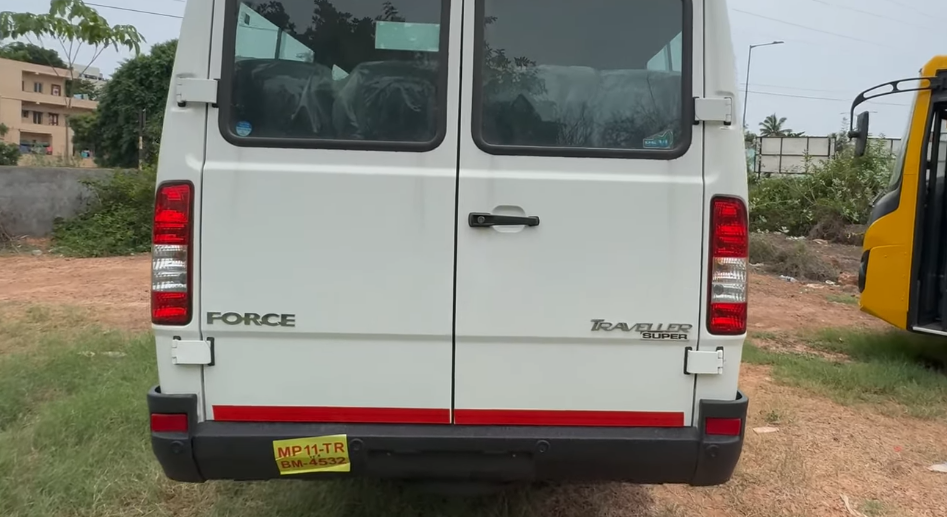

Force Traveller School Bus 3700 WB 2025 – School Transport Bus
Specifications
|
Specification |
Details |
|
Engine |
FM2.6CR ED, 4-cylinder, turbocharged, BS-VI diesel with common rail |
|
Power |
115 hp (85 kW) @ 2950 rpm |
|
Torque |
350 Nm @ 1400–2200 rpm |
|
Transmission |
5-speed manual, synchromesh (G32-5, 5 forward + 1 reverse) |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit hydraulic, vacuum-assisted with ABS and EBD; Front: Ventilated disc; Rear: Drum |
|
Suspension |
Front: Independent double wishbone with torsion bar, hydraulic telescopic shock absorbers, anti-roll bar; Rear: Parabolic leaf springs, hydraulic telescopic shock absorbers |
|
Wheel Size |
215/75 R15 |
|
Tyres |
215/75 R15 (radial) |
|
Weight |
4300 kg (GVW); ~2736 kg (kerb) |
|
Dimensions (LxWxH) |
6265 x 1900 x 2550 mm |
|
Wheelbase |
3700 mm |
|
Ground Clearance |
200 mm (unladen) |
|
Fuel Tank Capacity |
70 L |
|
Mileage |
~12–14 km/L (real-world, varies with load) |
|
Price (Ex-Showroom, Delhi) |
₹10.83–19.50 Lakh(Year-2025) |
|
Price (On-Road, Delhi) |
₹12.00–22.00 Lakh (estimated) (Year-2025) |
|
Seating Capacity |
16+D, 17+D (2x1 layout) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Monocoque body with high-strength steel |
|
Engine Type |
FM2.6CR ED, 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulically actuated |
|
Gearbox |
5-speed manual, synchromesh (5 forward + 1 reverse) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Independent double wishbone, torsion bar, hydraulic telescopic shock absorbers, anti-roll bar |
|
Rear Suspension |
Parabolic leaf springs, hydraulic telescopic shock absorbers |
|
Front Brake |
Ventilated disc brakes |
|
Rear Brake |
Drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
15-inch steel wheels |
|
Tyres |
215/75 R15 (radial) |
|
Wheel Size |
215/75 R15 |
Components & Features
|
Specification |
Details |
|
Seat |
16/17+D, ergonomic seats with fabric upholstery, adjustable driver seat |
|
Handlebar |
Power steering, tiltable column |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Low floor height, chin guard, grab handles, school bag racks, optional AC, LED interior lighting, large tinted windows, driver partition, large internal rear-view mirror, C.E.D. primer with robotic topcoat painting |
|
Safety Features |
ABS, EBD, seat belts, emergency exits, fire extinguisher, first aid kit, reinforced monocoque structure |
Available Colors
|
Specification |
Details |
|
Colors |
Yellow with school bus livery (customizable per requirements) |
