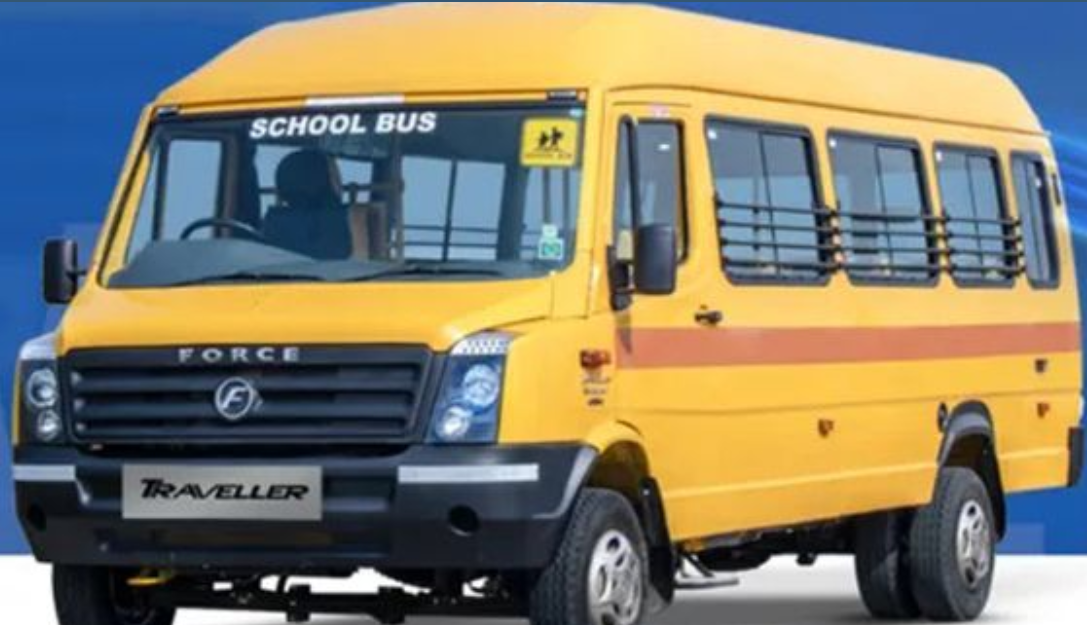

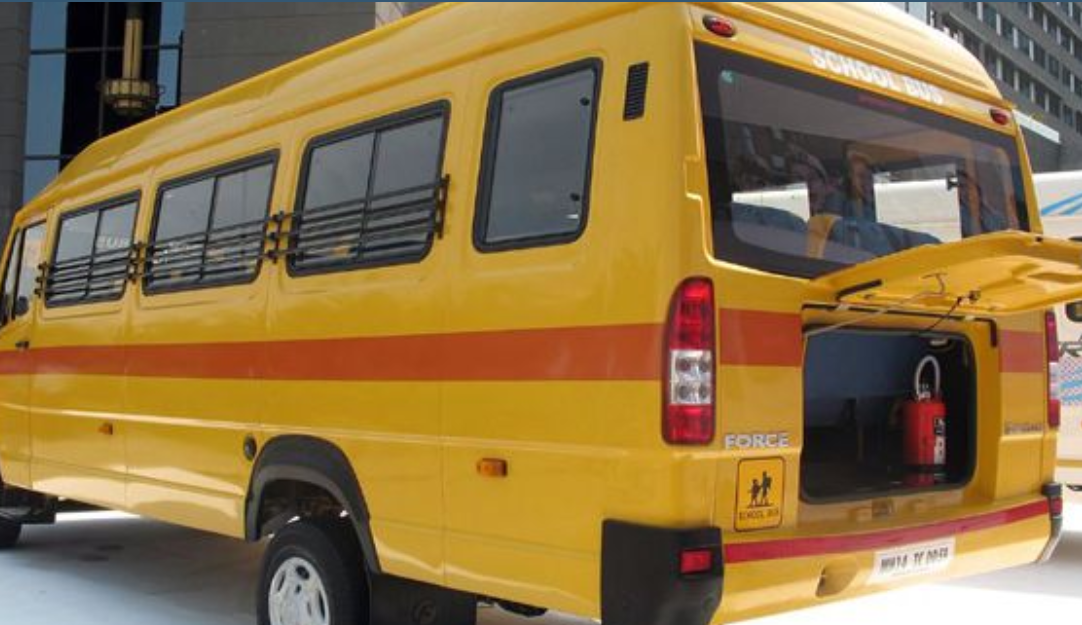

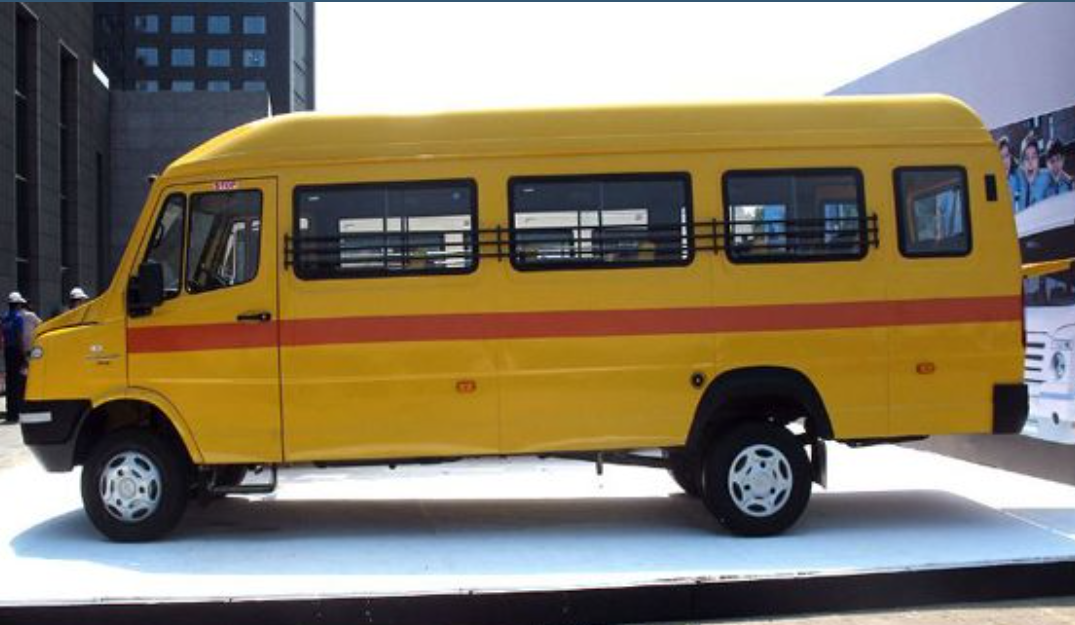

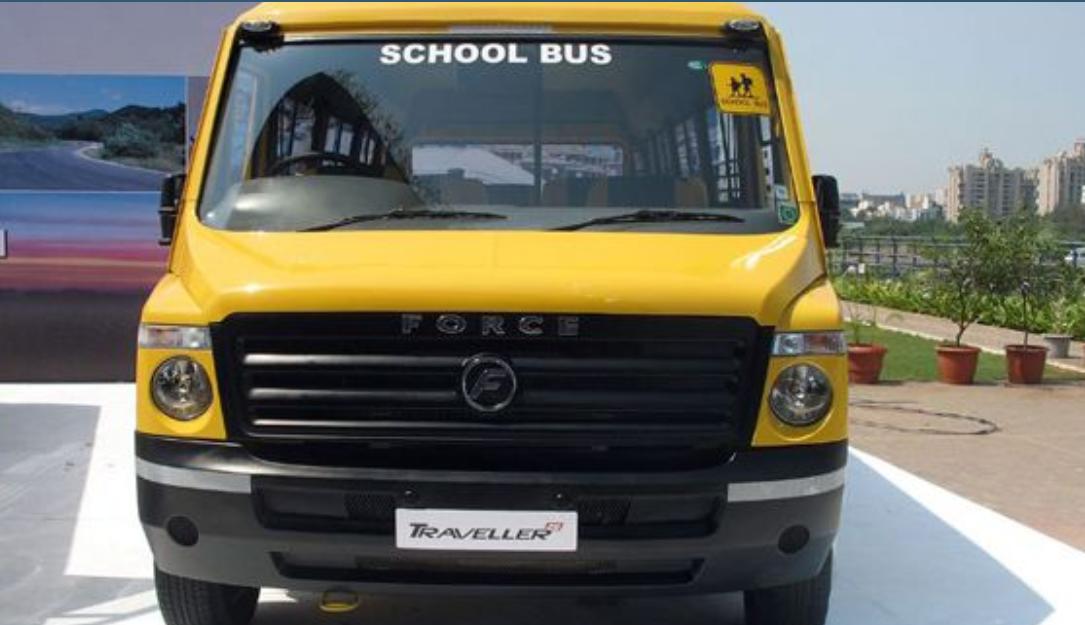

Force Traveller School Bus 3050 WB 2025 – Compact School Bus
Specifications
|
Specification |
Details |
|
Engine |
FM 2.6 CR ED, 2.6L, 4-cylinder, turbocharged diesel, BS6-compliant |
|
Power |
115 bhp @ 2950 rpm |
|
Torque |
350 Nm @ 1400–2200 rpm |
|
Transmission |
5-speed manual (G32-5 synchromesh) + 1 reverse |
|
Brakes |
Front: Disc, Rear: Drum, hydraulic dual-circuit with ABS and EBD |
|
Suspension |
Front: Semi-elliptical leaf springs with hydraulic telescopic shock absorbers and anti-roll bar, Rear: Semi-elliptical leaf springs with hydraulic telescopic shock absorbers (anti-roll bar optional) |
|
Dimensions (LxWxH) |
5135 x 1900 x 2550 mm |
|
Wheelbase |
3050 mm |
|
Ground Clearance |
200 mm |
|
Fuel Tank Capacity |
70 L |
|
Mileage |
17 kmpl (claimed) |
|
Price (Ex-Showroom, India) |
₹9.69–13.84 Lakh(Year-2025) |
|
Gross Vehicle Weight (GVW) |
3675 kg |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Monocoque construction |
|
Drivetrain |
Rear-wheel drive (RWD) |
|
Turning Radius |
6.0 m |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Semi-elliptical leaf springs with hydraulic telescopic shock absorbers and anti-roll bar |
|
Rear Suspension |
Semi-elliptical leaf springs with hydraulic telescopic shock absorbers (anti-roll bar optional) |
|
Front Brake |
Disc with ABS and EBD |
|
Rear Brake |
Drum with ABS and EBD |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
15-inch steel wheels |
|
Tyres |
215/75 R15, radial tubeless |
Components & Features
|
Specification |
Details |
|
Seating Capacity |
12+D, 15+D (depending on configuration) |
|
Infotainment |
Optional music system with speakers |
|
Instrument Cluster |
Analog with multi-information display |
|
Features |
Power steering, manual AC, reclining seats, large windows, low footsteps, sliding doors, non-slip flooring, driver partition, chin guard, grab handles |
|
Safety Features |
ABS with EBD, fire alarm protection system, seat belts for all passengers, side-impact beams, first-aid kit, speed limiter (80 kmph), large internal rear-view mirror |
Available Colors
|
Specification |
Details |
|
Colors |
Yellow (standard school bus color) |
