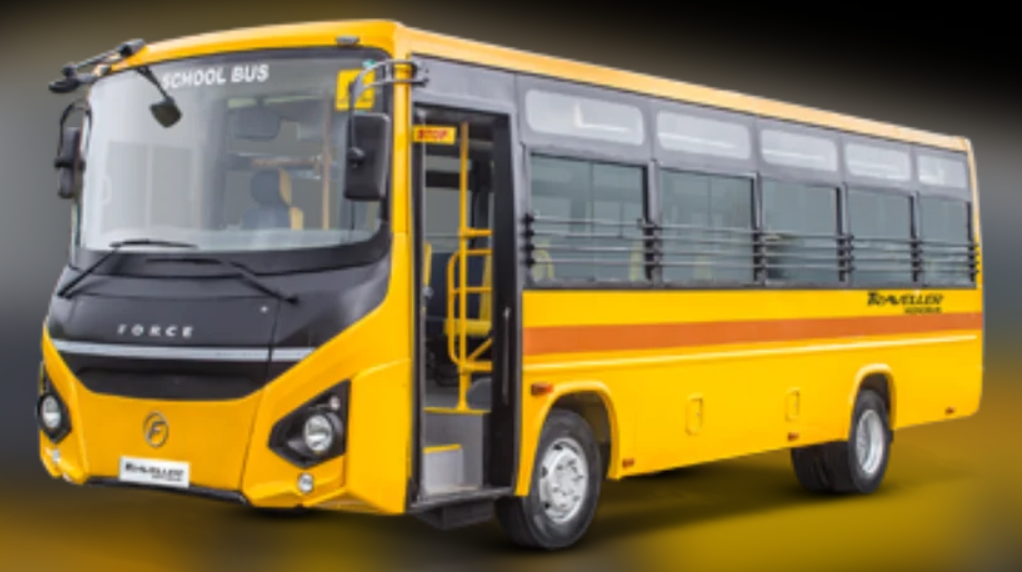

Force Traveller Monobus SWB School Bus 2025 – Compact School Bus
Specifications
|
Specification |
Details |
|
Engine |
FM 2.6 CR ED, 2.6L, 4-cylinder, diesel, BS6-compliant |
|
Power |
115 bhp @ 2950 rpm |
|
Torque |
350 Nm @ 1400–2200 rpm |
|
Transmission |
5-speed manual, G35/5 synchromesh, 5 forward + 1 reverse |
|
Brakes |
Front: Disc, Rear: Disc, dual-circuit hydraulic with ABS, EBD, and auto slack adjuster |
|
Suspension |
Front: Parabolic leaf springs with hydraulic shock absorbers, Rear: Parabolic leaf springs with hydraulic shock absorbers |
|
Dimensions (LxWxH) |
~6000 x 2080 x 2600 mm (estimated, based on shorter wheelbase) |
|
Wheelbase |
~3350 mm (estimated, typical SWB for Force Traveller platform) |
|
Ground Clearance |
190 mm (estimated) |
|
Fuel Tank Capacity |
120 L (Diesel) |
|
Mileage |
Not registered (likely ~10–12 kmpl, based on LWB trends) |
|
Price (Ex-Showroom, India) |
Not available (estimated ~₹14–15 Lakh, contact dealer for pricing) (Year-2025) |
|
Gross Vehicle Weight (GVW) |
~4500 kg (estimated, based on reduced seating) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Lightweight monocoque body |
|
Drivetrain |
Rear-wheel drive (RWD), 4x2 |
|
Turning Radius |
~6.5 m (estimated) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf springs with hydraulic shock absorbers |
|
Rear Suspension |
Parabolic leaf springs with hydraulic shock absorbers |
|
Front Brake |
Disc brakes with ABS, EBD, and auto slack adjuster |
|
Rear Brake |
Disc brakes with ABS, EBD, and auto slack adjuster |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
16-inch steel wheels |
|
Tyres |
215/75 R16, radial tubeless |
Components & Features
|
Specification |
Details |
|
Seating Capacity |
~25+D (estimated, 2+2 or 2+3 school bus layout) |
|
Infotainment |
Optional music system with speakers |
|
Instrument Cluster |
Analog with multi-information display |
|
Features |

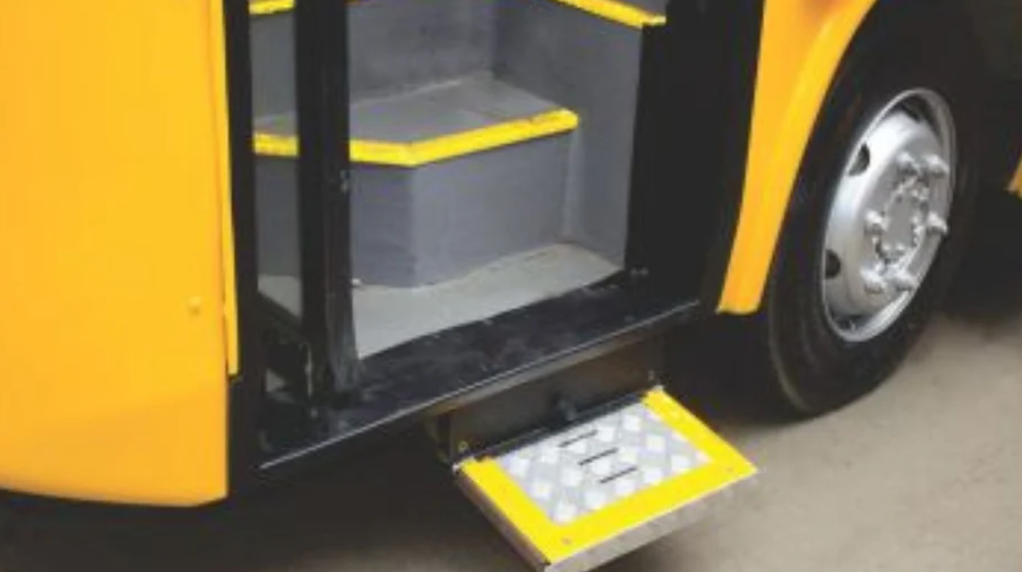

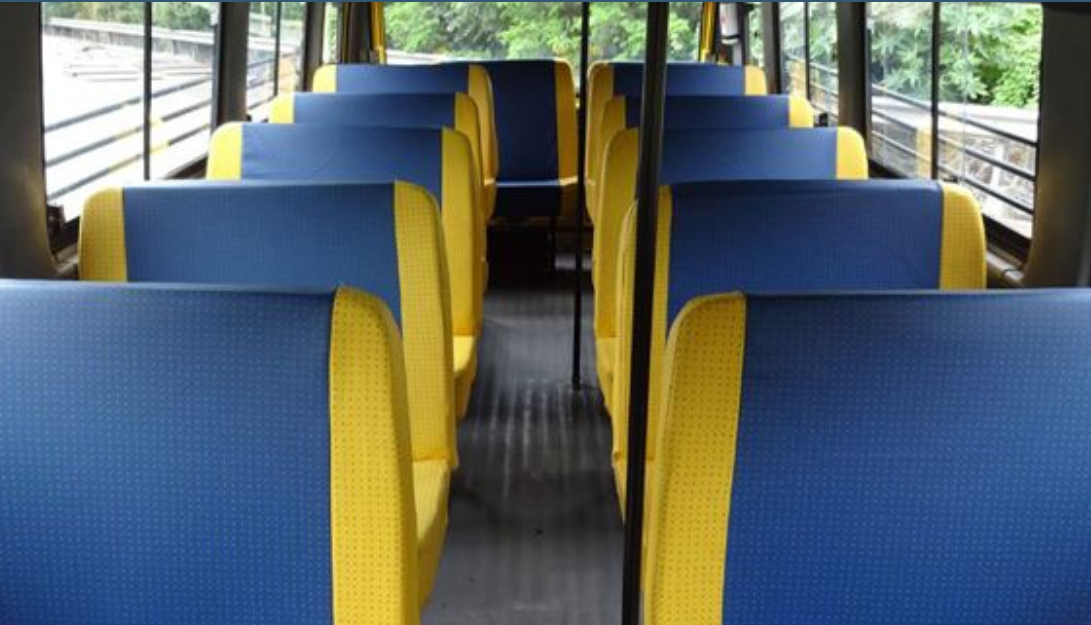

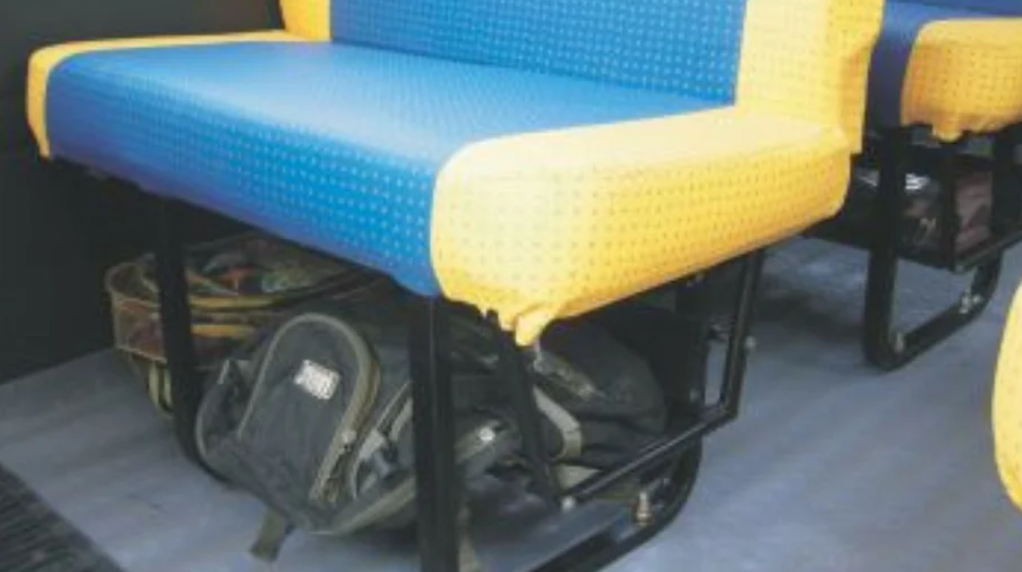

Wide and comfortable seats, low footstep, handrail, large windows, driver partition, non-slip flooring, chin guard, grab handles, rack for school bags, manual AC (optional) |
|
Safety |
ABS with EBD, fire alarm system, 3-point seat belts for all seats, side-impact beams, first-aid kit, fire extinguisher, speed limiter (80 kmph), child bus tracker, large internal rear-view mirror |
Colors Available
|
Specification |
Details |
|
Colors |
Yellow (standard school bus) |
