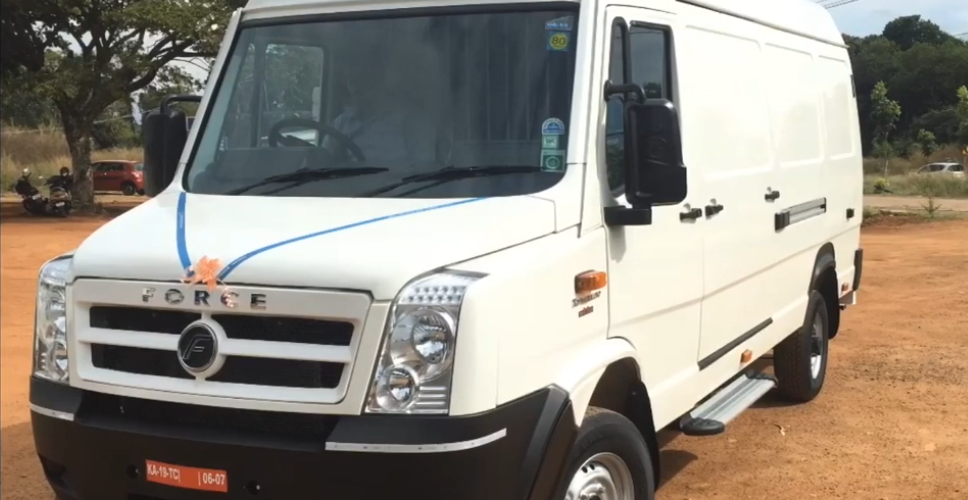

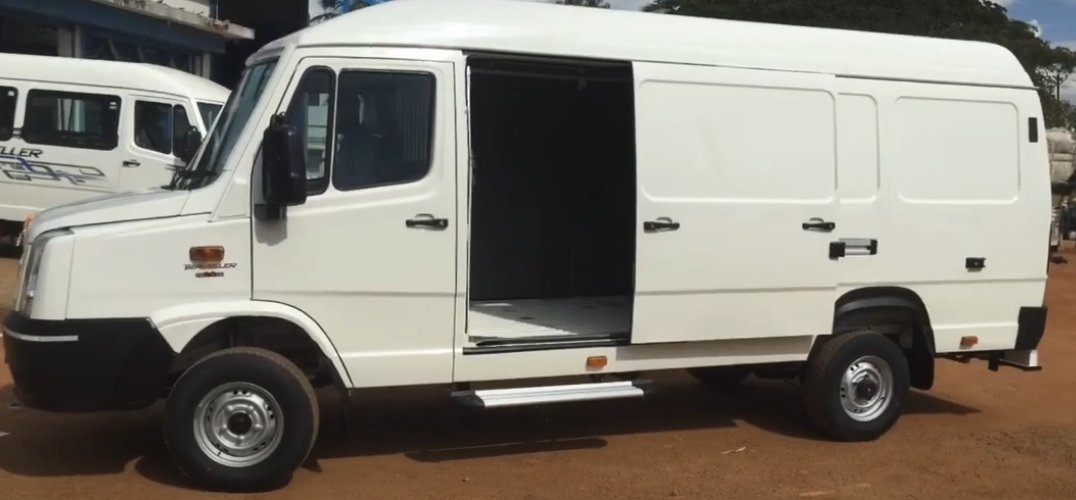

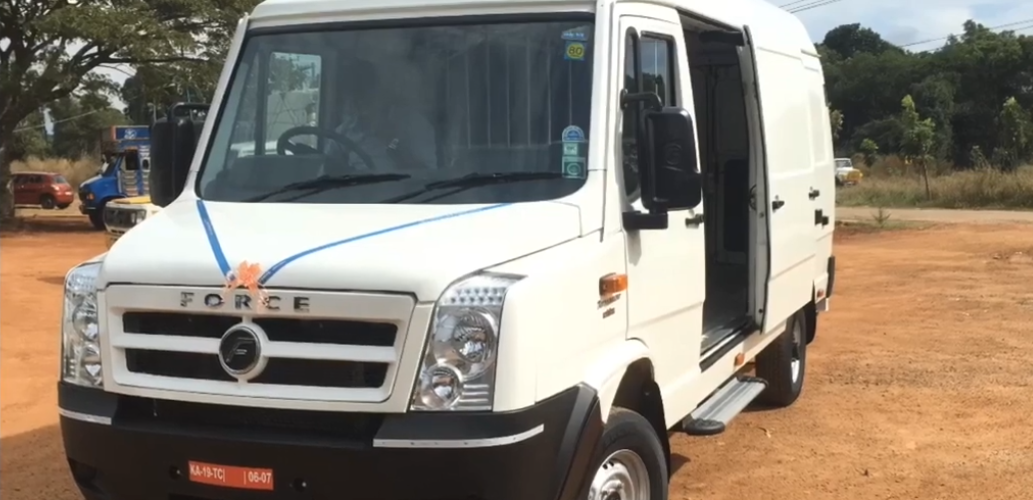

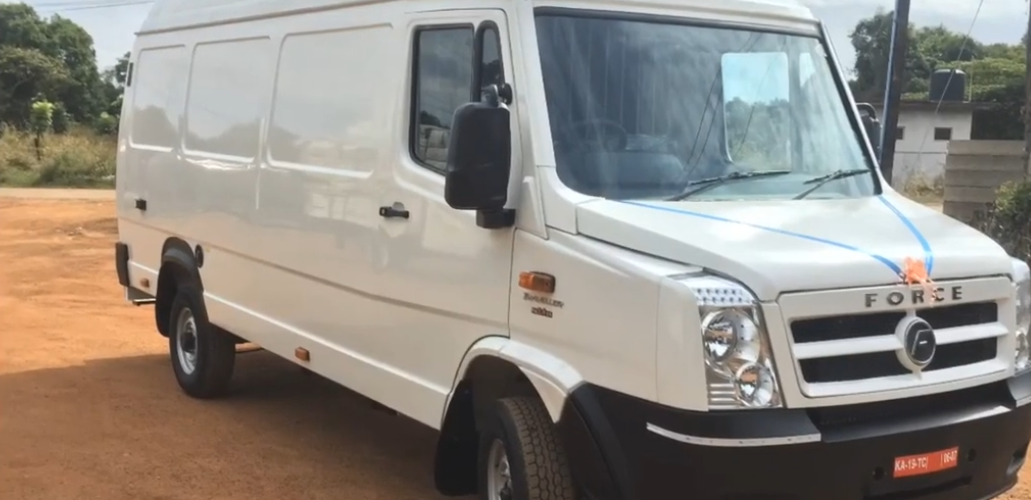

Force Traveller Delivery Van 4020 WB 2025 – Commercial Cargo Van
Specifications
|
Specification |
Details |
|
Engine |
FM2.6CR ED, 4-cylinder, turbocharged, BS-VI diesel with common rail |
|
Power |
115 hp (85 kW) @ 2950 rpm |
|
Torque |
350 Nm @ 1400–2200 rpm |
|
Transmission |
5-speed manual, synchromesh (G32-5, 5 forward + 1 reverse) |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit hydraulic, vacuum-assisted with ABS and EBD; Front: Disc; Rear: Drum |
|
Suspension |
Front: Semi-elliptical leaf springs with hydraulic shock absorbers and anti-roll bar; Rear: Semi-elliptical leaf springs with hydraulic shock absorbers |
|
Wheel Size |
215/75 R15 |
|
Tyres |
215/75 R15 (tubeless radial) |
|
Weight |
4530 kg (GVW); ~2730 kg (kerb, chassis only) |
|
Dimensions (LxWxH) |
6770 x 1900 x 2550 mm (fully built) |
|
Wheelbase |
4020 mm |
|
Ground Clearance |
200 mm (unladen) |
|
Fuel Tank Capacity |
70 L |
|
Mileage |
~11 km/L (real-world, varies with load) |
|
Price (Ex-Showroom, Delhi) |
₹16.64–19.40 Lakh(Year-2025) |
|
Price (On-Road, Delhi) |
₹18.50–22.00 Lakh (estimated) (Year-2025) |
|
Payload Capacity |
~1800 kg |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Monocoque body with high-strength steel |
|
Engine Type |
FM2.6CR ED, 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Synchromesh, single dry plate, hydraulically actuated |
|
Gearbox |
5-speed manual, synchromesh (5 forward + 1 reverse) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Semi-elliptical leaf springs with hydraulic telescopic shock absorbers and anti-roll bar |
|
Rear Suspension |
Semi-elliptical leaf springs with hydraulic telescopic shock absorbers |
|
Front Brake |
Disc brakes |
|
Rear Brake |
Drum brakes with mechanical parking brake |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Steel wheels |
|
Tyres |
215/75 R15 (tubeless radial) |
|
Wheel Size |
215/75 R15 |
Components & Features
|
Specification |
Details |
|
Seat |
Driver + co-driver, adjustable driver seat |
|
Handlebar |
Power steering, adjustable tilt |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Power steering, ABS with EBD, monocoque body, CED primer with robotic top-coat, optional AC, sliding doors (driver/co-driver), 270° rear door, optional vehicle tracking system |
|
Safety Features |
ABS, EBD, seat belts, auto slack adjusters, reinforced cabin, optional live tracking and surveillance |
Available Colors
|
Specification |
Details |
|
Colors |
White, Silver, Blue (customizable per fleet requirements) |
