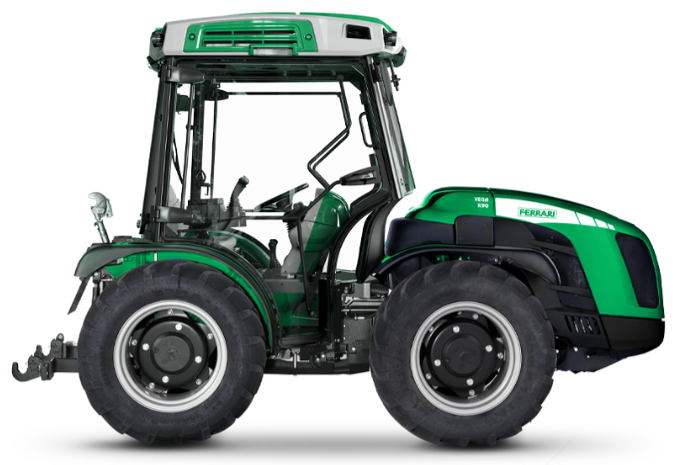

Ferrari Vega K90 DUALSTEER T4 – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Vega K90 DUALSTEER T4 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

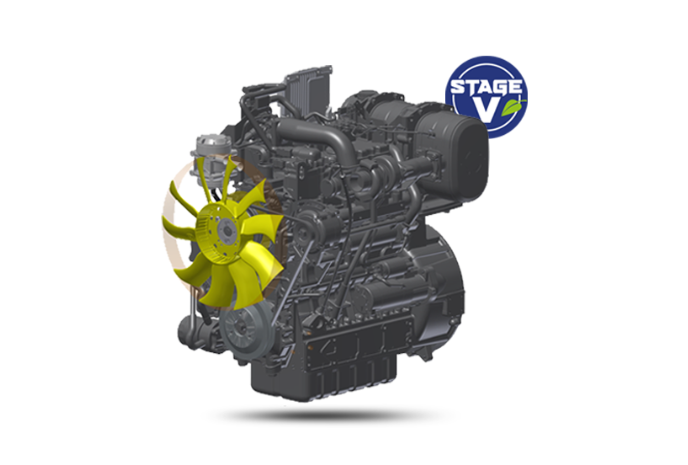

Kubota V3800-CR-T-EW03, Diesel common rail direct injection, Turbo, 4 cylinders, 3769 cc, Liquid cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
32-speed synchronised gearbox: 16 FWD and 16 REV with synchronised reverser |
|
Clutch |
Multidisc in oil bath electronically-managed and proportional hydraulic control with PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging integral chassis (±15°) OS-FRAME with central articulation and steering wheels |
|
Braking System |
Oil bath discs with hydrostatic control, acting on the four wheels with automatic engagement of 4-wheel drive, Independent manoeuvring brakes acting on the rear wheels |
|
Differential Lock |
Front and rear, simultaneous or rear only with electro-hydraulic control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
340/65R18, 280/70R18, 280/70R18 Garden, 320/65R18, 9.50-20 (250/85R20), 300/70R20, 300/70R20 Garden, 320/70R20, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the gearbox and synchronised with forwarding speed, Negative safety hydraulic brake, 540/540E (optional: 540/1000) RPM |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Flow rate to power steering and electro-hydraulic controls 33.1 l/min, Flow rate to lift and control valves 27.7 l/min (optional oversized pump 49 l/min), Maximum hydraulic pressure 180 bar |
|
Rear Lift |
By two external cylinders, Standard: Up/down lift, Optional: Position and draft-controlled, Ball joint lifting capacity 2300 kg |
|
Front Lift |
Optional, Two-cylinder, complete with front bumper and 4 front hydraulic outlets (replicated from the rear), Rigid with quick-couplings cat. 1, Lifting capacity 800 kg |
|
Steering |
Double steering system Dualsteer® with 4-cylinder, Hydrostatic steering acting on front wheels and central joint, Flow deviator for steering unit |
|
Electrical System |
Battery: 80 Ah / 12 V, Alternator: 95 A, Standard equipment: Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, two USB sockets on the dashboard, rear 7-pin and 3-pin sockets |
|
Weight |
With roll-bar: 2450 kg, With cabin: 2580 kg |
|
Ground Clearance |
161-271 mm |
|
Wheelbase |
1348 mm |
|
Width |
1291-1961 mm |
