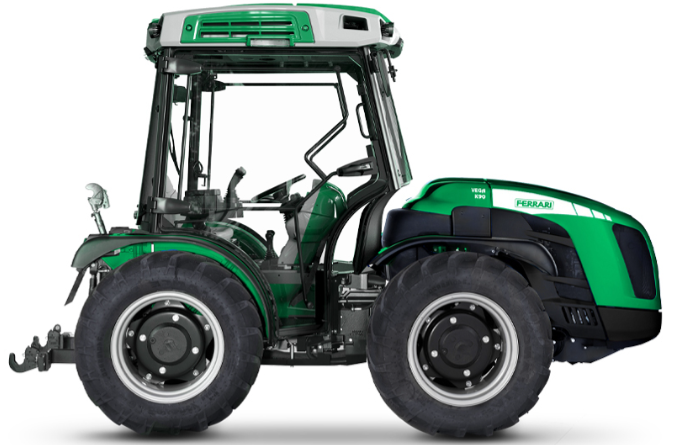

Ferrari Vega K90 AR – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Vega K90 AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, Diesel Common Rail Direct Injection, Turbo, 4 Cylinders, 3769 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath, Electronically-Managed with Proportional Hydraulic Control, PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic Engagement of 4-Wheel Drive |
|
Differential Lock |
Front and Rear, Simultaneous or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 250/85R20 (9.50-20), 300/70R20, 300/70R20 Garden, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x12.50-15 XTC, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 33.1 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
Standard: Up/Down Lift with Two External Cylinders, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two-Cylinder, Complete with Front Bumper and 4 Front Hydraulic Outlets (Replicated from Rear), Rigid with Quick-Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Joystick with Ergonomic Grip for Rear Lift (and Front Lift if Present) and Rear Control Valves: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 4 Double-Acting, 1 Double-Acting with Float, Additional 3/8" Free Flow Oil Return (Total 13 Hydraulic Outlets), Potentiometer for Hydraulic Flow Adjustment, 49 l/min Oversized Pump, Remote PTO Engagement Control, Storage Armrest |
|
Steering |
Hydrostatic Steering Acting on the Central Joint, Flow Deviator for Steering Unit |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Two USB Sockets on Dashboard, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2300 kg (Roll-Bar), 2450 kg (Cabin) |
|
Cab Options |
Optional VISTA PRO Model, Pressurised and Category 4 Approved (Activated Carbon Filters Required), Soundproof, Four-Post Monocoque Frame with Conical Profile on Silent Blocks, Fully Glazed Doors, Cloth Seat, A/C, Ventilation and Heating System, Dust Filters Category 2, USB Bluetooth Car Radio with Handsfree, Two USB Sockets, LED Work Lights on Four Sides (Total 10 Lights), LED Beacon Lamp, Optional Activated Carbon Filters for Category 4 |
|
Ground Clearance |
161-271 mm |
|
Wheelbase |
1495 mm |
|
Width |
1127-1603 mm |
