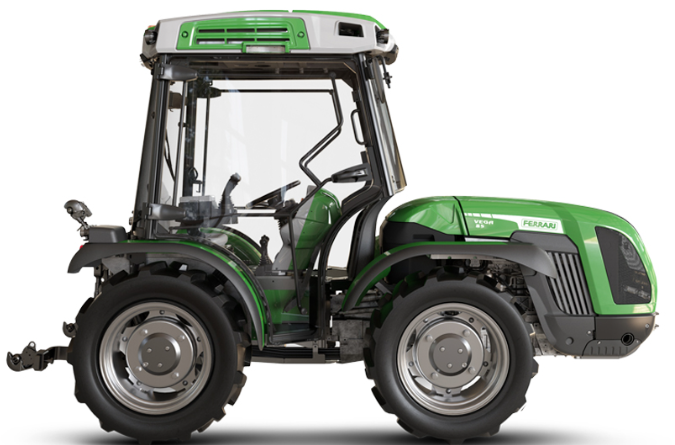

Ferrari Vega 85 RS – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Vega 85 RS (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, Diesel Common Rail Direct Injection, Turbo Intercooler, 4 Cylinders, 16 Valves, 2482 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Electronically-Managed and Proportional Hydraulic Control, Power Clutch System Button, PRO-ACT System with Easy Plus™ Assisted Engagement, Smart Brake & Go Function |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic Engagement of 4-Wheel Drive, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear, Simultaneous or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
340/65R18, 280/70R18, 280/70R18 Garden, 320/65R18, 9.50-20 (250/85R20), 300/70R20, 300/70R20 Garden, 320/70R20, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 33.5 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 29.5 l/min (Optional Oversized Pump 51 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
Standard: Up/Down Lift with Two External Cylinders, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two-Cylinder, Complete with Front Bumper and 4 Front Hydraulic Outlets (Replicated from Rear), Rigid with Quick-Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Joystick with Ergonomic Grip for Rear Lift (and Front Lift if Present) and Rear Control Valves: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 4 Double-Acting and 1 Double-Acting with Float (Total 13 Hydraulic Outlets), Additional 3/8" Free Flow Oil Return, Potentiometer for Hydraulic Flow Adjustment, 51 l/min Oversized Pump, Remote PTO Engagement Control, Storage Armrest |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels, Flow Deviator for Steering Unit |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Two USB Sockets on Dashboard, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2320 kg (Roll-Bar), 2470 kg (Cabin) |
|
Cab Options |
VISTA PRO: Pressurised, Category 4 Approved (Activated Carbon Filters Required), Soundproof, Four-Post Monocoque Frame with Conical Profile on Silent Blocks, Fully Glazed Doors, Cloth Seat, A/C, Ventilation and Heating System, Dust Filters Category 2, USB Bluetooth Car Radio with Handsfree, Two USB Sockets, LED Work Lights (10 Total), LED Beacon Lamp, Optional Activated Carbon Filters; SPACE CLIMA: Homologated, Soundproof, Six-Post Monocoque Frame on Silent Blocks, Fully Glazed Doors, Cloth Seat, LED Beacon Lamp, Rear Lights, A/C, Ventilation and Heating System, Car Radio Preparation, Optional Activated Carbon Filters |
|
Ground Clearance |
161-271 mm |
|
Wheelbase |
1495 mm |
|
Width |
1291-1961 mm |
